117 2.0mm thermal broken integrated outward opening window

Product structure analysis

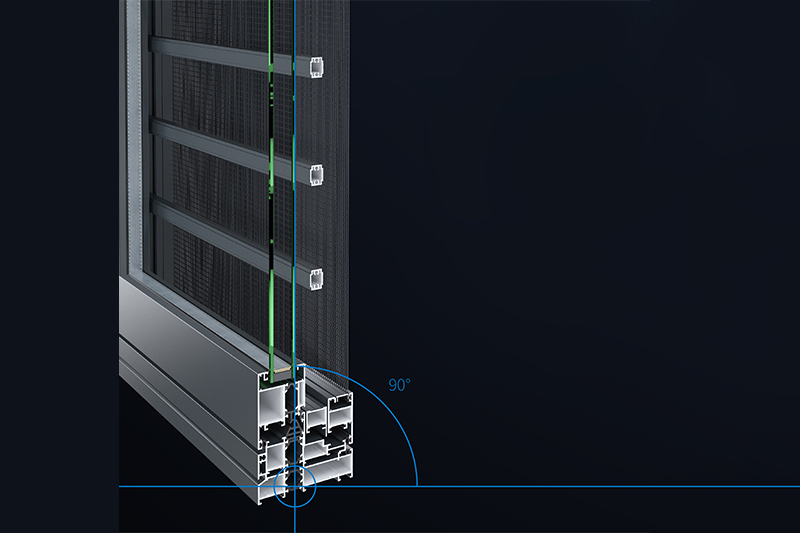

Scientific design of vertical isotherm structure

■ Vertical isotherm can effectively reduce the efficiency of indoor and outdoor heat exchange.
■ It is more environmentally friendly and energy-saving, and effectively improves the thermal insulation performance of doors and windows.

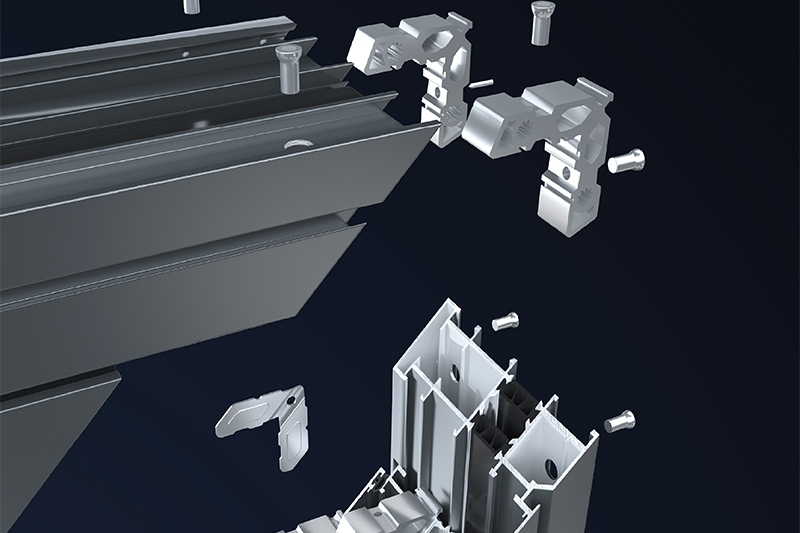

Multi-injection, tight connection

■ It adopts double injection of group corner and corner code injection structure + Zhongting injection structure, which has superior sealing and waterproof performance.
■ Double protection, keep the room dry and clean at all times.

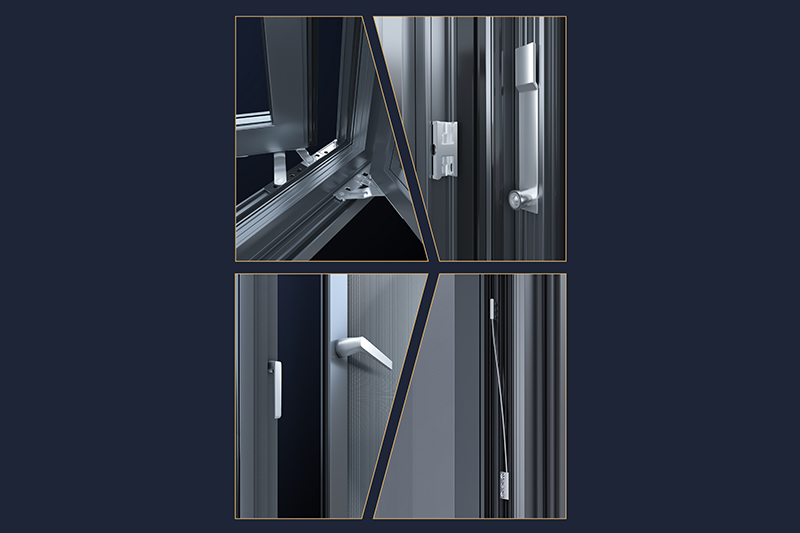

Standard notch and multi-functional design

■ The standard European standard groove design is highly compatible with major brands of hardware systems, with superior anti-theft performance, high matching degree and strong flexibility, which can perfectly realize various opening forms such as casement windows, upper hanging windows, and casement doors.

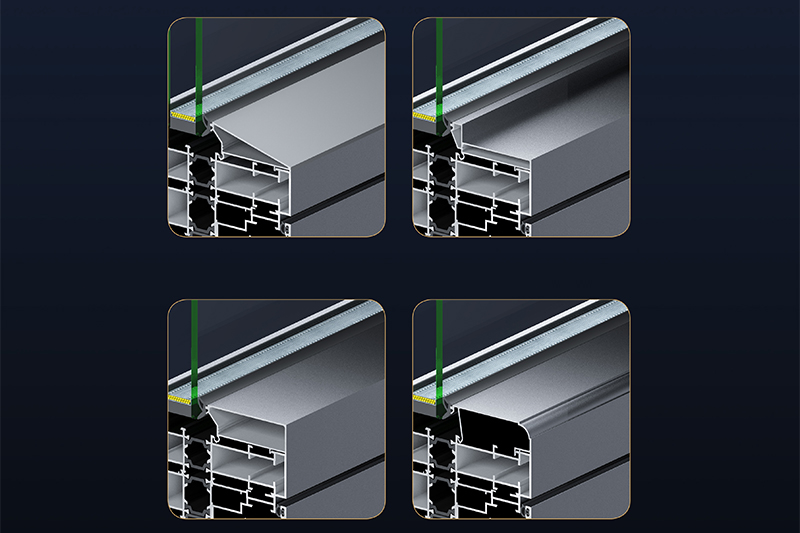

Crimping glue-free process

■ A variety of contour crimping options, to meet different decoration styles of crimping closed cavity design, good strength without deformation, smoother assembly without gluing process, convenient installation, beautiful details, more efficient construction.

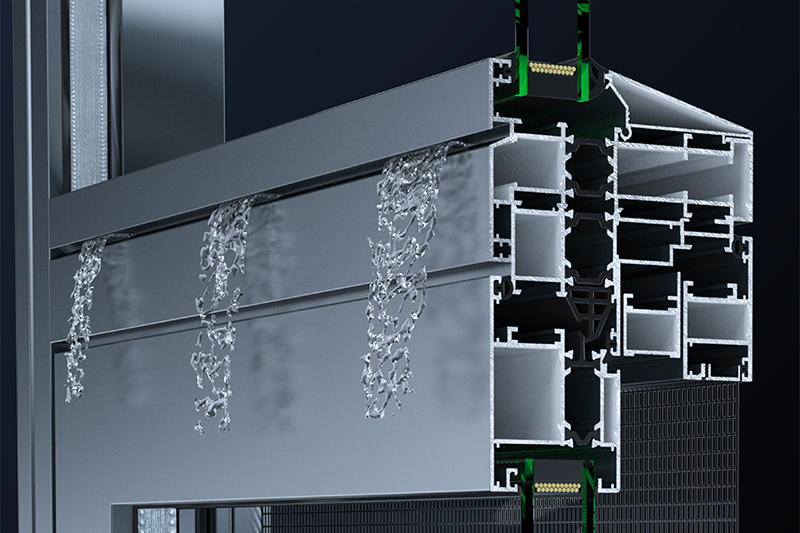

Concealed drainage design

■ Smooth drainage and beautiful appearance.

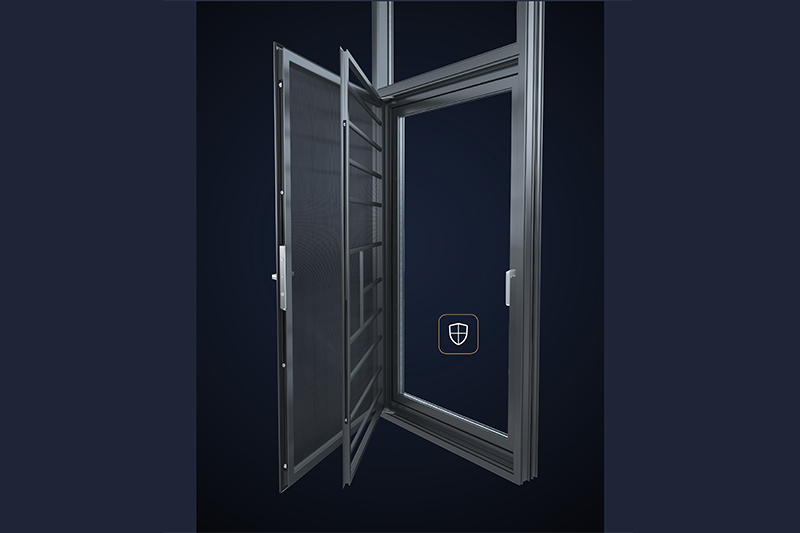

The gold steel mesh folding process doubles the stability1

Safe opening of the protective fence double-sided seven-figure high handle

■ The overall arrangement of glass fans, protective fences and gauze fans is clearly layered and the appearance is simple, and the glass fans and gauze fans can be adapted to high handles, which makes the feel more comfortable and more perfect.

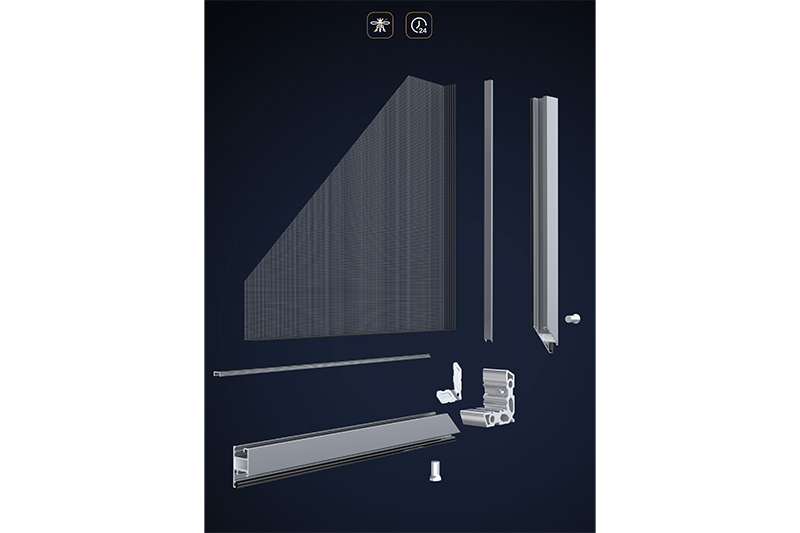

The gold steel mesh folding process doubles the stability

■ The 1.6mm wall thickness design of the yarn fan is designed with hemming and glue injection to enhance the tightness of the mesh and the rigidity of the yarn fan.

Product parameters

Thickness	2.0mm
Width of frame	117mm
Sash	75mm
Fly screen	53mm
Insulating glass	5+27A+5
The thickness of profile	2.0mm, the XS original ecological aluminium T5-6063A
Surface treatment	Imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection).
Standard accessories	with a complete set of American brand Cmech full system, handle without a base.
Standard glass	with Xinyi brand insulating tempered glass 5+27A+5, to fix both the inner and outer side of the glass without glue
Sealing strip	EPDM sealing.
Production process	both the main frame and the sash adopt the glue corner brace processing, flat frame for inner and outer side, hidden drainage.
Glass crimping	have bevel edge crimping, circular are crimping and stairs crimping for choice
Insulating strip	PA66 Nylon insulation, all the thermal insulation strips are designed on the same isotherm.
Applicable places	self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies.
