118 thermal broken side press horizontal moving window

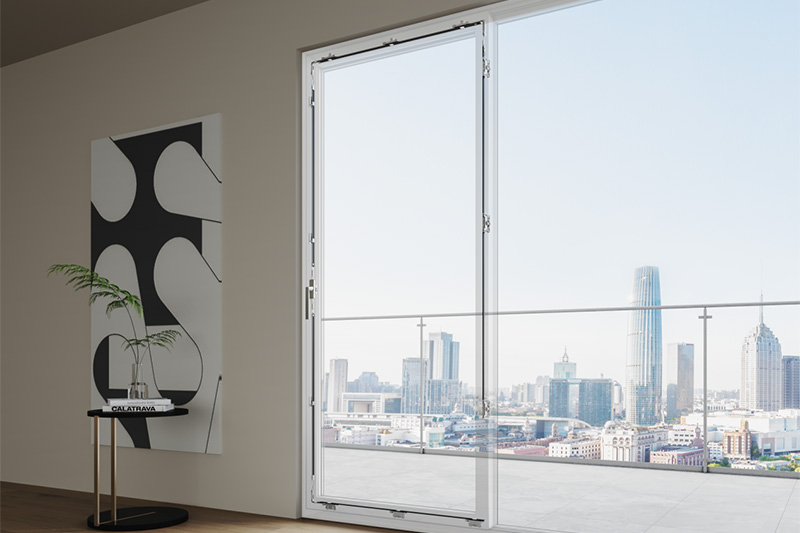

■ 118 thermal broken side press horizontal moving window has the same functionality as conventional outward-opening windows, and with integrated window screens, protective fences are installed to effectively prevent accidents and enhance security. Additionally, it provides a better view and ventilation compared to outward-opening windows.

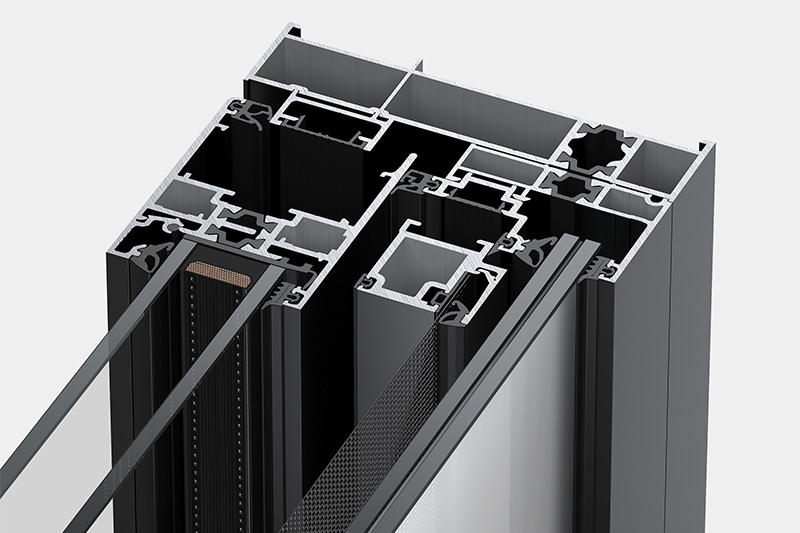

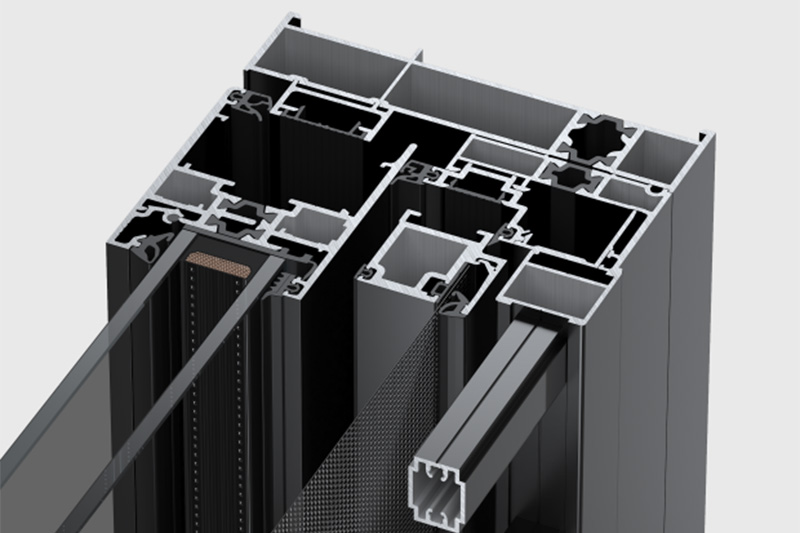

■ The new frame design of 118 thermal broken side press horizontal moving window is based on unified profiles and integrated functions. The glass guardrail is clamped in the groove of the outer frame, reserving a ventilation gap at the bottom of the glass plate. This design ensures smooth ventilation at the bottom of the guardrail without increasing the visible surface of the large material.

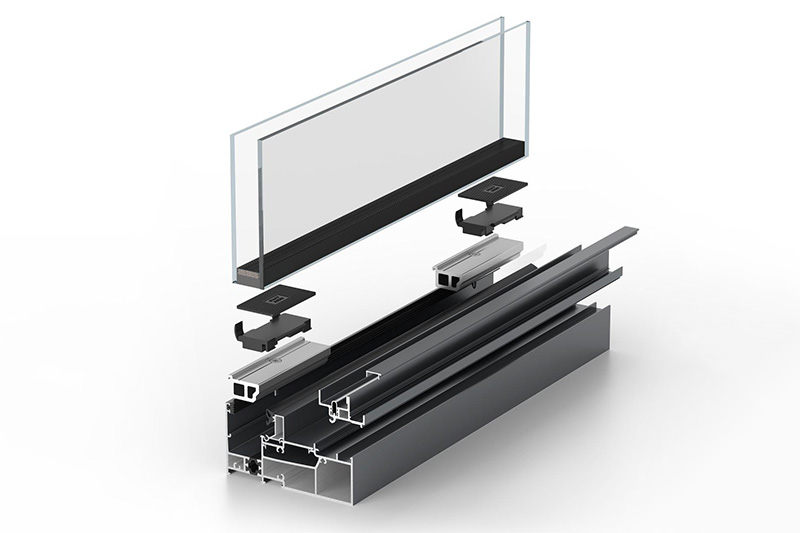

■ The detachable inner rail profile and glass plate are consistent with the installation form of the conventional casement window, and the bottom of the nylon installation cushion block is equipped with high-strength aluminum alloy glass brackets, and the hook-shaped structure has a reinforcement function, which can reduce the deformation of the product and improve the bearing capacity of the track under the positive and negative wind pressure.

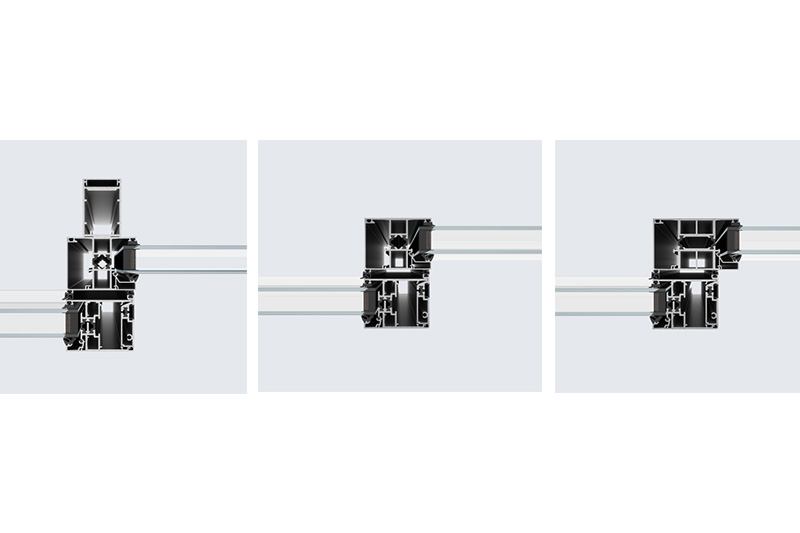

■ 118 thermal broken side press horizontal moving window offers a wide range of mullion extension profiles for projects with different strength requirements at very small structural depths. Optional 70 standard mullion, 70 standard mullion + 40 reinforcement (steel can be sleeved), 90 strengthened mullion.

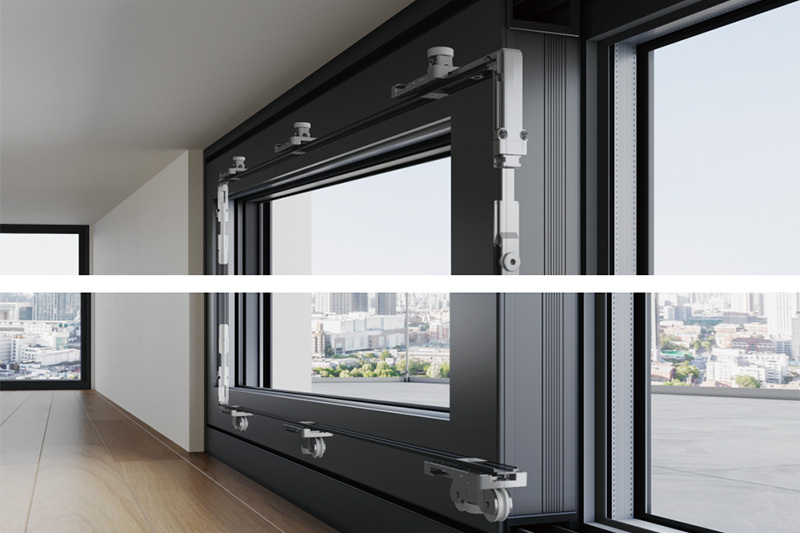

■ The improved offset plate greatly reduces the opening and closing forces, ensuring comfortable and simple operation for the user; The new power lock seat and adjustable mushroom-shaped lock head (light enterprise, hook enterprise) can easily adjust the compression strength of the window sash and sealing strip; The new anti-swing component of the upper wheel solves the problem of high fan swaying; The C-slot linkage simplifies the hardware configuration and installation process.

■ Thanks to the upgrade of the new hardware system, 118 thermal broken side press horizontal moving window is no longer constrained by the deployment of fittings and connecting rods, and the window design of Eurovision is more possible within the allowable load-bearing range (max250kg).
