120 system thermal broken sliding window.

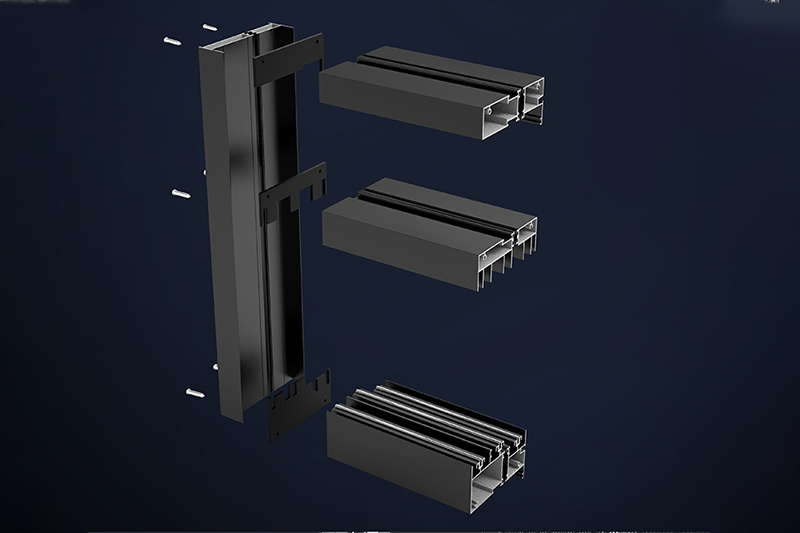

Product structure analysis

Commercial landscaping

The 65mm visible surface features a medium-narrow design that is highly favored by customers. Its lock offers broad adaptability, allowing it to be equipped with handrails, guardrails, and drying racks. This multifunctional design effectively meets diverse customer needs.

Exquisite craftsmanship

• Tight-fitting.
• The upper and lower rails are embedded in the frame, and the waterproof gasket is used for excellent waterproofing effect.

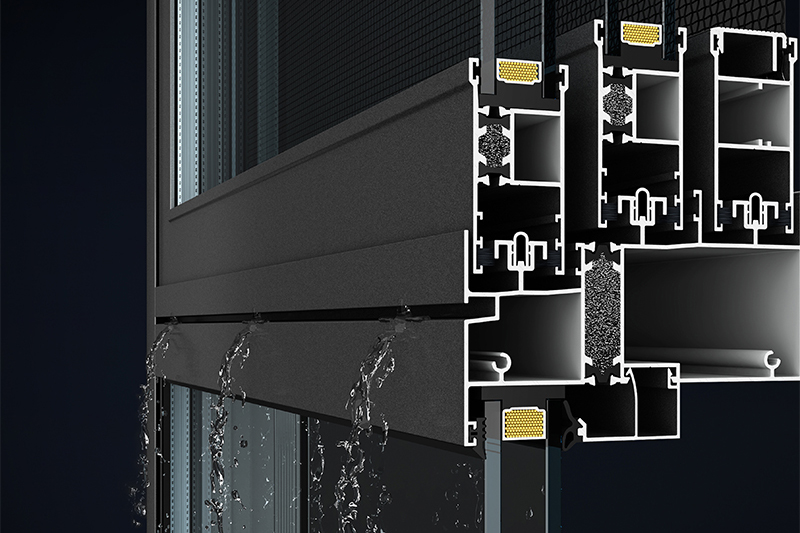

Hide drainage

• The thought about the rain is all in the details.
• The hidden drainage structure has an attractive appearance, and the stepped design not only facilitates rainwater discharge but also effectively prevents backflow.

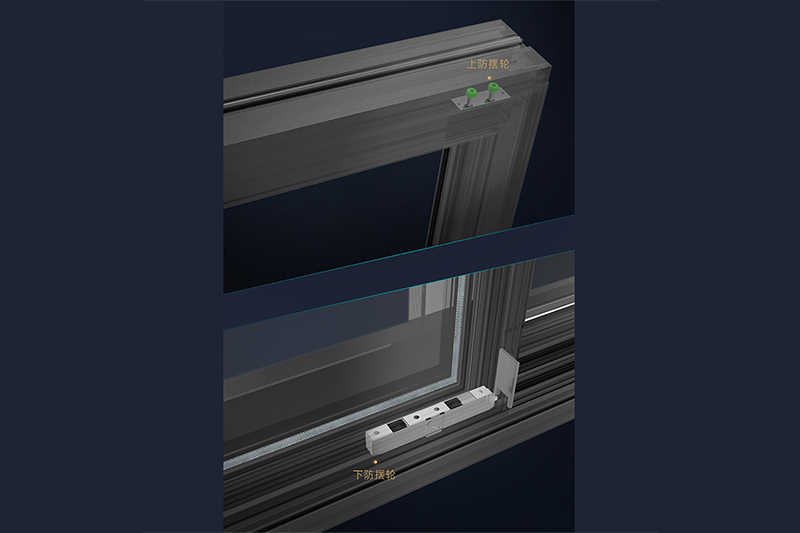

Smooth operation

• Push and pull is light and smooth
• The upper pulley and the lower pulley are light and smooth to push and pull, not easy to derail, and have a long service life

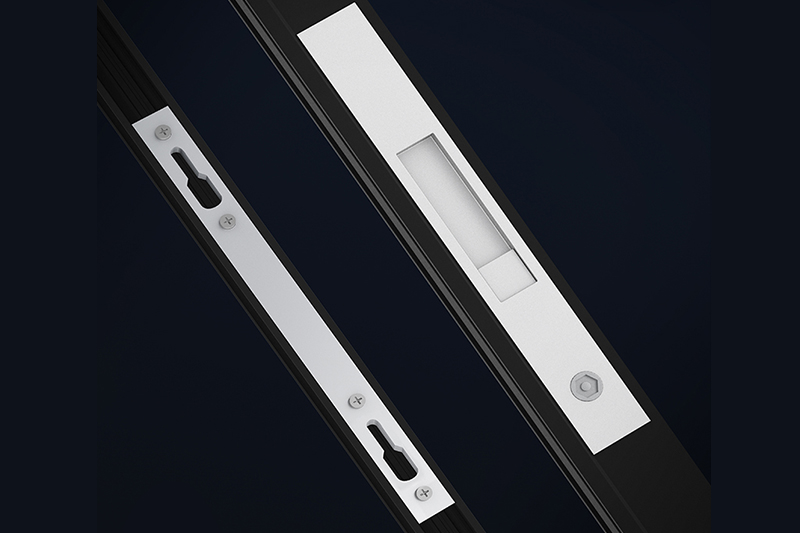

Custom hardware

• High-quality materials
• The details are fully revealed, featuring an exclusively customized one-word automatic lock for enhanced security and anti-theft protection. The industrial aesthetics within every square inch reflect a high-end texture of life

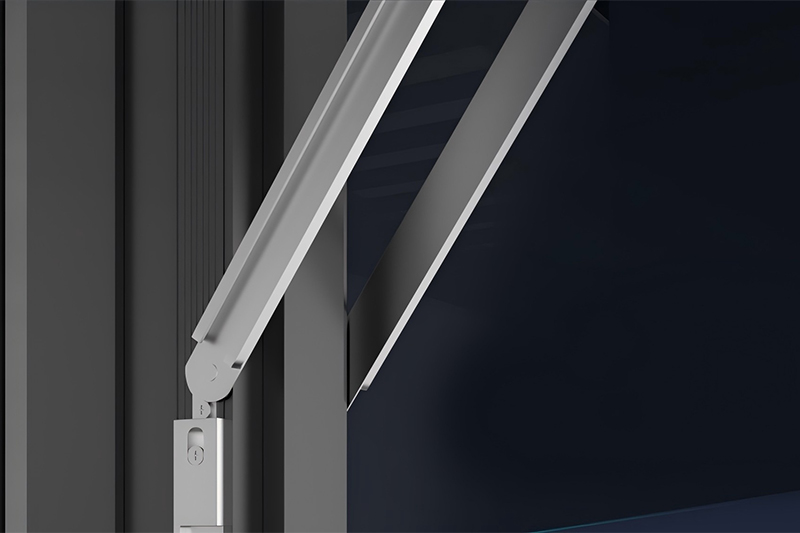

304 stainless steel hinge

• Super load-bearing
• Small body, large load-bearing and corrosion-resistant, smooth opening and closing, beautiful appearance.

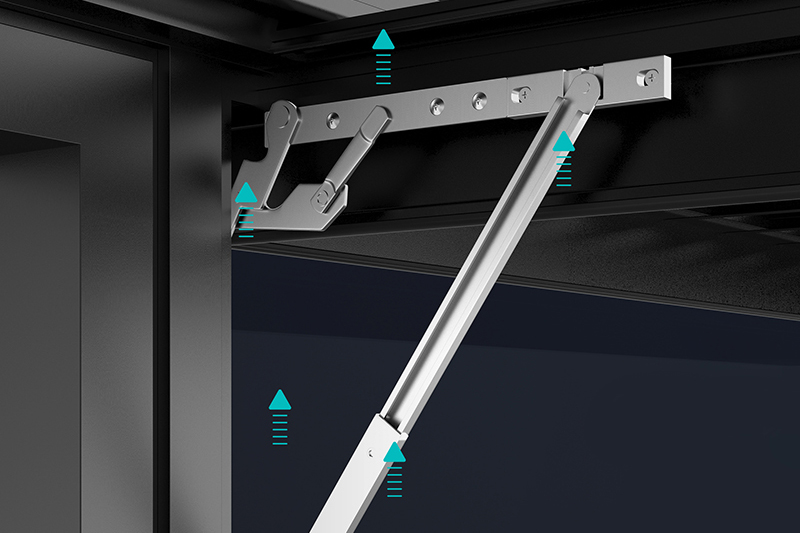

Convenient snap locking

• Simple and ingenious, it can be easily opened and closed under pressure
Child safety strip locks
Keyed design, more secure after closing

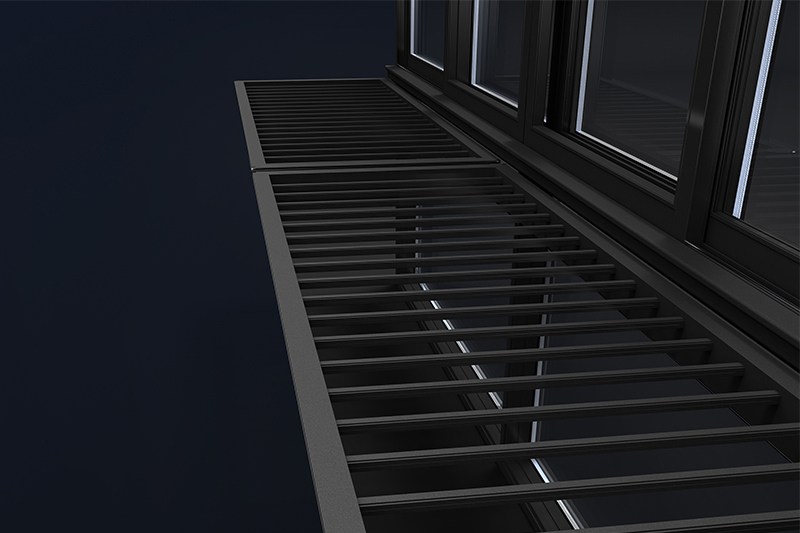

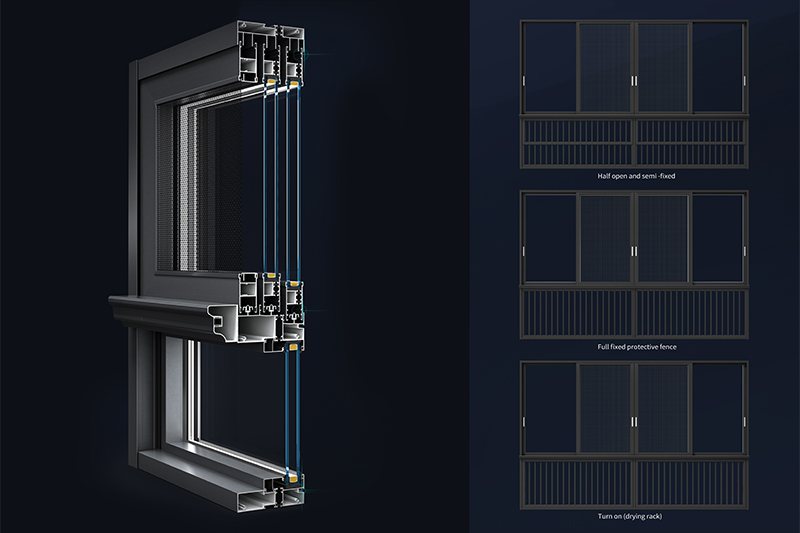

There are a variety of opening methods for the fence

• Half-open, half-fixed.
• Fully fixed.
• Full Open (Drying Rack).

Product parameters

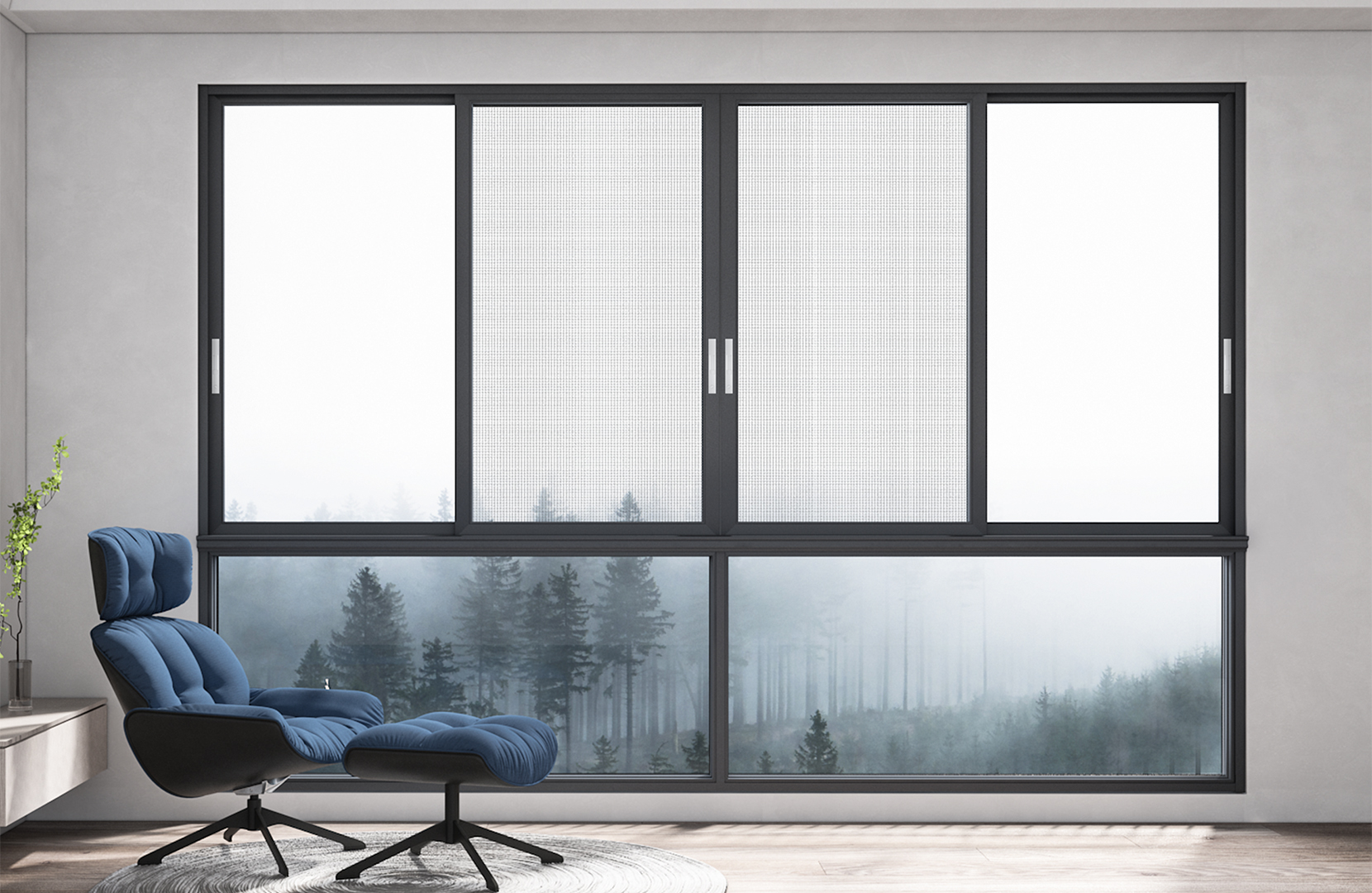

Ou Bao 120 system thermal broken sliding window_11

Thickness	1.4mm
Width of frame	120mm
Sash	65mm
Fly screen	65mm
Insulating glass	5+14A+5
The thickness of profile	1.4mm, the XS original ecological aluminium T5-6063A
Surface treatment	imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection).
Hardware accessories	standard set of CIVO automatic lock
Standard glass	with Xinyi brand insulating tempered glass 5+14A+5, to fix both the inner and outer side of the glass without glue
Sealing strip	EPDM sealing.
Production process	the inner sash adopts a 45-degrees angle, with a solid structure, hidden drainage, smooth drainage.
Glass crimping	with the fixed standard small square crimping, makes the line more beautiful.
Insulating strip	PA66 Nylon insulation, all the thermal insulation strips are designed on the same isotherm.
Applicable places	self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies.
