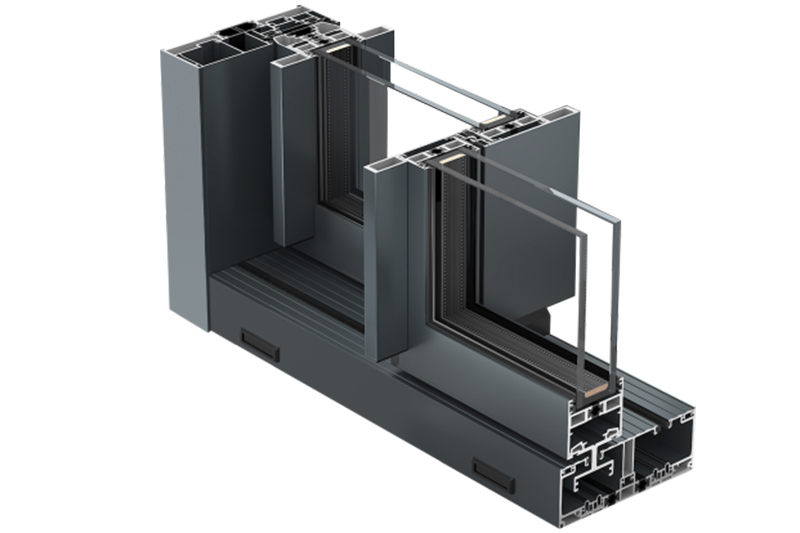

The recessed sealed frame with a fully concealed design makes the interior and exterior seamless

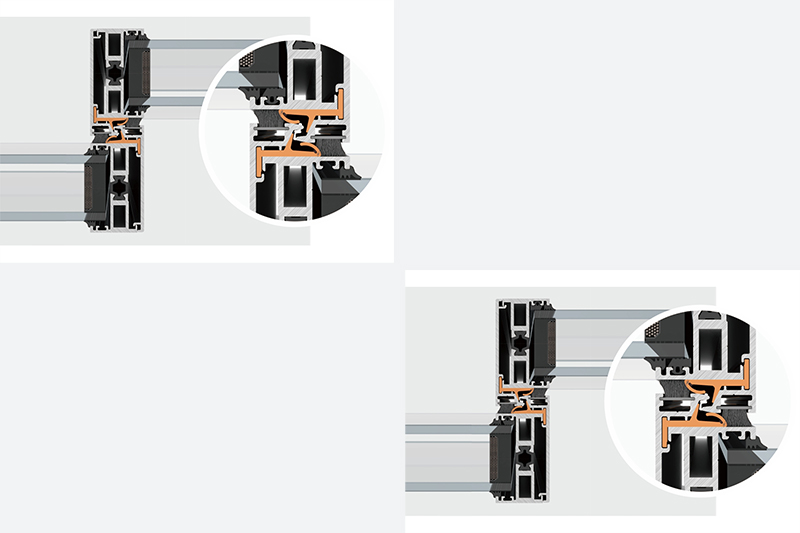

■ The locking hardware of the optical enterprise solution is on the frame side, and the locking hardware of the hidden optical enterprise solution is on the hook enterprise side, and the two solutions have sealing wool strips and central rubber strips, which not only provide the functionof limit collision prevention, but also play a complete air tightness and water tightness.
Aesthetics and fiber books coexist

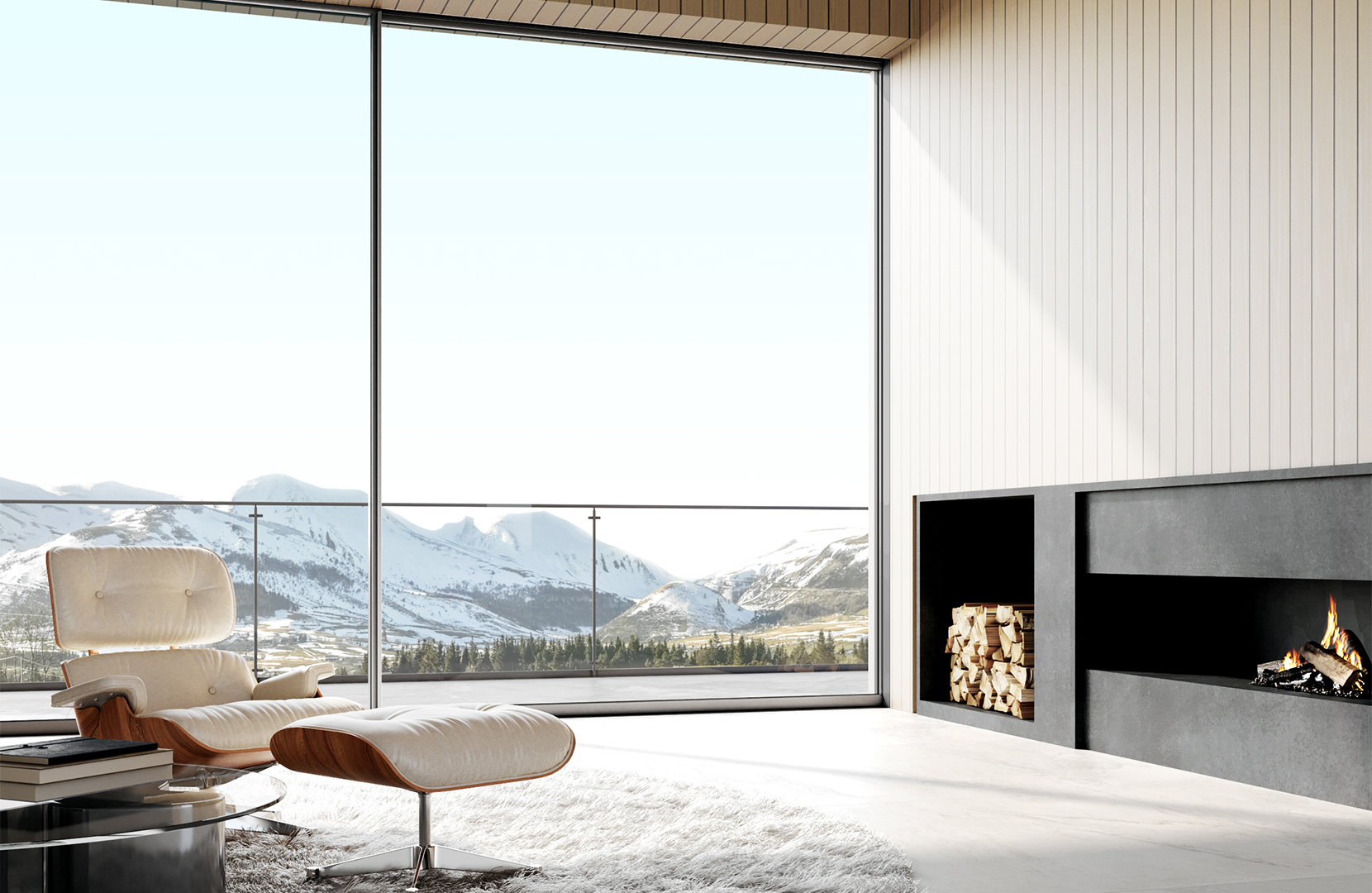

■ The framed visual surface of the panoramic door is completely hidden in the ceiling and floor, and the fixed and open doors are divided by extremely slim hooks.
Fully insulated and sealed design

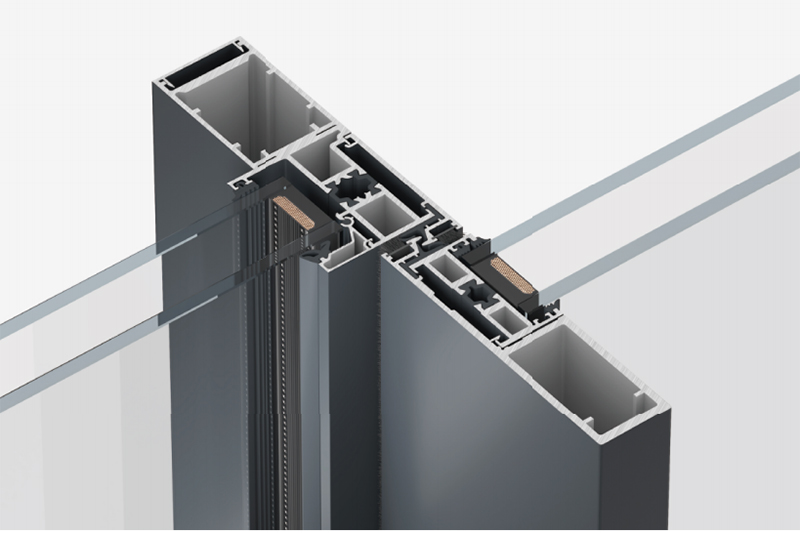

■ The slim internal sealing solution consists of a fully insulated hard-soft composite spacer and multiple tops. The new material of the partition has the attributes of anti-collision, heat insulation and sealing strip, and this novel design makes the hook part fit tightly.
Smoothly connect the inside and outside to extend the living space

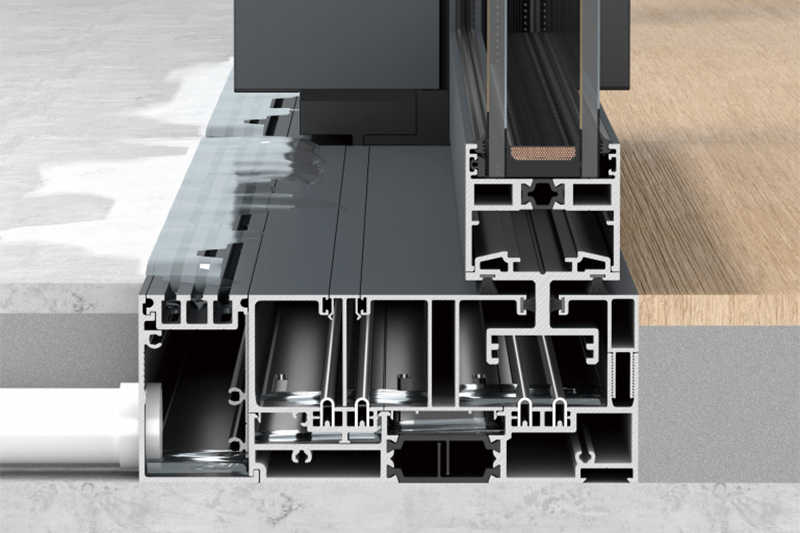

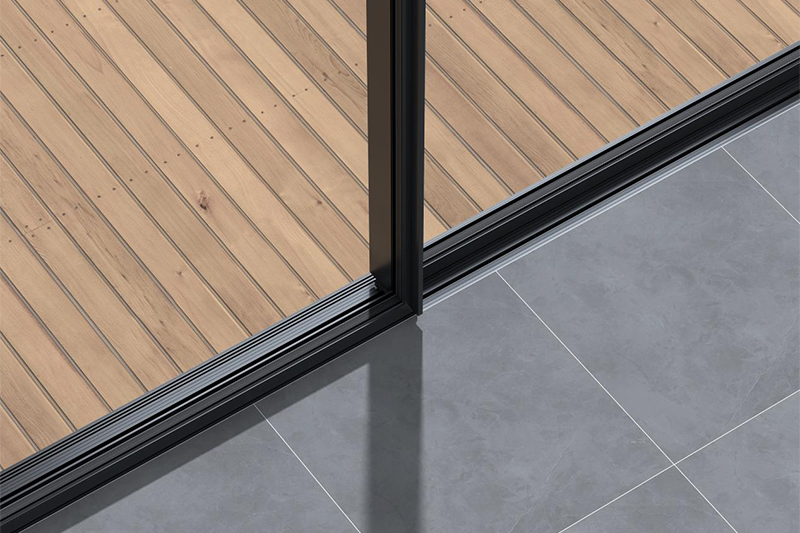

■ The 50mm ultra-low linear track allows the Ouwang panoramic door to be equipped with a barrier-free access threshold design, connecting the indoor and outdoor floors, and greatly improving the user's comfort and the watertightness of the threshold.

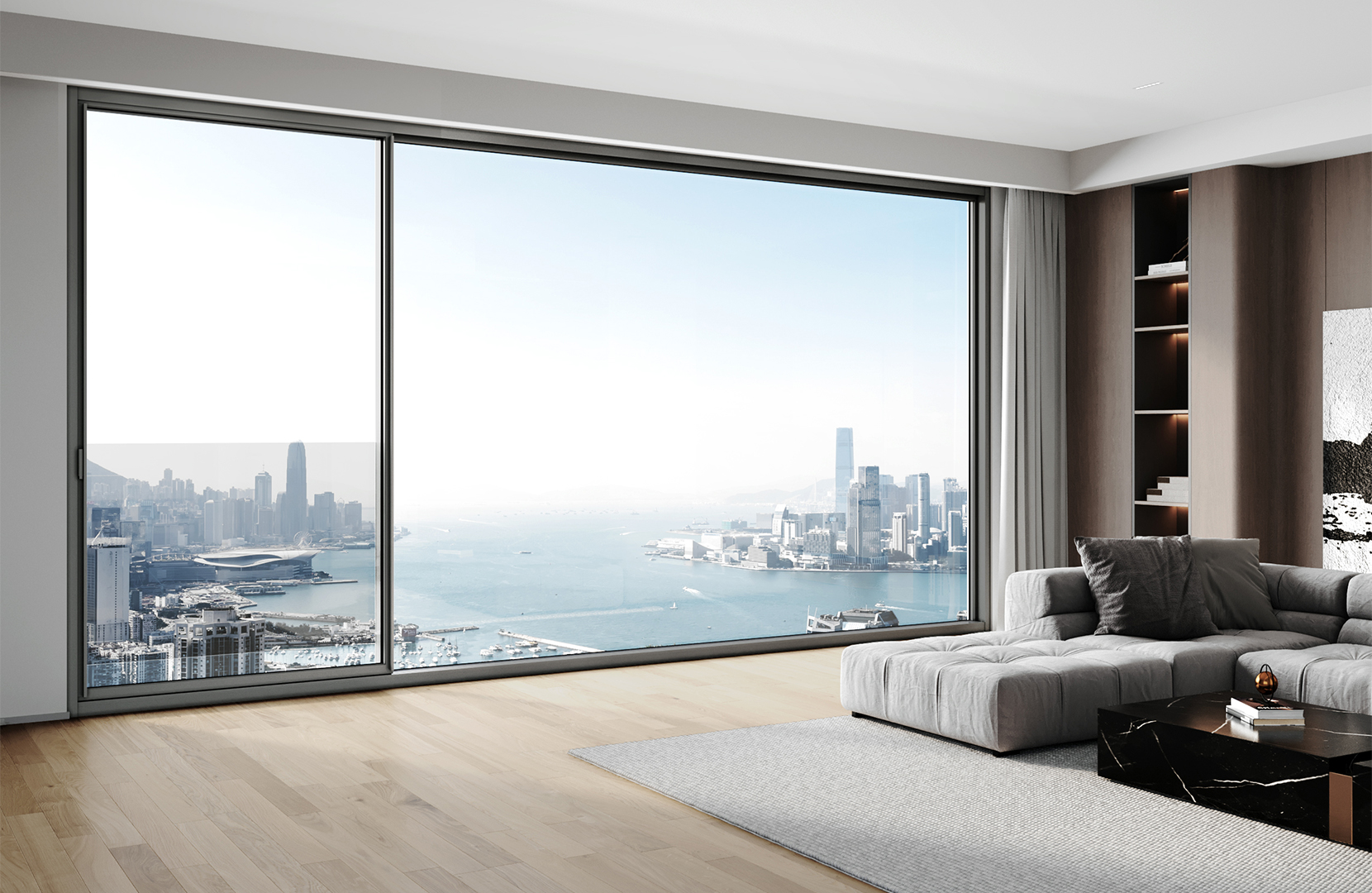

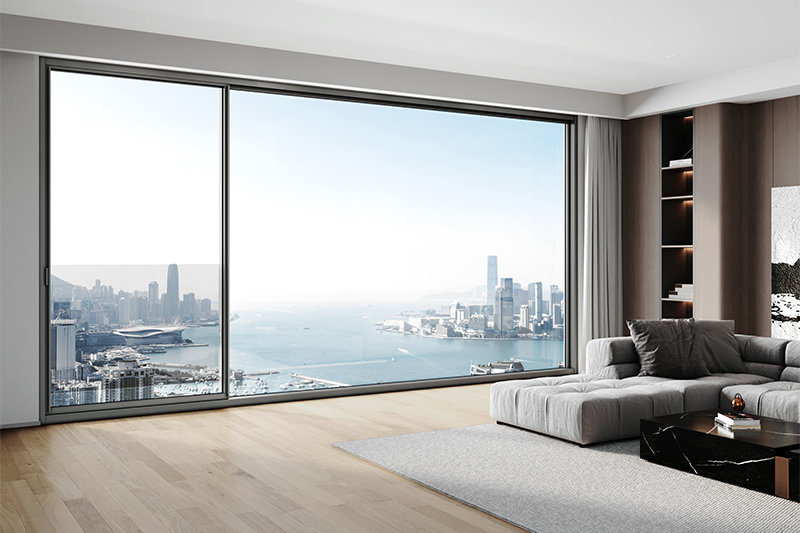

The unique dual-purpose structure of windows and doors has reached a new level of "transparency".
The panoramic sliding window and the long-span fixed window are combined into one.
■ At the same time, it meets the unique advantages of long-span fixed windows and large sliding doors.
■ It can be applied to balcony floor-to-ceiling windows and can also be used for aisle doors.
Extended Functionality Options
■ The special expansion functions: folio fan, corner fan, motor drive technology, etc., give full play to the possibilities of architectural design and meet individual needs at the same time.
A new generation of panoramic door hardware

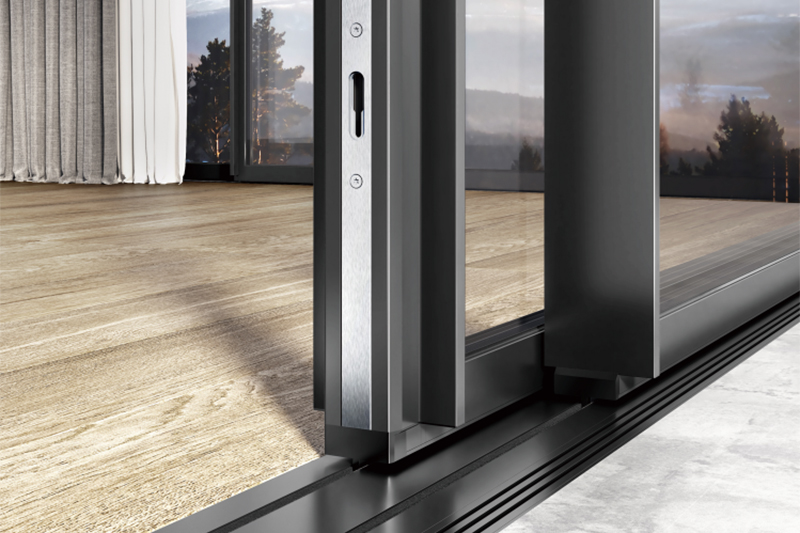

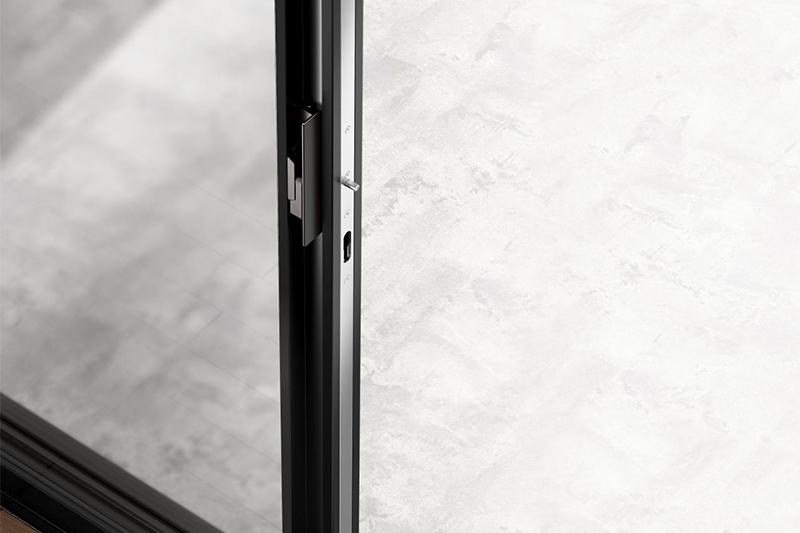

■ Standard optical lock, standard optical key lock, hook lock, adjustable anti-disconnection guide wheel, clamping high-load pulley.
Product parameters
Product parameters
Thickness |
2.0mm |
Width |
two rails 139mm / three rails 210mm |
Sash |
53mm / 14mm |
fly screen |
53mm / 14mm |
insulating glass |
6+27A+6 |
The thickness of profile |
2.2mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
metal powder coating, the thickness of the painting layer can be 35-40UM |
Hardware accessories |
with a complete set of Luke hardware system |
Standard glass |
standard with Xinyi brand insulating tempered glass 6+27A+6 |
Sealing strip |
EPDM sealing. |
Production process |
all sash group use the corner brace joint processing, equipped with reinforced mullions, have a stable structure. |
Glass crimping |
All glasses in sash use inner and outer glue strip, looks more beautiful. |
Insulating strip |
PA66 Nylon insulation |
Rail customization |
have two rails, three rails with mesh, high and low rail, low rail for choice |
Applicable places |
self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies. |
01 metallic platinum gray
02 Munich
03 dark grey
04 light grey
05 Champagne grey
06 silky black\matt black
07 silky white
08 Coffee brown
Product performance
sound insulation and noise reduction: level 4
thermal insulation: level 5
seal and water proof: level 6
air tightness performance: level 8
