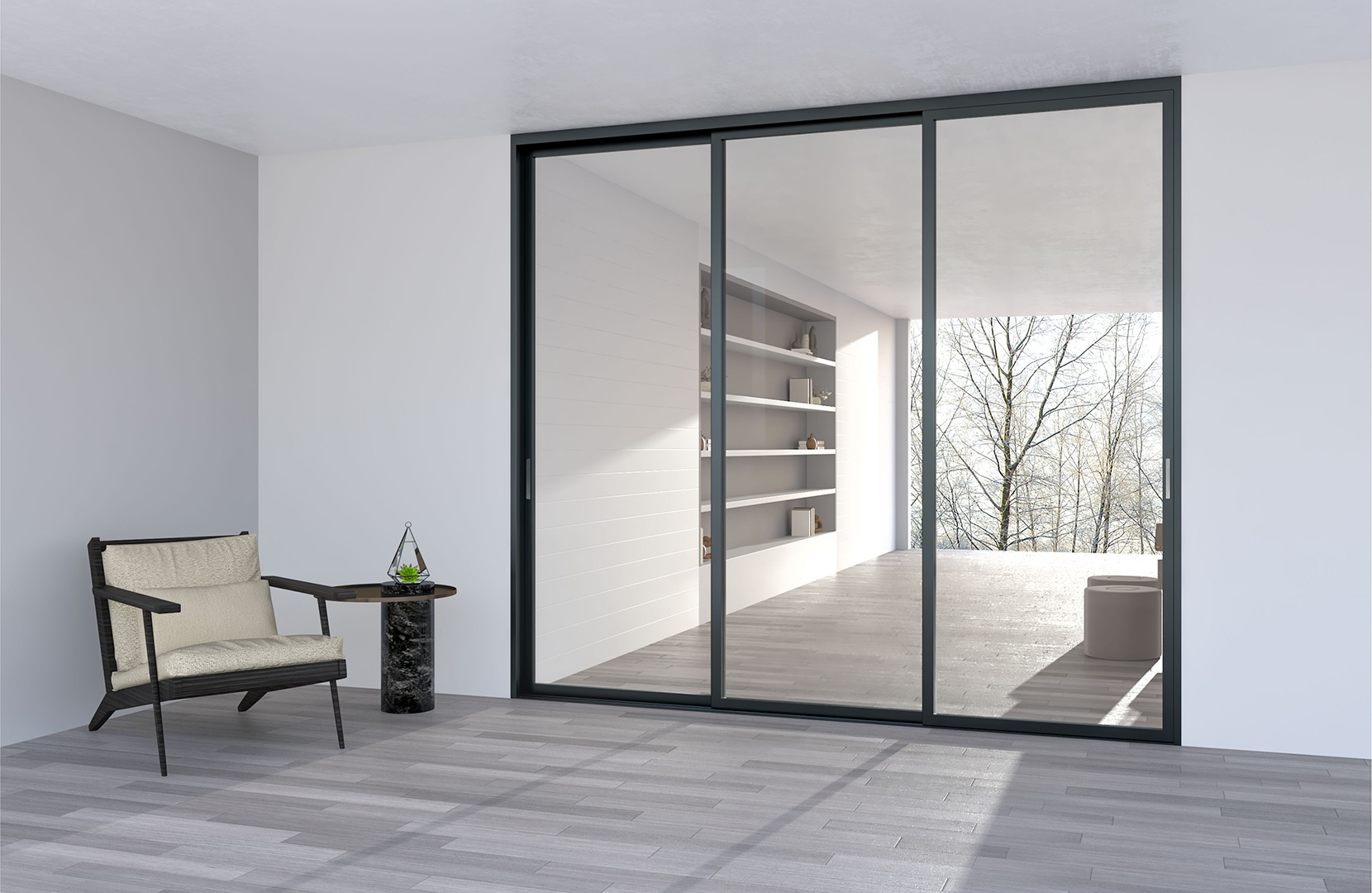

3550 series sliding door - casement door

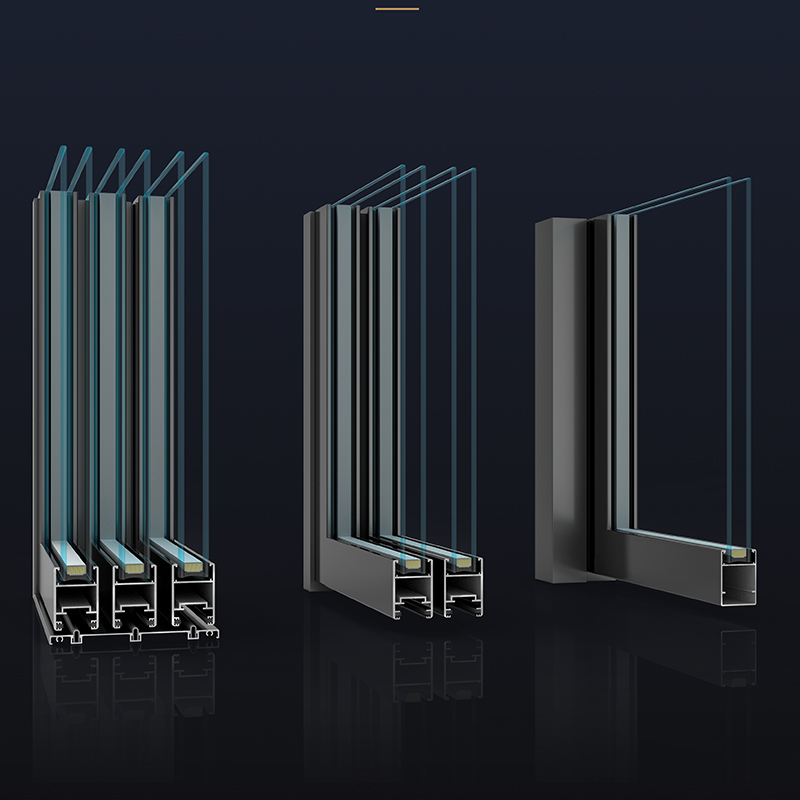

Product structure analysis

High and low rail drop type drainage

■ It can be used as a sliding door, a hanging sliding door, and a swing door.
■ The same space, different space experience.
■ The three opening methods of push-pull, hanging and swinging meet your various needs for interior doors.
■ Equipped with 5+15A+5 insulating glass, a variety of glass styles can be switched at will.

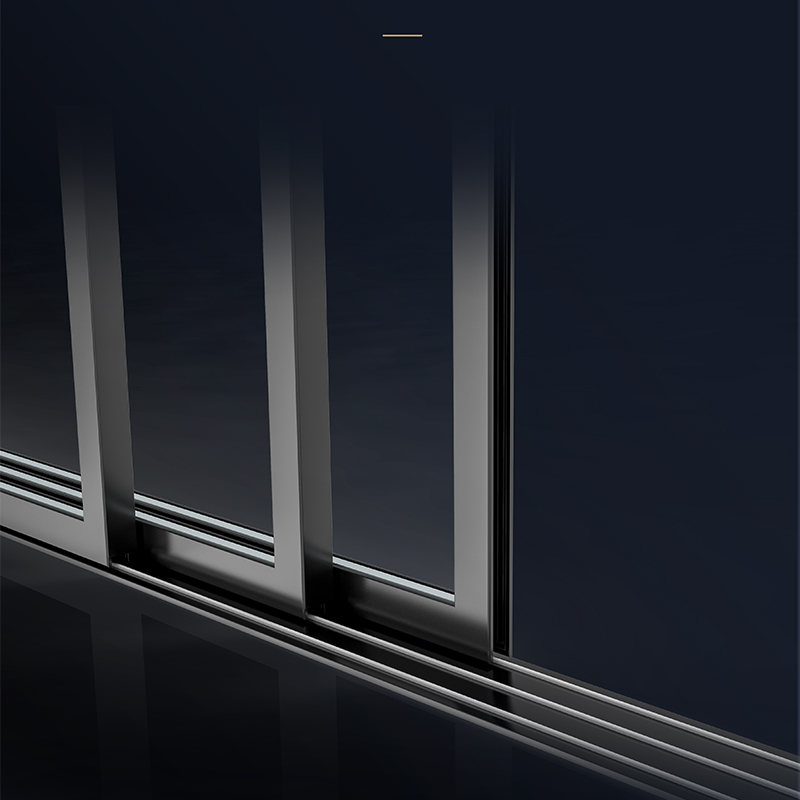

Three-track linkage structure

■ The perfect combination of three-track linkage structure and pulley engineering mechanics improves the utilization rate of space, selects buffer damping, one-time switch, anti-pinch hand design, and the product has a beautiful and unique appearance, which is safer and more comfortable to use.

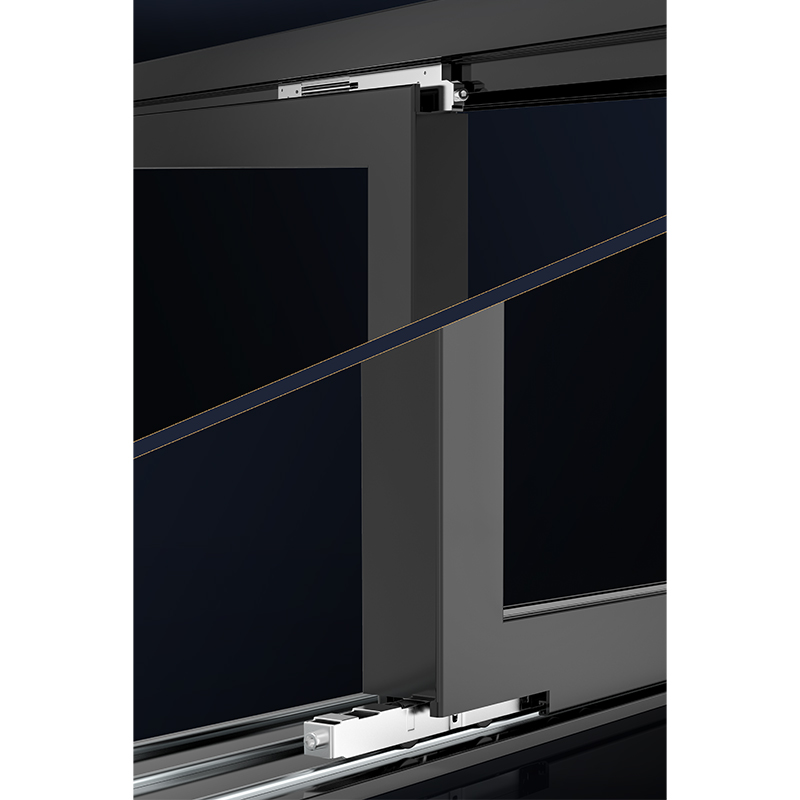

Silent pulleys are highly efficient for load-bearing

■ The upper pulley can be equipped with anti-balance wheel and buffer, and the slide wheel can be equipped with four-bearing pulley and reinforced windmill wheel, and the pulley is perfectly matched with the door leaf, and the push-pull room is quiet and silky.

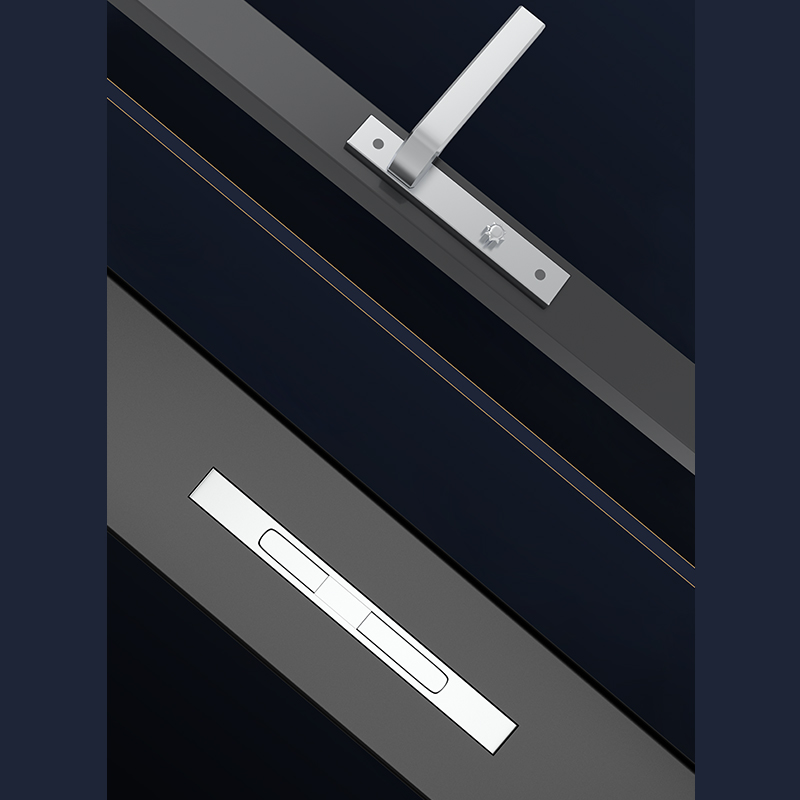

Simplify the complex, with both appearance and function

■ The high-quality surface treatment process is matched with the silent lock cylinder, which is delicate and comfortable to the touch, smoothopening and closing, and no abnormal noise.

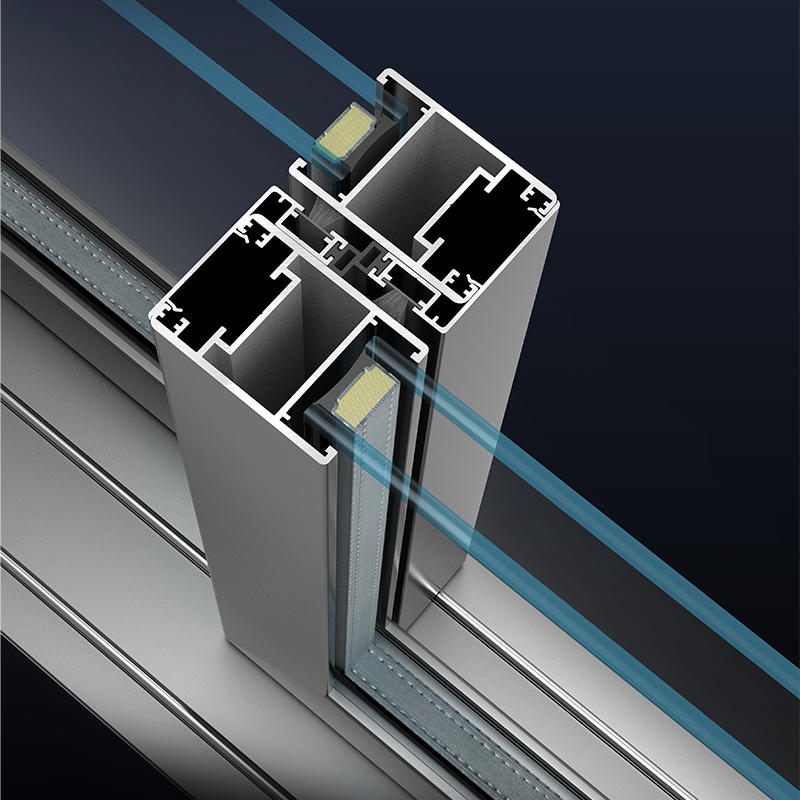

Seamless combination of hook and enterprise

■ It has changed the ventilation phenomenon of the sliding door hook, and gives people a comfortable home experience with excellent sealing.

Product parameters

Thickness of the connecting part: 1.4mm

Insulating glass: 4+15A+4

Thickness of frame: 1.2mm

Visual surface of the connecting part: 35*50mm

Depth of frame: two rails 88mm / three rails 135mm

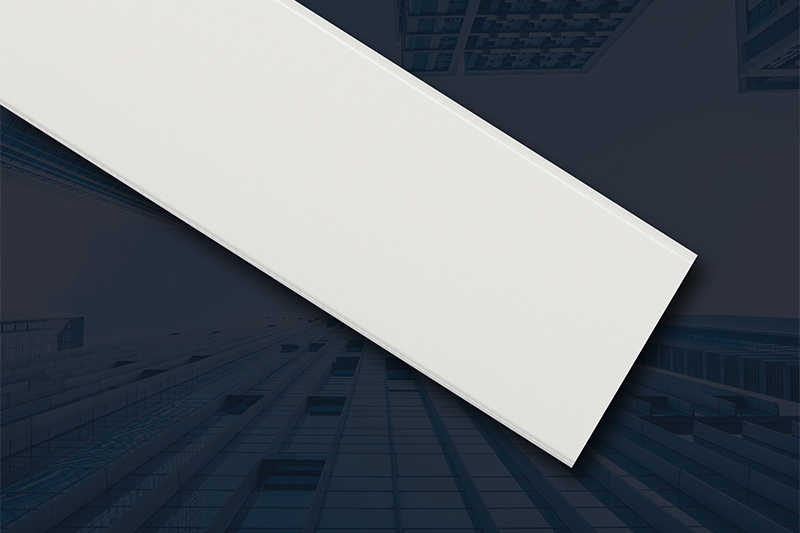

Color: Porcelain Swimming Gray, black, ivory white, metallic platinum gray

Product parameters

The thickness of profile	1.2mm, the XS original ecological aluminium T5-6063A
Surface treatment	imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection).
Hardware accessories	with CIVO own design hardware handle
Standard glass	with Xinyi brand insulating glass 4+15A+4
Sealing strip	EPDM sealing.
Production process	with embedded overall frame, the door sash adopts a 45-degree angle, with a stable structure,better at air tightness,
Standard mesh	comes with standard 07#304 stainless steel diamond mesh, which has a 90 degree bending and tightening process.
Rail customization	handrailing bathroom swing door, have two rails, three rails with mesh, low rails, and copper strips for choice.

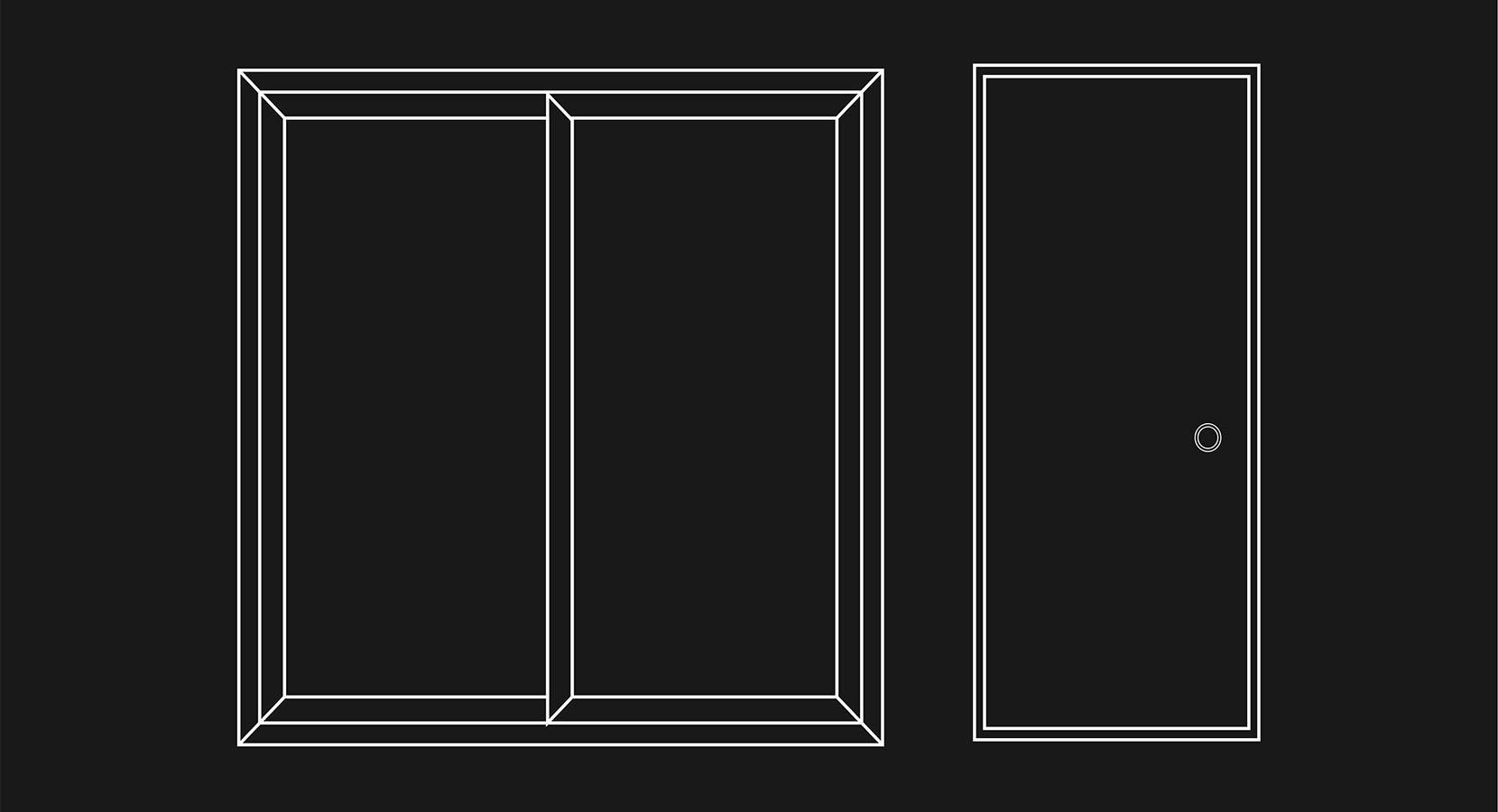

Style

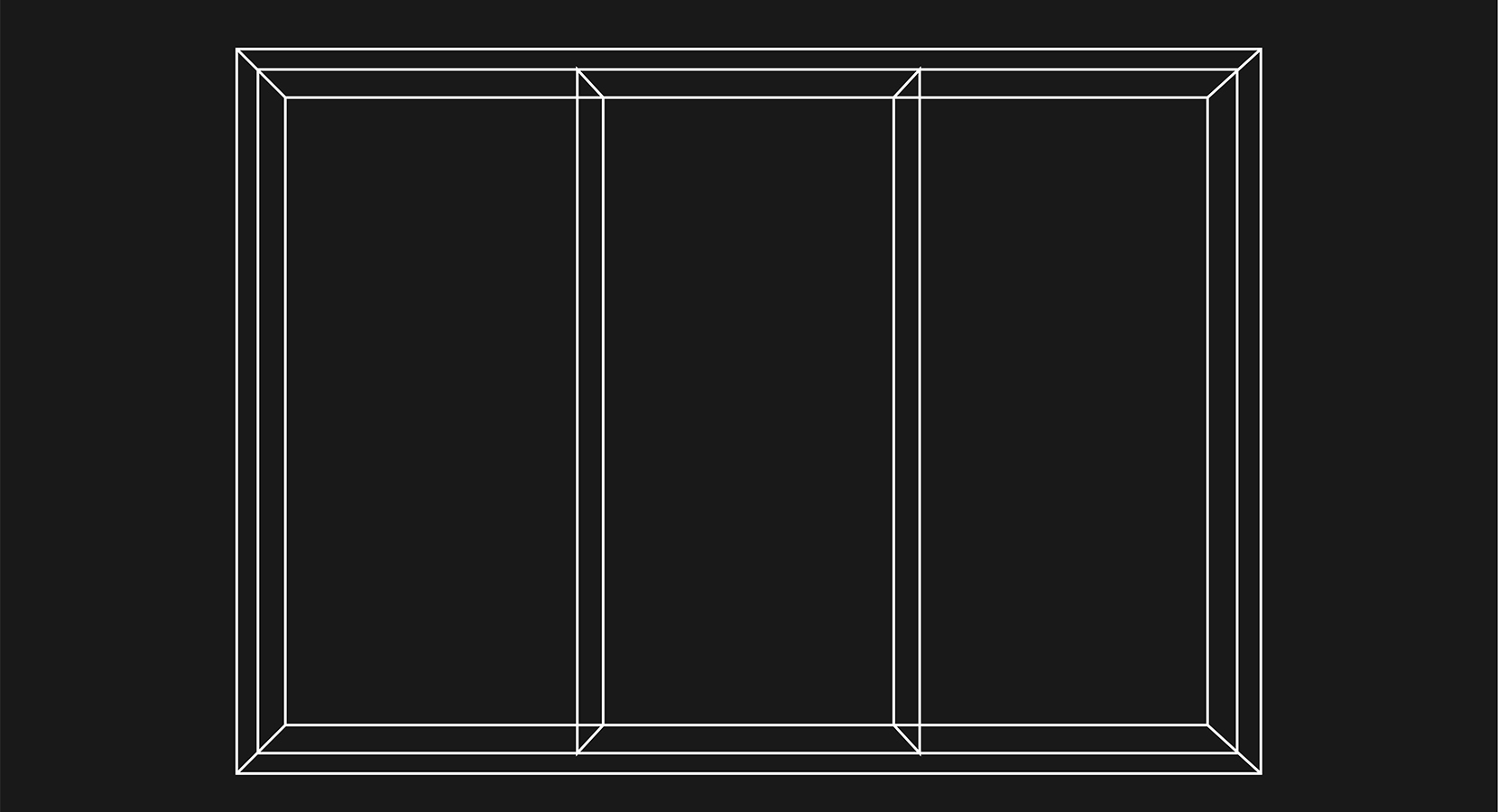

three rails three linkage

two rails sliding door - suspension/ swing door
