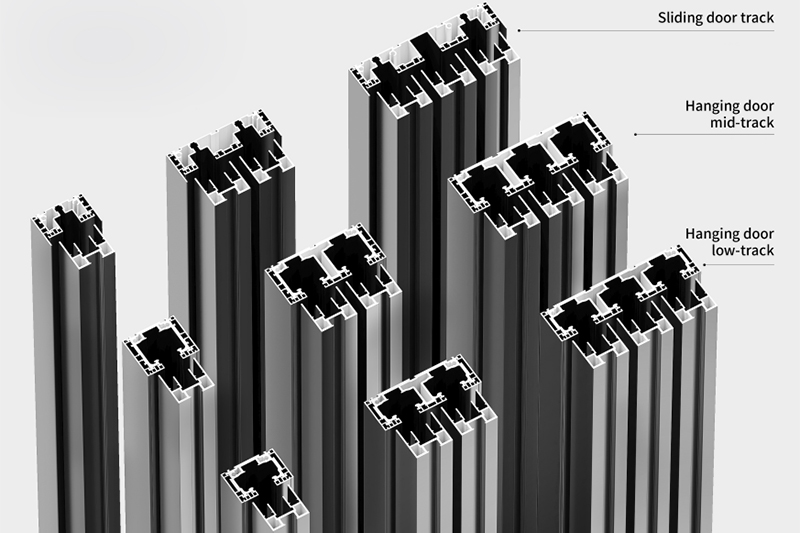

■ The track is partially thickened, with an arm thickness of 3.0, which increases the strength of the profile and the stability of the hanging rail. The track features a unique surface treatment of 'oxide flat light black,' offering characteristics such as invisibility, suppleness, durability, and silent operation, enhancing the overall perfection of the system.
■ Push and pull.
■ The track is shorter and the lines are narrower.
■ Crane the middle rail.
■ The pulleys are better and more durable.
■ Hanging low rails.
■ The tracks are shorter and the lines are narrower.

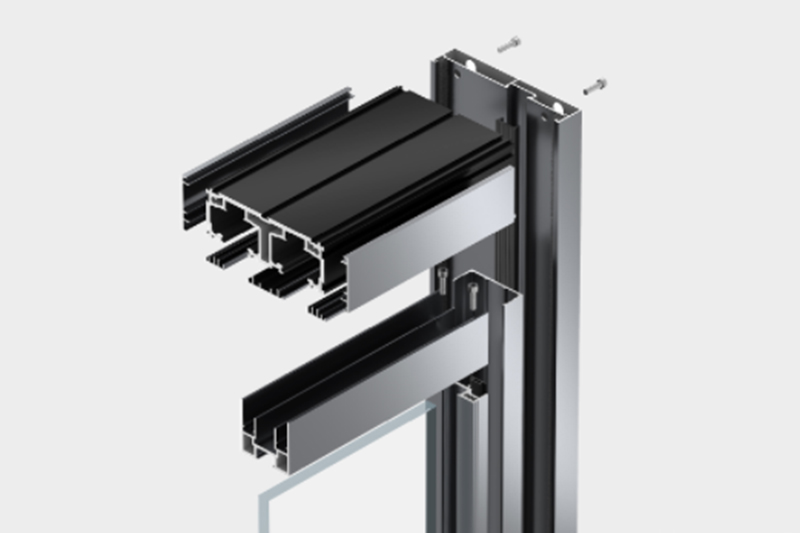

■ The screw hole connecting the frame is added to the track to facilitate frame processing. The upper rail buckle cover is free of plastic clips, reducing material complexity and installation difficulties. Additionally, the enlarged 18mm trunking on the upper rail allows for maintenance and installation without the need to remove the lower buckle cover.

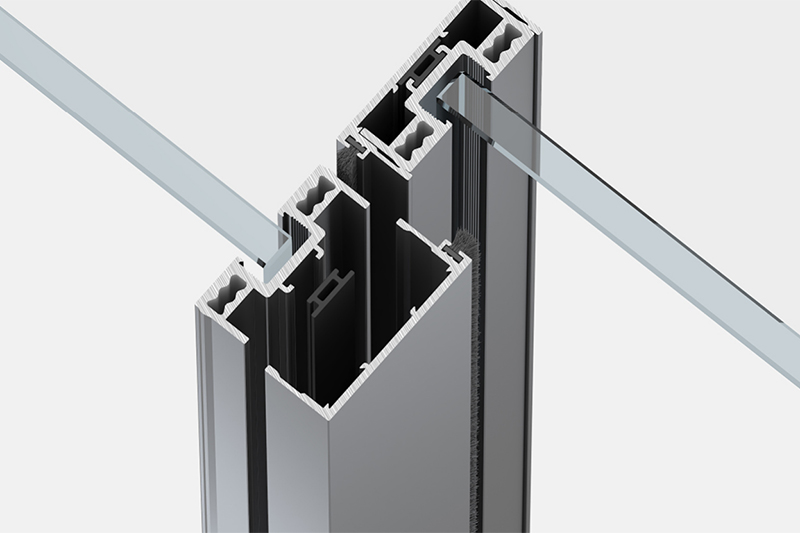

■ The optimized flexible connection technology of connecting part.
■ A sealing strip is added in the middle of the connecting part, The shock-absorbing effect of the cover plate has greatly reduced the occurrence of loosening and abnormal noise.
Product parameters
Thickness of the connecting part |
2.0mm |
Insulating glass |
4+0.76+4/8mm |
Thickness of frame |
1.2mm |
Visual surface of the connecting part |
40*16mm |
Depth of frame |
two rails 99mm / three rails 145mm / four rails 191mm |
Color |
Porcelain Swimming Gray, Munich, moonlight gray |
Product parameters
The thickness of profile |
2.0mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection). |
Hardware accessories |
with CIVO own design hardware handle |
Standard glass |
with Xinyi brand insulating/laminated glass 5+20A+5 |
Sealing strip |
EPDM sealing. |
Production process |
with embedded overall frame, the door sash adopts a 45-degree angle, with a stable structure, better at air tightness, 6-layer wool strip sealing design, superior sealing and sound insulation effect. |
Production matching |
match with swing door, can be three linkage, four linkage, suspension and sliding. |
Rail customization |
have sliding, suspension, copper strip, adhesive stainless steel rail for choice |
Style

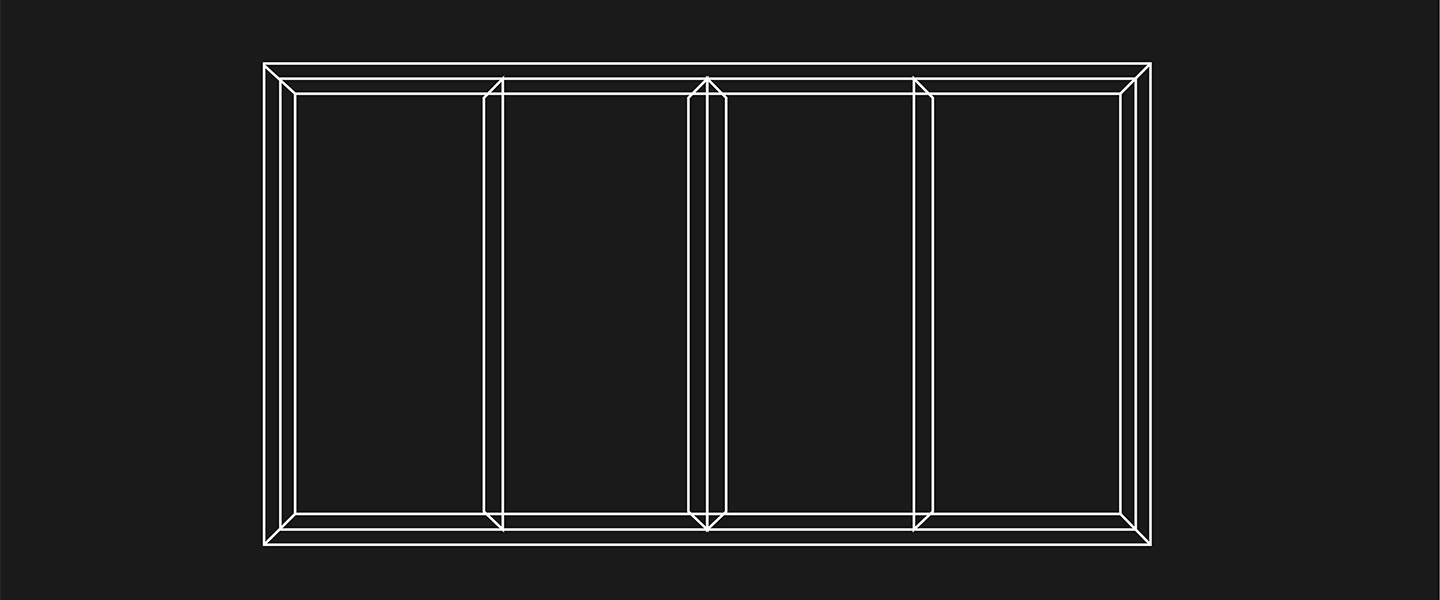

Four rails linkage

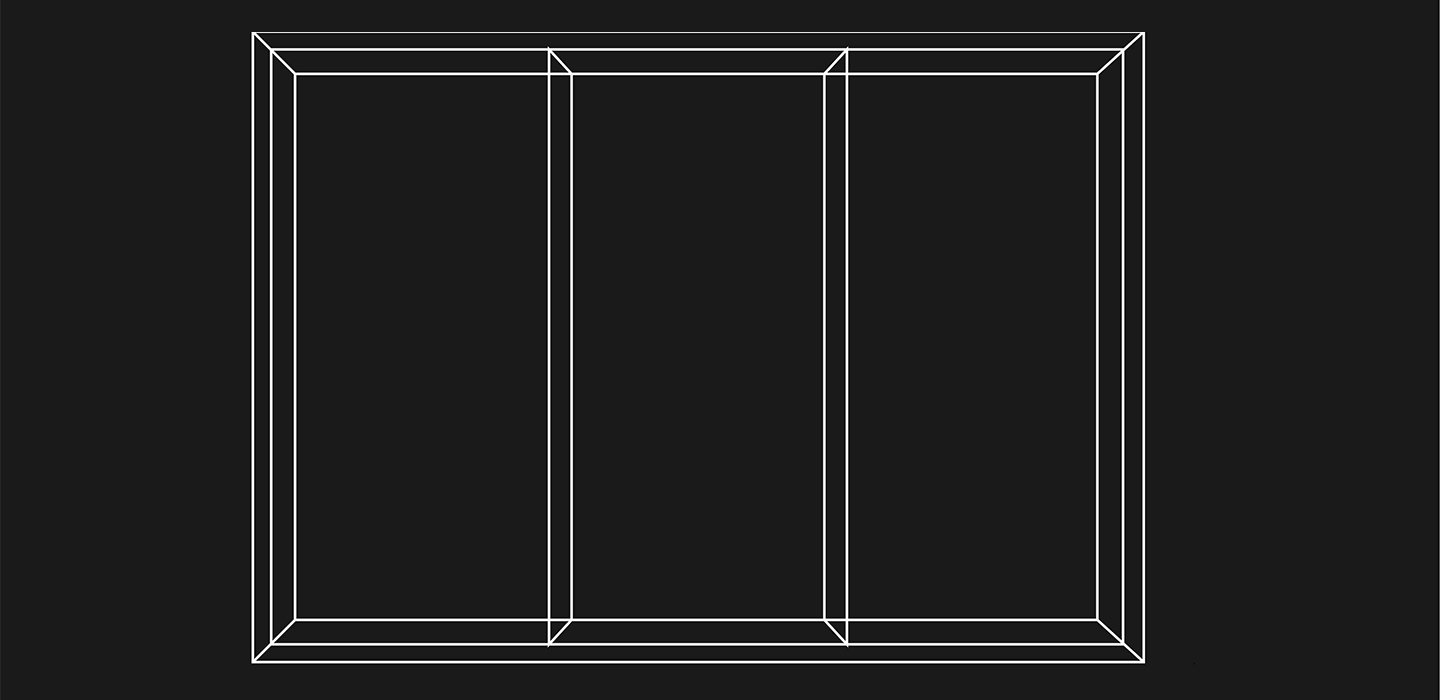

Three rails linkage

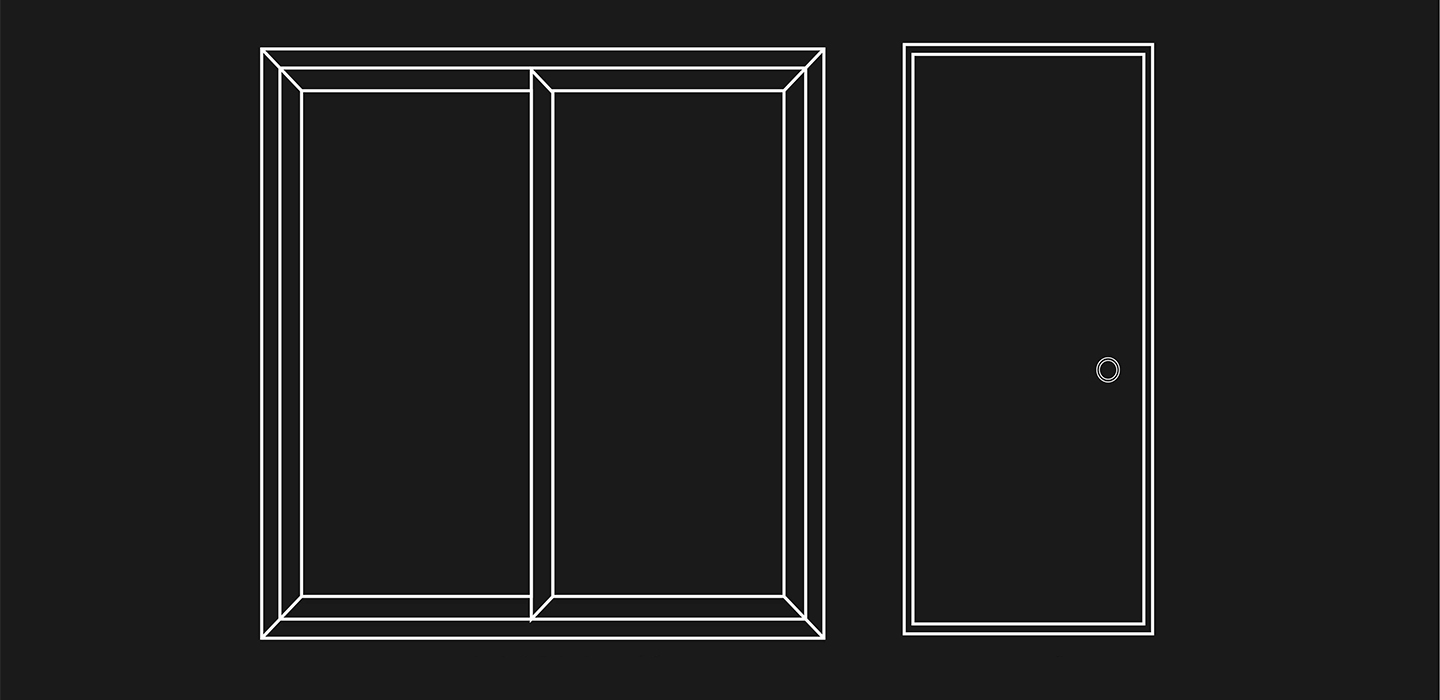

Two rails sliding - Suspension/ Swing door
01 metallic platinum gray
02 Munich
03 moonlight gray
04 dark grey
05 light grey
06 Champagne grey
07 silky black\matt black
08 silky white
