Doors

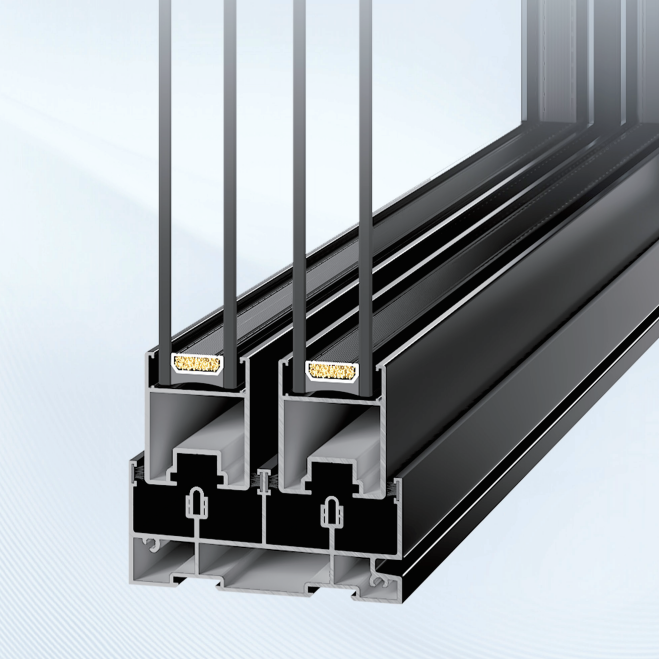

Innovatively‑designed new‑type track
■ Improve drainage and sealing performance
■ Sloped structure with higher inner side and lower outer side. The enlarged track notch improves drainage performance and facilitates cleaning. The integrated new central sealing component effectively reduces air infiltration at the bottom of the track.
■ Sloped structure with higher inner side and lower outer side. The enlarged track notch improves drainage performance and facilitates cleaning. The integrated new central sealing component effectively reduces air infiltration at the bottom of the track.

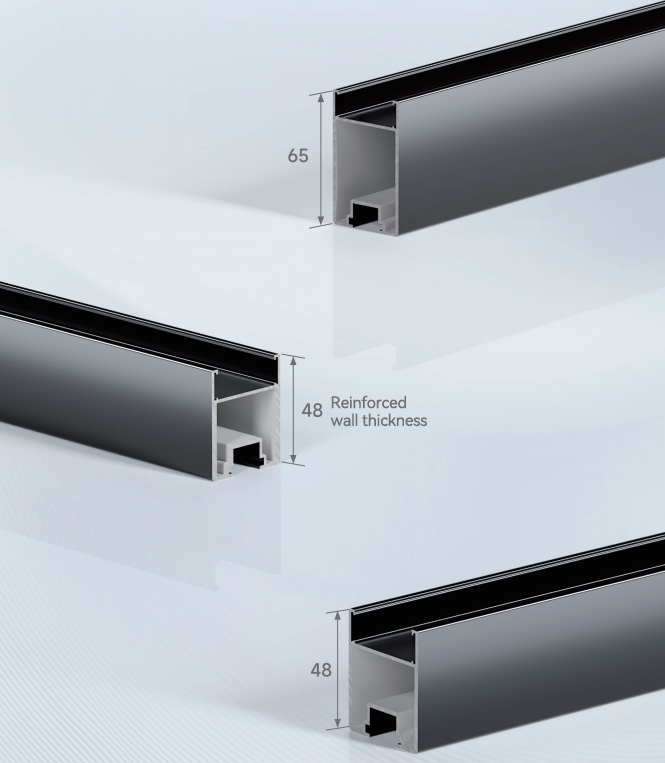

Multiple stile solutions available
■ Meet the needs of different users
■ 48mm and 65mm vertical stiles are optional with multiple wall‑thickness options. They easily adapt to larger opening sizes to suit various application scenarios with little change in cost per square meter.
■ 48mm and 65mm vertical stiles are optional with multiple wall‑thickness options. They easily adapt to larger opening sizes to suit various application scenarios with little change in cost per square meter.

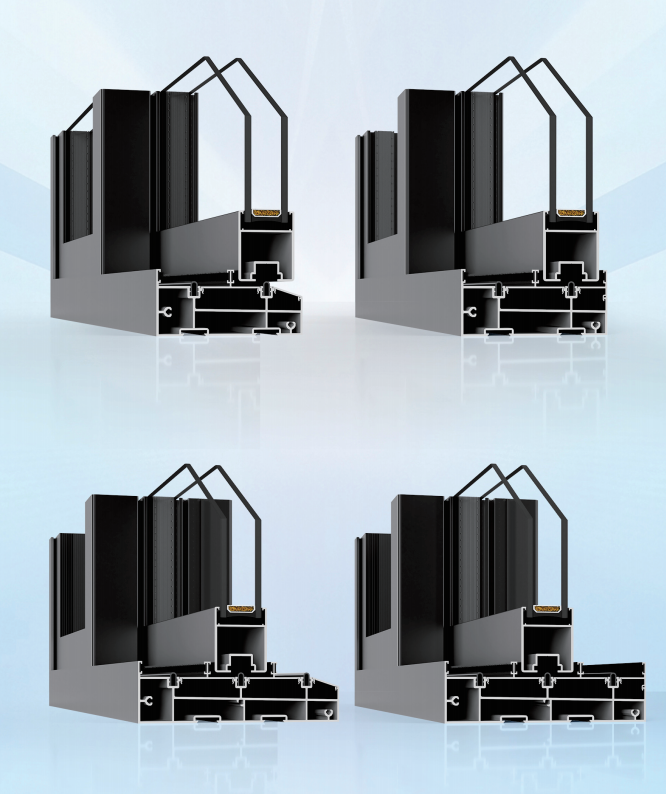

Multiple track options available
■ Multi scenario application
■ Multiple track options are available for flexible configuration, meeting diverse spatial requirements and adapting to varying application scenarios.
■ Multiple track options are available for flexible configuration, meeting diverse spatial requirements and adapting to varying application scenarios.

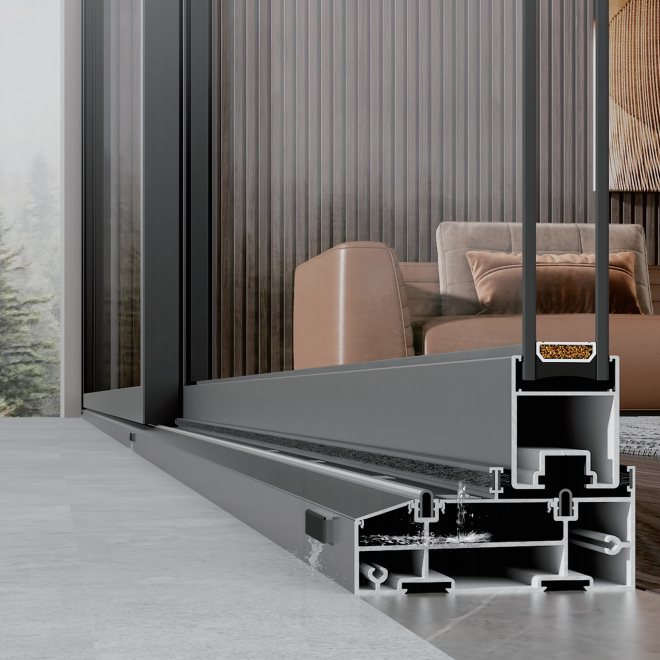

Split‑flow drainage track
■ Upgrade appearance and optimize water tightness
■ Split‑flow drainage track avoids wind howling noise and rain backflow caused by drainage holes directly facing air inlets, discharging rainwater outdoors more directly and efficiently.
■ Split‑flow drainage track avoids wind howling noise and rain backflow caused by drainage holes directly facing air inlets, discharging rainwater outdoors more directly and efficiently.

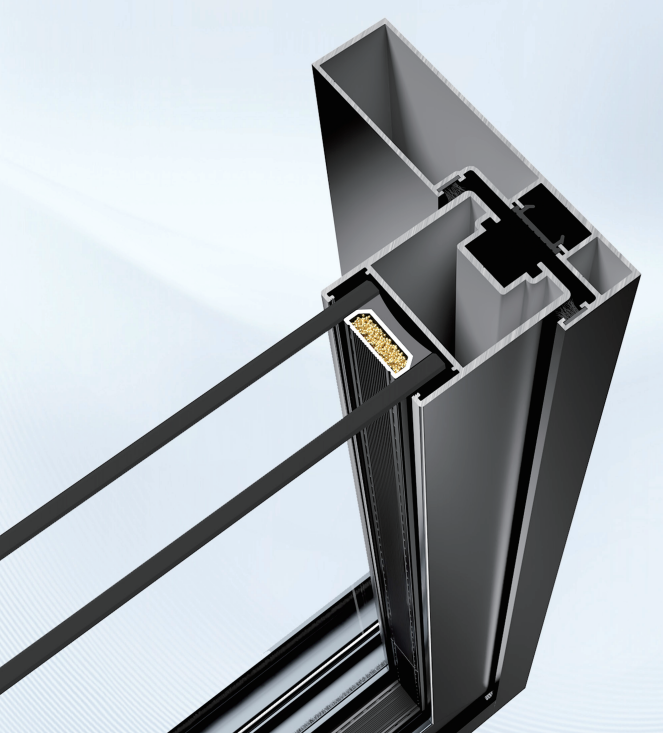

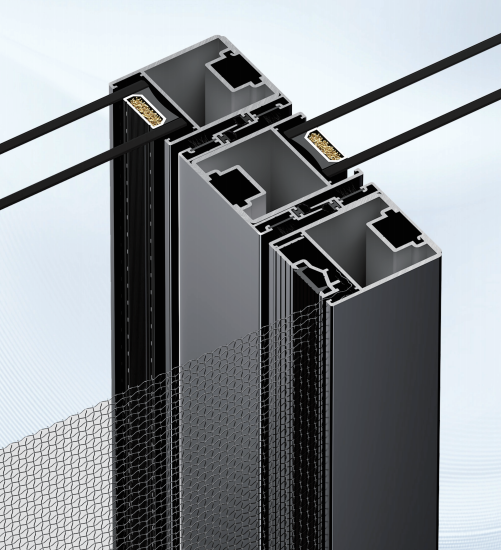

Plug‑in multi‑seal meeting stile
■ Ensure sound insulation and airtightness function.
■ Multiple sealing gaskets and siliconized wool strips are installed between meeting stiles to enhance sealing and sound‑insulation performance, as well as prevent noise and sash damage caused by collision upon closing.
■ Multiple sealing gaskets and siliconized wool strips are installed between meeting stiles to enhance sealing and sound‑insulation performance, as well as prevent noise and sash damage caused by collision upon closing.

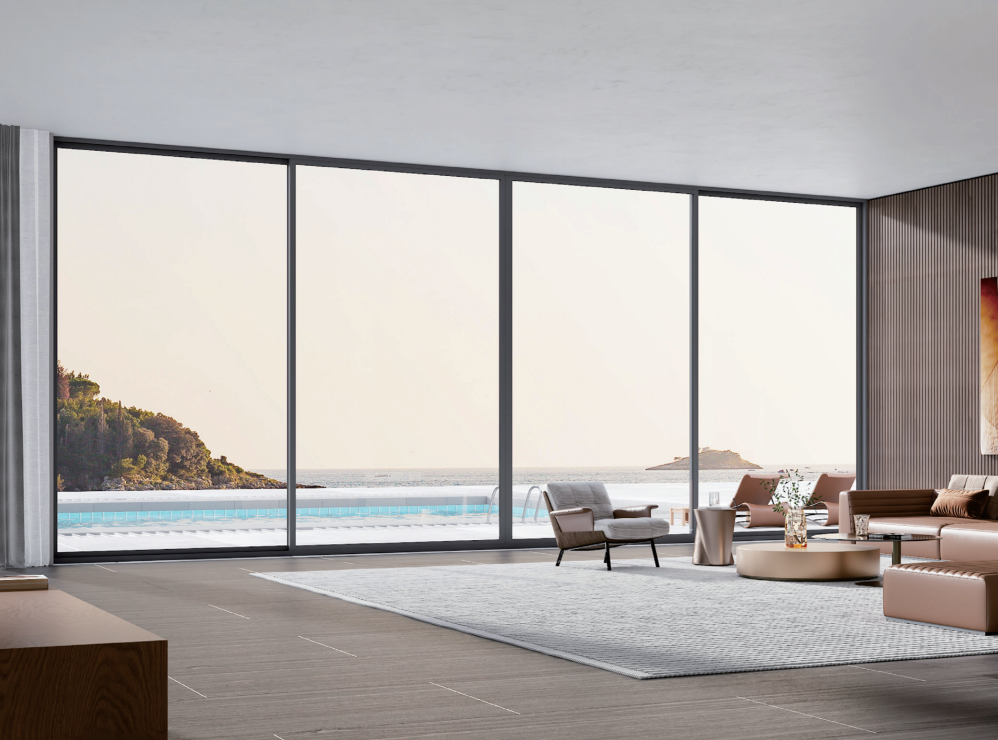

Lightweight frame and sash
■ Delicate finish with simple lines.
■ The frame and sash adopt an innovative frame‑sash matching design for a more compact and lightweight structure. The slim‑profiled construction delivers enhanced visual effect and better daylighting performance.
■ The frame and sash adopt an innovative frame‑sash matching design for a more compact and lightweight structure. The slim‑profiled construction delivers enhanced visual effect and better daylighting performance.

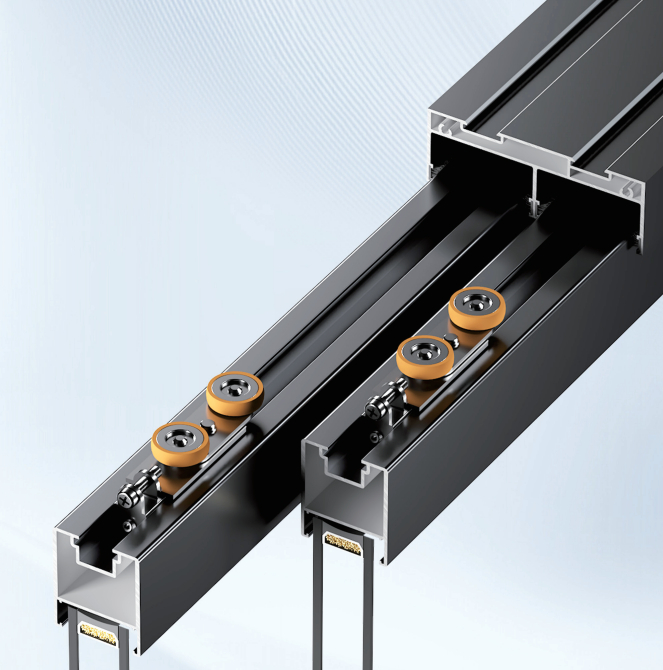

New upper track & anti‑sway mechanism
■ Pressure resistant, anti sway, stable and safe.
■ The custom post‑mounted anti‑sway roller for the upper track reduces the visible track surface while cutting costs. The adjustable anti‑sway roller keeps the sash balanced, facilitates smooth sliding and improves silent performance.
■ The custom post‑mounted anti‑sway roller for the upper track reduces the visible track surface while cutting costs. The adjustable anti‑sway roller keeps the sash balanced, facilitates smooth sliding and improves silent performance.

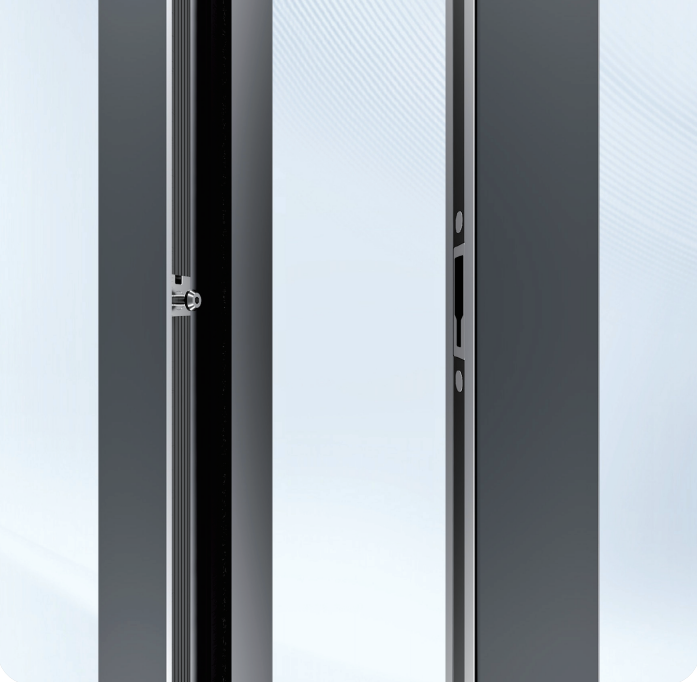

New reverse‑mount hardware locking system
■ Reverse installation of hardware with simplified structure.
■ This innovative locking mechanism for sliding doors features lock points fitted on the frame for easy adjustment. The strikers are mounted on the sash, creating a flat sash surface free of protrusions and redundant lines. It optimizes the profile structure for compact and aesthetic‑pleasing appearance.
■ This innovative locking mechanism for sliding doors features lock points fitted on the frame for easy adjustment. The strikers are mounted on the sash, creating a flat sash surface free of protrusions and redundant lines. It optimizes the profile structure for compact and aesthetic‑pleasing appearance.

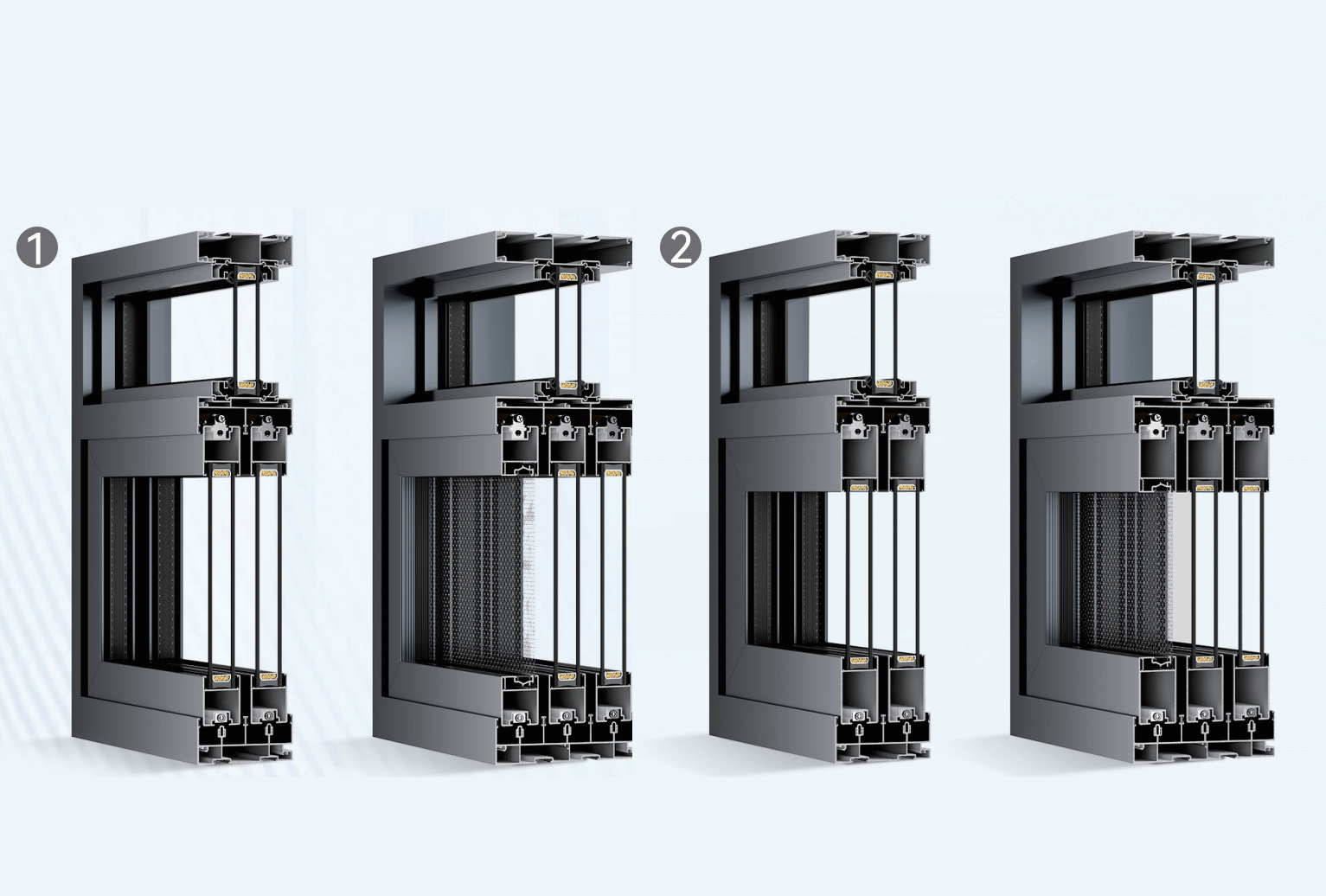

Two types of vertical stiles
■ ①48mm vertical stile
■ ②65mm vertical stile
■ ②65mm vertical stile
Product parameters
Product parameters
（48mm vertical stile） Main profile wall thickness |
Frame: 1.7mm, Sash: 2.8mm |
|
（48mm vertical stile） Structural depth |
2‑track: 103mm, 3‑track: 154mm |
|
（48mm vertical stile）Frame visible face |
25mm
|
|
（48mm vertical stile）Vertical stile visible face |
48mm |
|
（48mm vertical stile）Meeting stile visible face |
49mm |
|
（48mm vertical stile）Glass configuration |
5+20A+5 |
（65mm vertical stile） Main profile wall thickness |
Frame: 1.7mm, Sash: 1.9mm |
（65mm vertical stile） Structural depth |
2‑track: 103mm, 3‑track: 154mm |
（65mm vertical stile）Frame visible face |
25mm |
（65mm vertical stile）Vertical stile visible face |
65mm |
（65mm vertical stile）Meeting stile visible face |
66mm |
（65mm vertical stile）Glass configuration |
5+20A+5 |
01
01 metallic platinum gray
01
02 black gold
01
03 Porcelain Swimming Gray
01
04 dark grey
01
05 light grey
01
06 Champagne grey
01
07 silky black\matt black
01
08 silky white
01
09 Coffee brown
Product performance
sound insulation and noise reduction: level 4
thermal insulation: level 5
seal and water proof: level 6
air tightness performance: level 8
