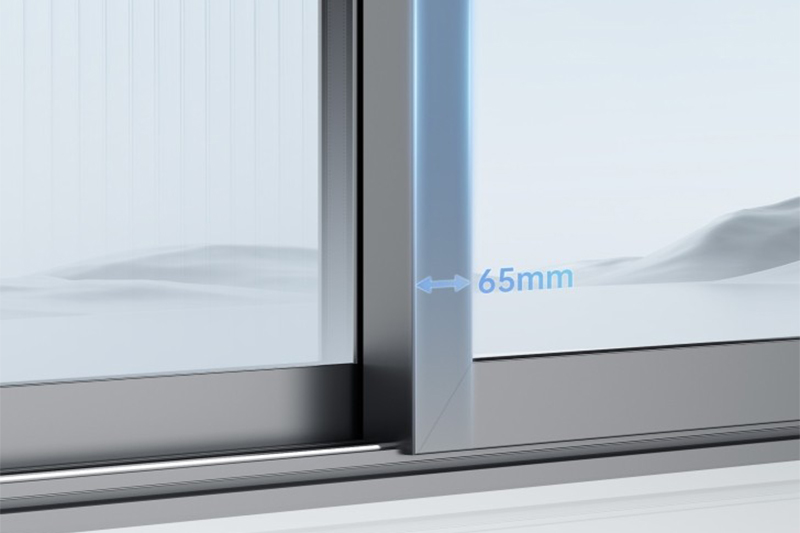

1. Medium narrow fan style design
■ Medium and narrow style Unique shape.
■ The combination of 65mm door leaf hook and simple line design greatly improves the sense of home design. Medium and narrow hook enterprises, so that the vision can be fully liberated, feel the beautiful sunshine.

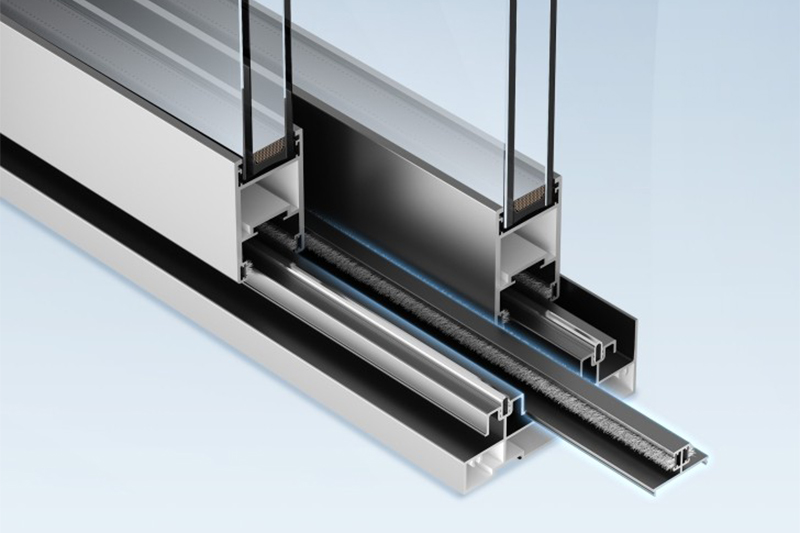

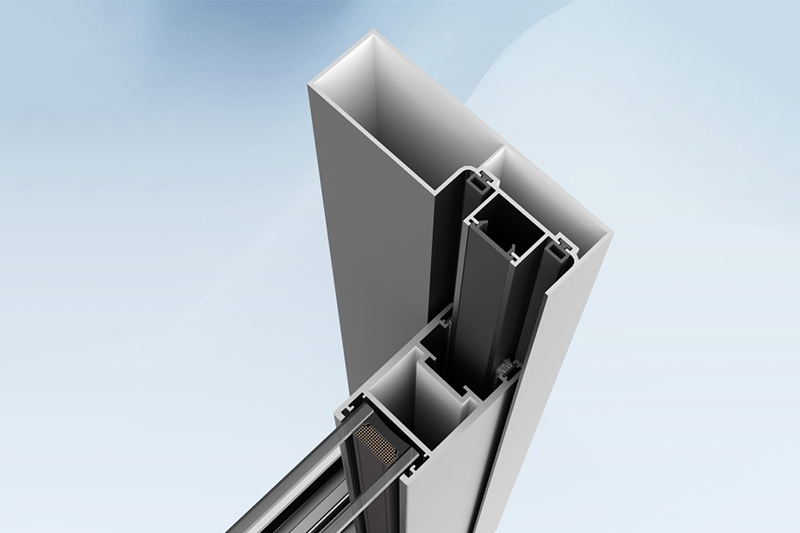

2. track center seal insert
■ Seamless, layer-by-layer sealing.
■ The central configuration of the hook enterprise is a sealing plug-in, and the planning wool strip is clamped on both sides, which is compatible with airtight and watertight requirements, and presents a cleaner and more elegant appearance.

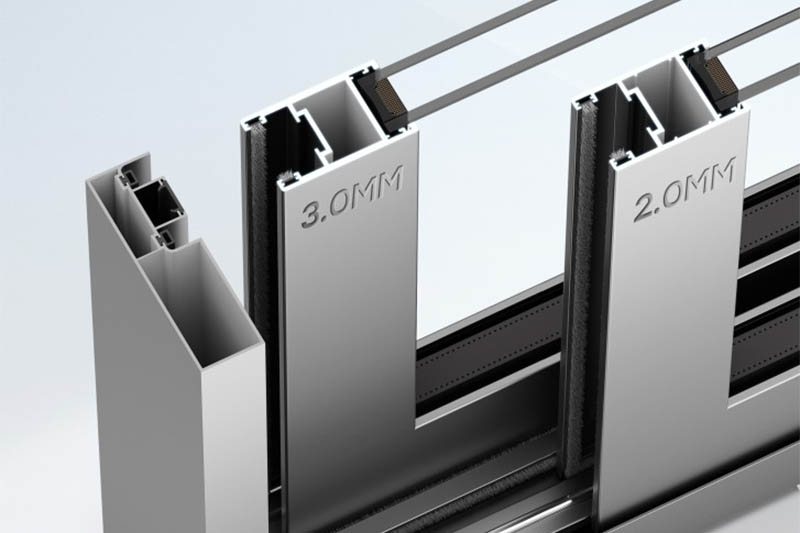

3. The Wall Thickness Of The Door Leaf Exceeds The National Standard 3.0mm
■ Stable structure strengthens compression resistance.
■ The wall thickness of the optical enterprise profile is up to 3.0mm, which far exceeds the national wall thickness standard, has stronger load-bearing, and has strong wind pressure, twist and warping resistance.

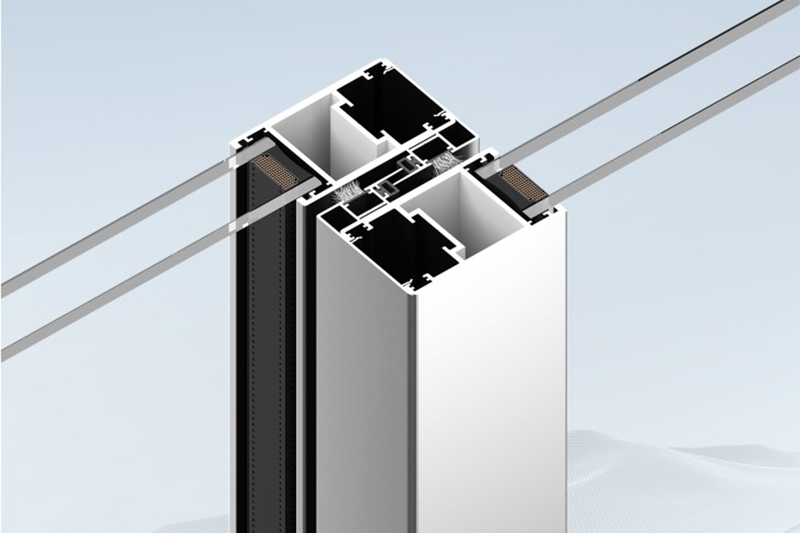

4. Embedded frame configuration
■ Beautiful shape and better sealing
■ The door leaf is recessed into the frame, and the overlap of the sash frame is hidden for a cleaner appearance. With double sealing strip and wool top, it seals more effectively and plays a role in cushioning impact.

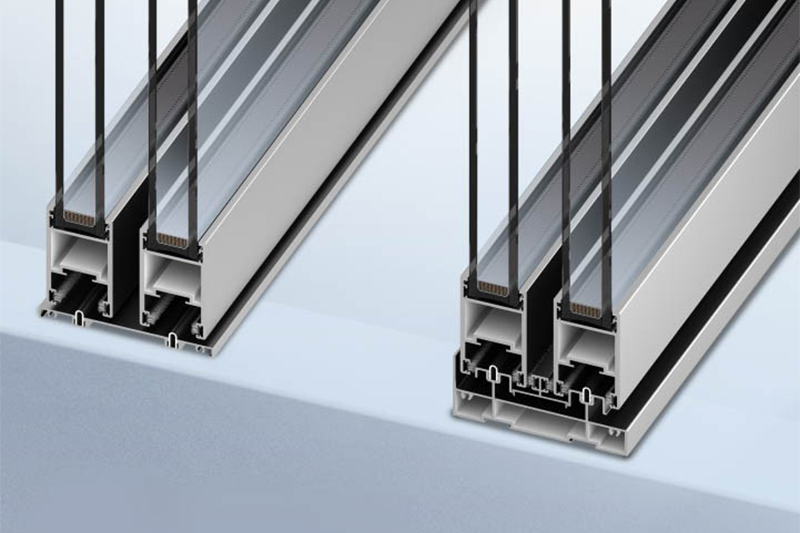

5. Equipped with high and low rail options
■ Variety of options Smooth push and pull.
■ With a variety of track designs and high-precision 304 stainless steel guide rails, the push and pull are smooth and noiseless, which can meet the barrier-free passage needs of indoor doors and outdoor doors at the same time.

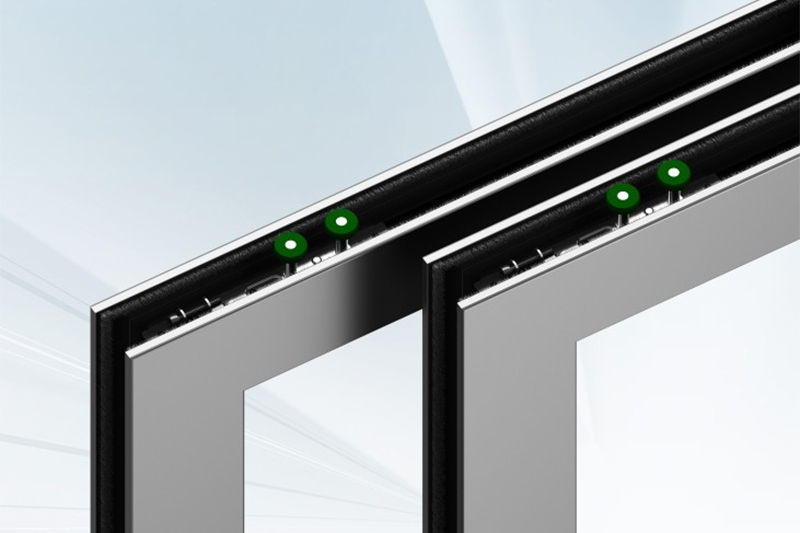

6. Hook enterprise sealing design
■ Improve the sound insulation and air tightness effect
■ The installation of sealing strips between the hook and the enterprise can effectively improve the sealing and sound insulation ability, and reduce the noise caused by collision and damage to the door leaf when closing.
7. Upper rail anti-balance wheel technology
■ Excellent, stable, stable and safe
■ Control the balance of the door leaf, the effect of helping to slip and anti-swing is obvious, and it can also be stable and not swaying under strong winds, ensuring stability and improving the silent effect.

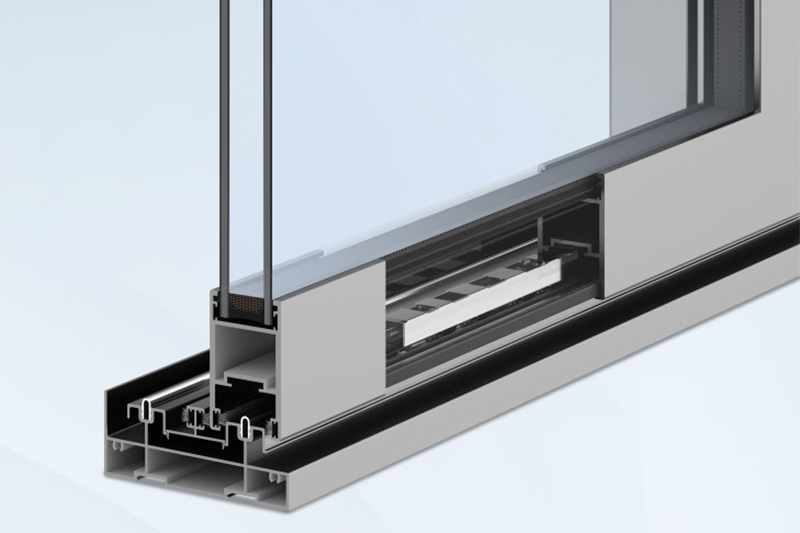

8. High load-bearing lower rail wheel design
■ Small details carry a lot of safety
■ The 304 stainless steel track is equipped with a high-load-bearing 120kg pulley, which pushes and pulls smoothly and unhindered, smooth and brisk, noiseless and lightweight, and is lightweight and flexible.
Product specification
Thickness of the connecting part |
3.0mm |
Insulating glass |
5+20A+5 |
Thickness of frame |
1.4mm |
Visual surface of the connecting part |
40*65mm |
Depth of frame |
two rails 105mm / three rails 161mm |
Color |
Porcelain Swimming Gray, black, metallic platinum gray, starry coffee |
Product parameters
The thickness of profile |
3.0mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection). |
Hardware accessories |
with CIVO own design hardware handle |
Standard glass |
with Xinyi brand insulating glass 5+20A+5 |
Sealing strip |
EPDM sealing. |
Production process |
with embedded overall frame, the door sash adopts a 45-degree angle, with a solid structure, better at air tightness, 6-layer wool strip sealing design, superior sealing and sound insulation effect. |
Standard mesh |
comes with standard 07#304 stainless steel diamond mesh, which has a 90 degree bending and tightening process. |
Rail customization |
handrailing bathroom swing door, have two rails, three rails with mesh, high and low rails, low rails, and copper strips for choice. |

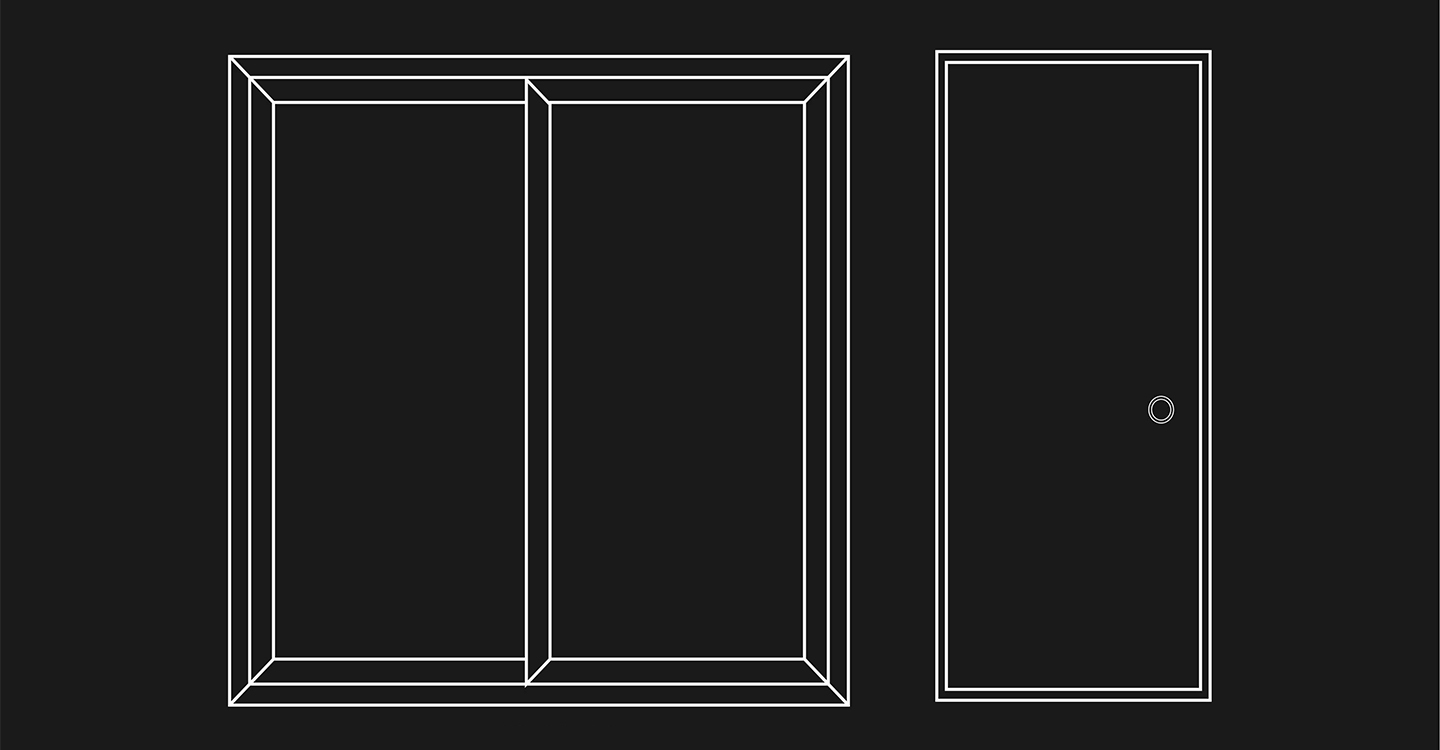

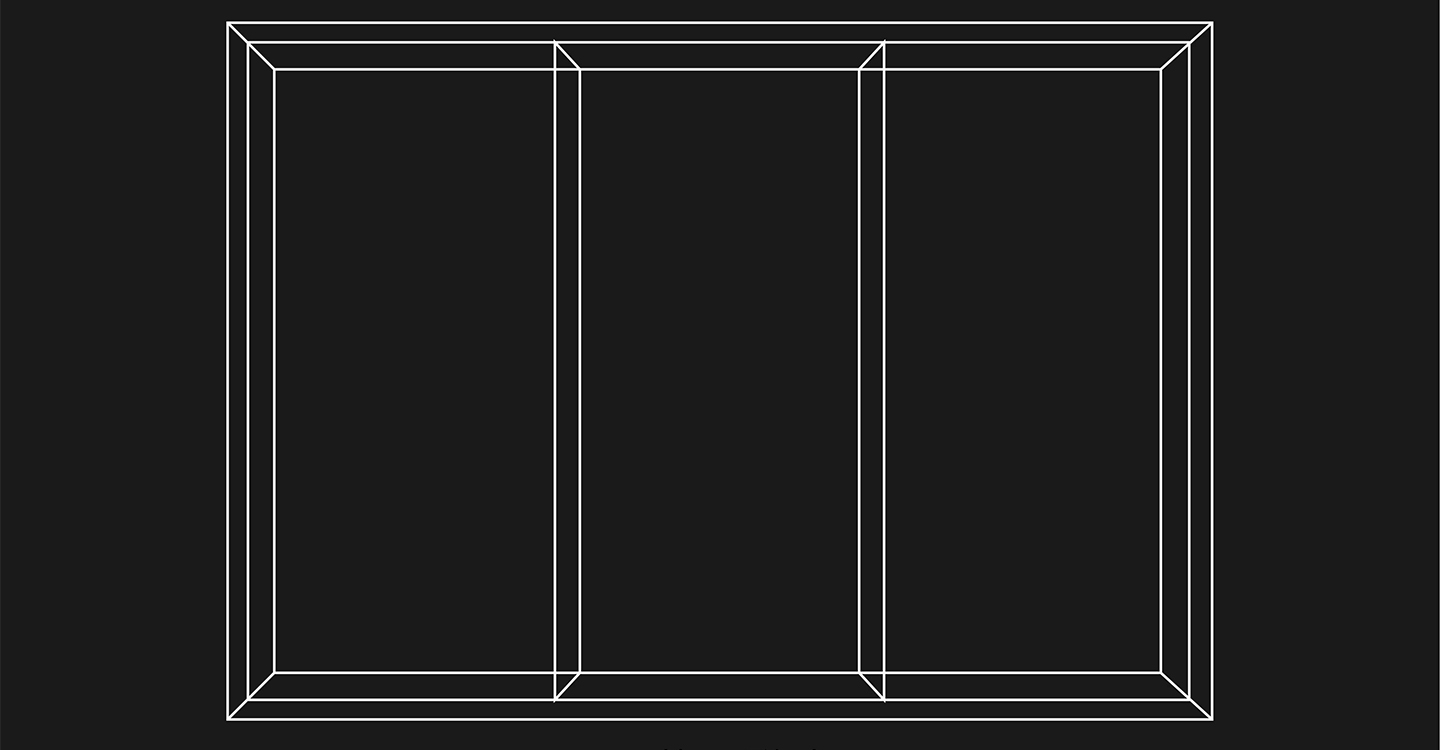

two rails sliding door/ swing door
three rails three linkage
01 Porcelain Swimming Gray

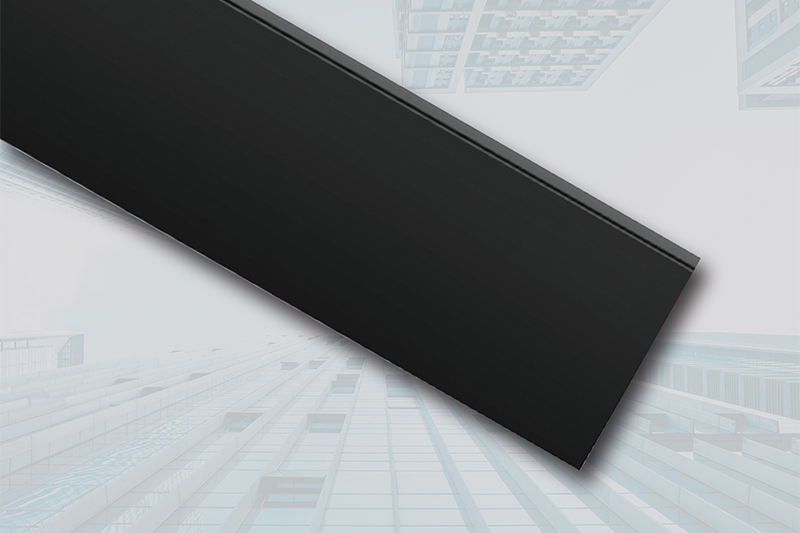

02 black
03 metallic platinum gray
04 starry coffee
05 dark grey
06 light grey
07 Champagne grey
08 silky black\matt black
09 silky white
