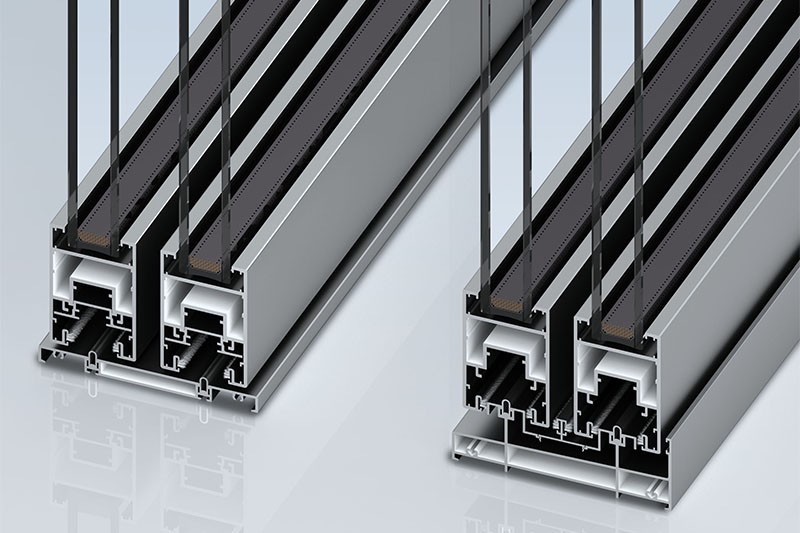

Equipped with high and low rail options
■ Compatible with both inner and outer door schemes.
■ Series sliding
doors provide two options: low and high rail, taking into account
the application of interior and exterior doors, to meet different
space needs and adapt to different scene changes.

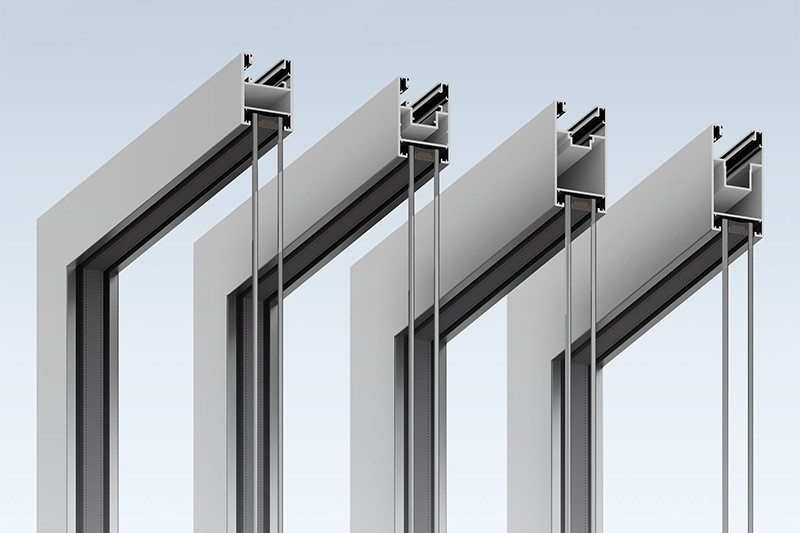

A variety of optical enterprise solutions are available
■ Meet the needs of different customers.
■ According to different
projects, a variety of light combinations are matched, and the strength of the
door leaf and the size of the visible surface can be flexibly set to meet
different application scenarios and customer customization preferences.

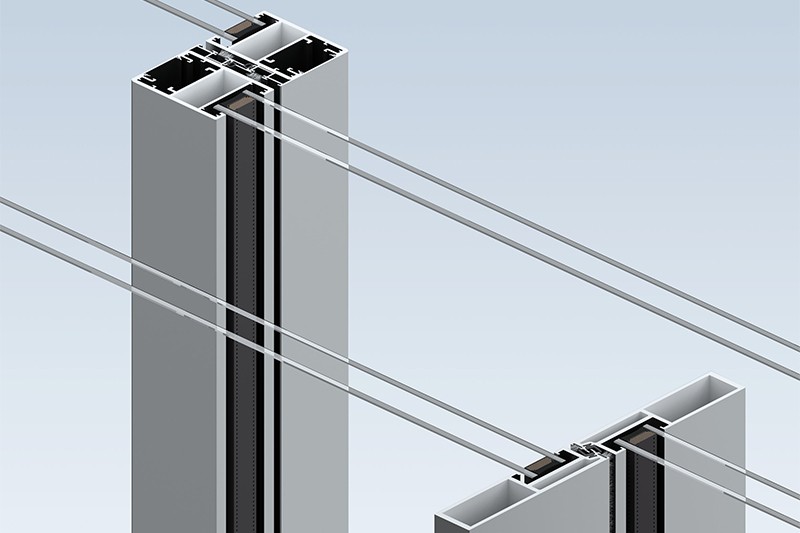

Equipped with standard hook and very narrow hook options
■ There is a considerable atmosphere, and
the atmosphere is stable.
■ Sliding doors can be equipped with the
popular wide and narrow light enterprises, with the aesthetic trend
of catering to the wide field of view and the panoramic
design of the long-span opening.

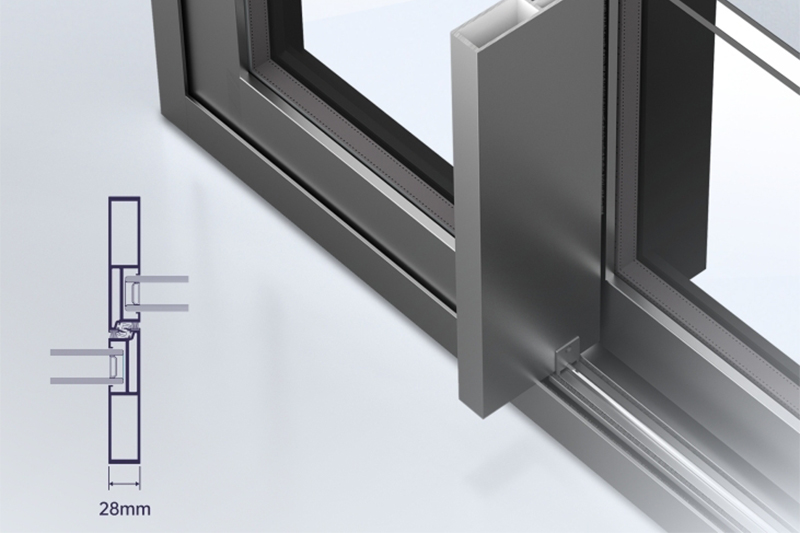

28mm extremely narrow reinforced hook enterprise
■ Steady as Mount Tai Facing the storm head-on.
■ The slender
and visible surface of only 28mm strengthens the hook design, which
realizes the panoramic design while ensuring the hook strength of the
large-size door, and provides the convenience of the handle for the
door leaf.

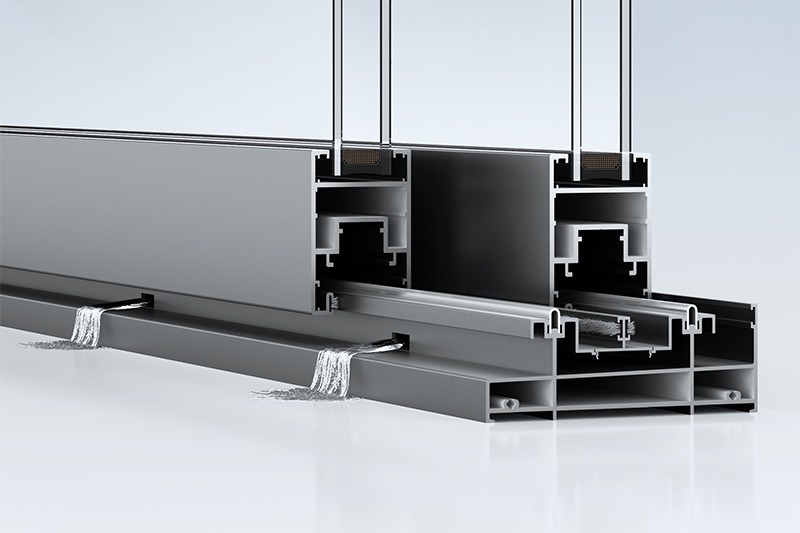

New high-track design
■ Upgraded appearance Optimized watertightness.
■ The special
lifting door high-rail sealing structure realizes efficient drainage by the
height difference of the track: the effective rainwater infiltrates into the
room and the drop is produced by the stepped design, which makes the drainage
smoother and the waterproof effect better.

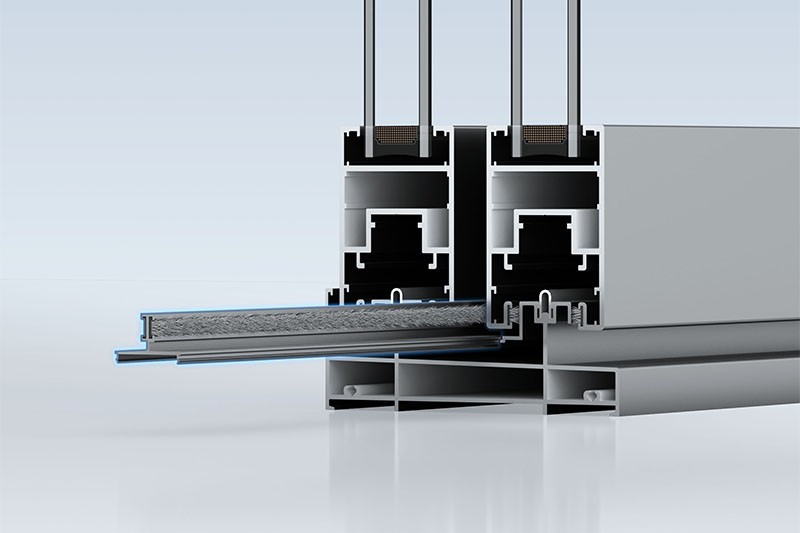

A central seal is added to the track
■ Seamless, layer-by-layer sealing.
■ The new track of OB series
sliding door features an insert between the inner and outer rails to enhance the
airtightness of the door hook and the central connection of the track.

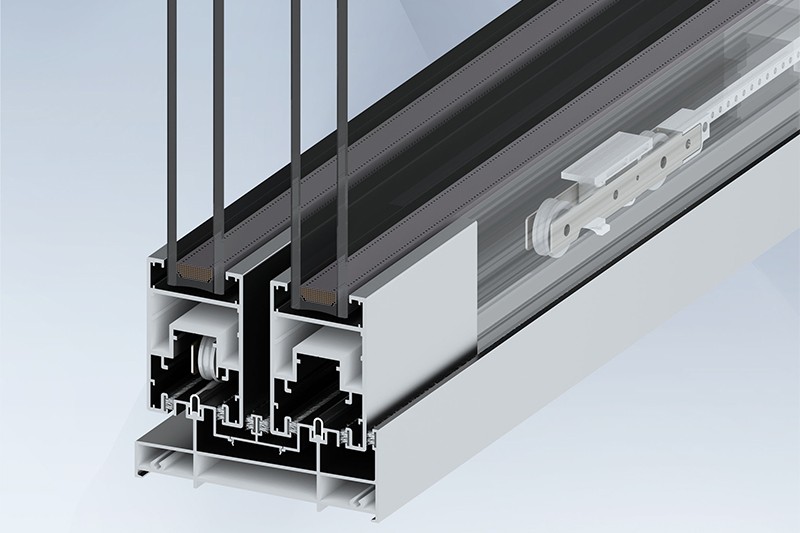

Optional lifting and pushing scheme
■ 300kg high load-bearing and high-sealed.
■ The 76mm and 100mm
sliding doors of OB series are equipped with push-pull or lifting
sliding functions, so as to achieve large-size sash and high
airtight and watertight effect, with a maximum load capacity of
up to 300kg/fan, the perfect combination of
large-size function and economy.
Product parameters
|
Thickness of the connecting part |
2.0mm/3.0mm |
|
Insulating glass |
5+20A+5 |
|
Thickness of frame |
2.0mm |
|
Visual surface of the connecting part |
50*100mm / 50*68mm / 50*76mm |
|
Depth of frame |
two rails 126mm / three rails 190mm |
|
Color |
Porcelain Swimming Gray, metallic platinum gray |
|
The thickness of profile |
1.8mm, the XS original ecological aluminium T5-6063A |
|
Surface treatment |
imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection). |
|
Hardware accessories |
with CIVO own design hardware handle |
|
Standard glass |
with Xinyi brand insulating glass 5+20A+5 |
|
Sealing strip |
EPDM sealing. |
|
Production process |
with embedded overall frame, the door sash adopts a 45-degree angle, with a solid structure, better at air tightness, 6-layer wool strip sealing design, superior sealing and sound insulation effect. |
|
Standard mesh |
comes with standard 07#304 stainless steel diamond mesh, which has a 90 degree bending and tightening process. |
|
Rail customization |
have two rails, three rails with mesh, high and low rail, low rail, and copper strips for choice. |

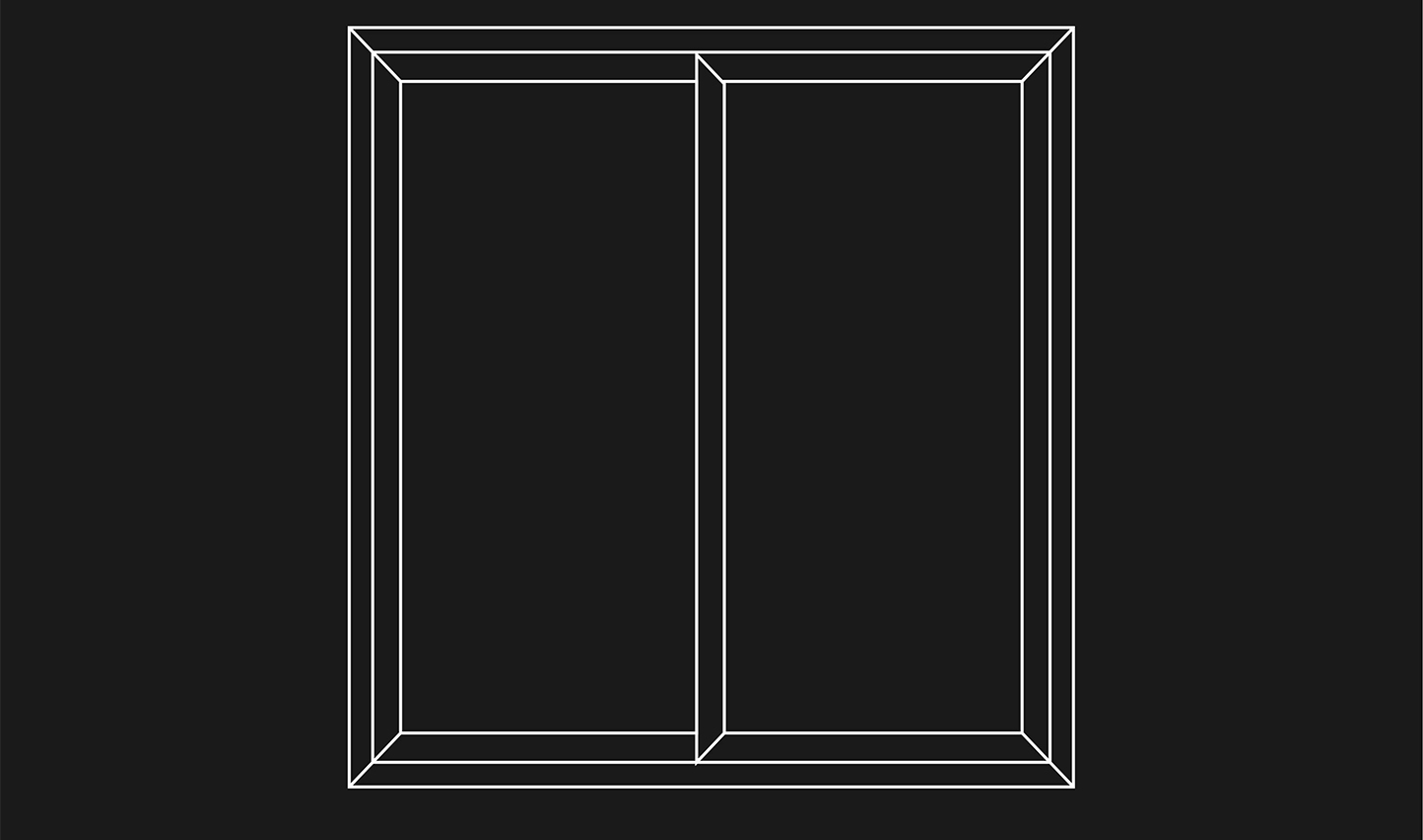

Two rails sliding door

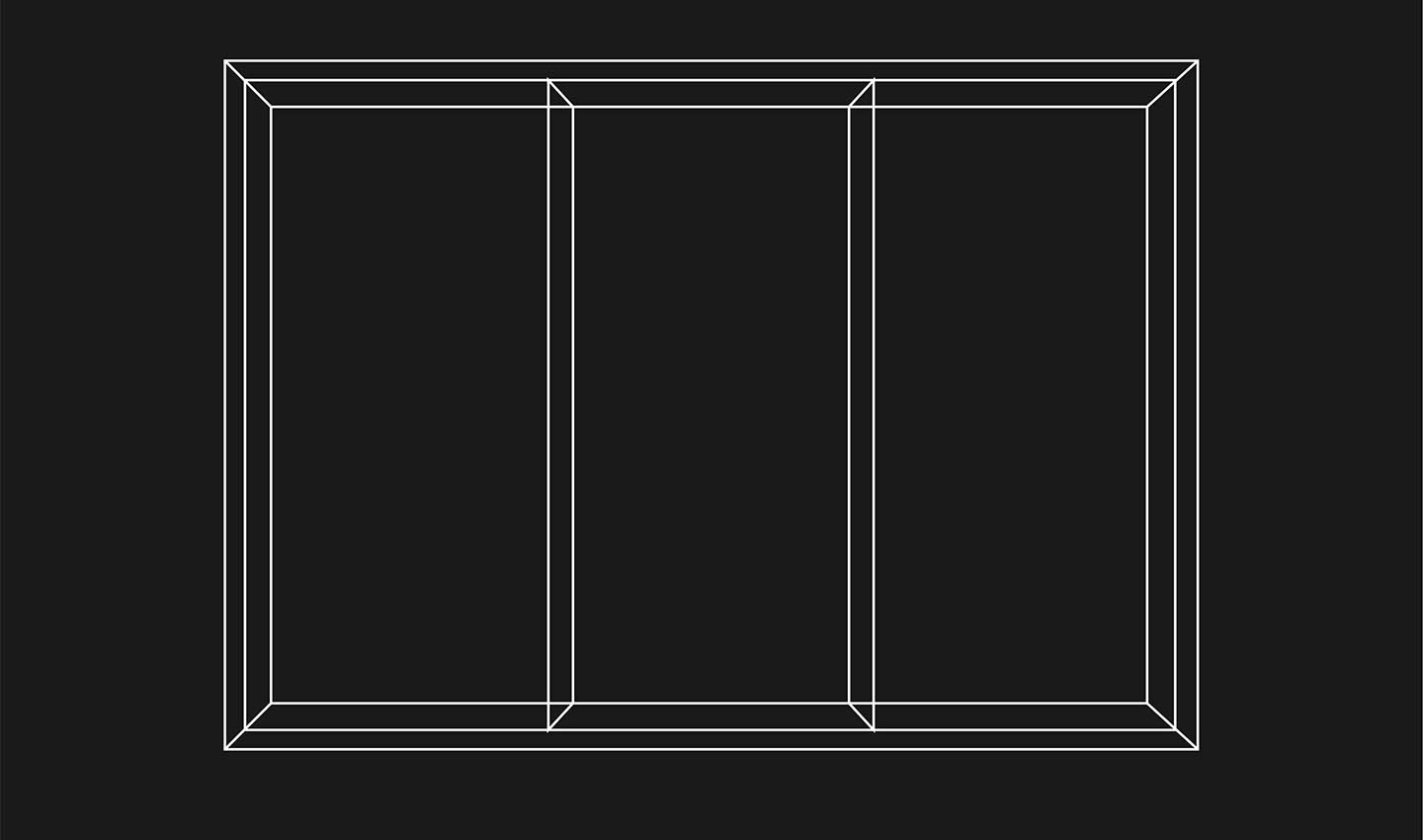

Three rails sliding door
01 metallic platinum gray
02 Porcelain Swimming Gray
03 dark grey
04 light grey
05 Champagne grey
06 silky black\matt black
07 silky white
