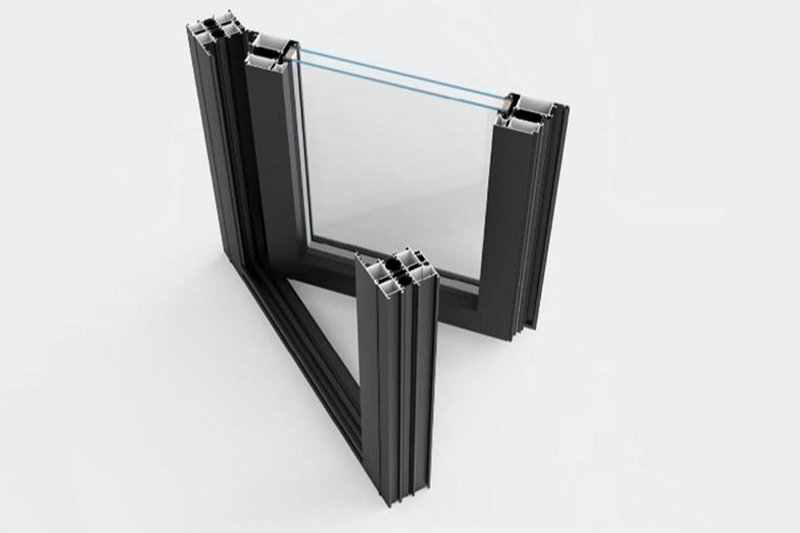

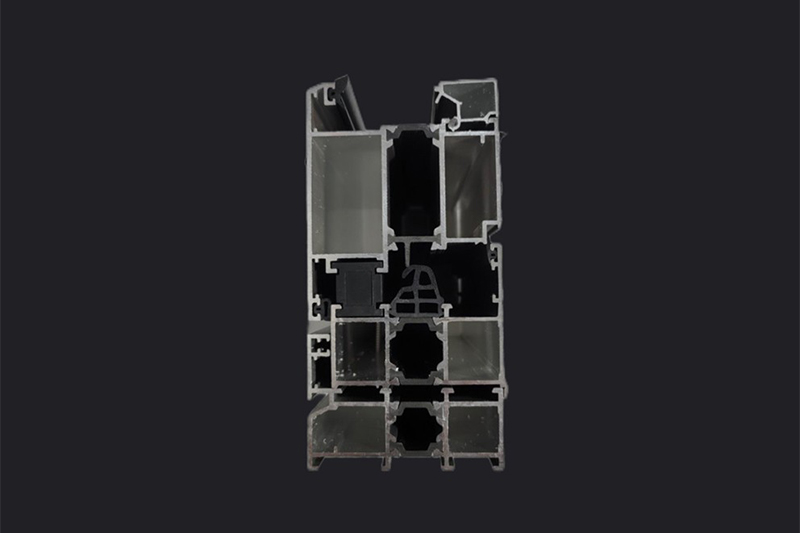

Multi cavity insulation profile
■ Superior energy-saving and thermal insulation performance.
■ The window frame adopts a three chamber structure, which greatly improves the sound insulation, heat insulation and load-bearing performance.

Internally and externally flush design

High quality CMECH hardware handle
■ Simple, unique, fashionable and generous.
■ Exquisite craftsmanship, stylish and atmospheric, high anti-corrosion performance, surface treated with anodizing or spraying technology, smooth and delicate hand feeling.

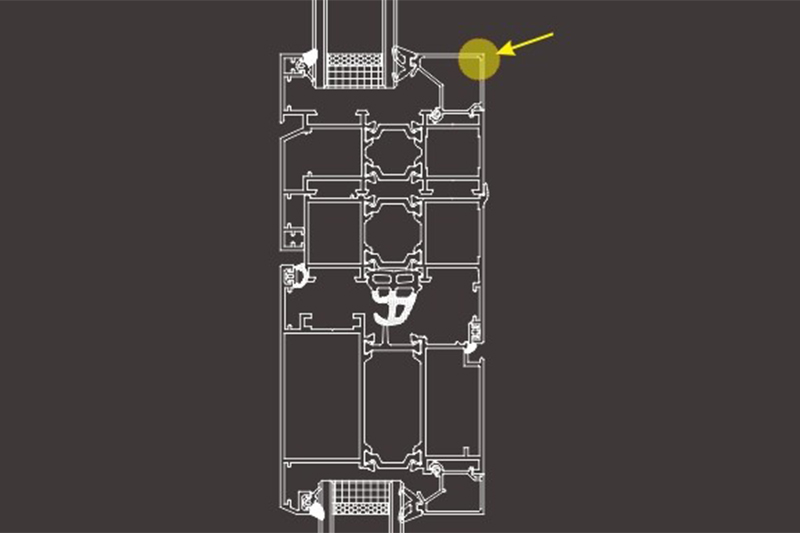

Small square crimping design
■ Visual feast, safe and stress resistant.
■ The small square crimping design, improves the wind resistance performance of the window frame, making the doors and windows safer, while also achieving a visually narrow edge effect.

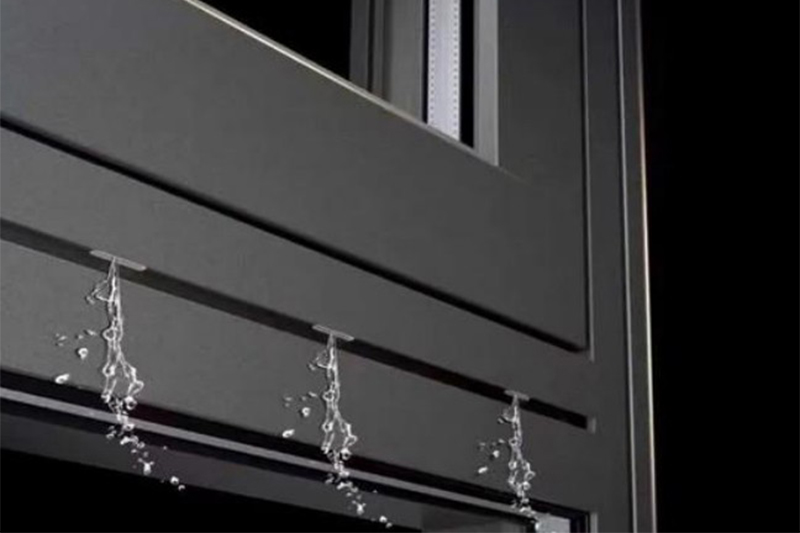

Hidden drainage design
■ Smooth drainage and beautiful appearance.
■ The concealed drainage structure design is adopted, and the self weight principle of water is effectively used to make the drainage more smooth and prevent rainwater from flowing back. The rainwater can be quickly discharged out of the room without fearing of the storm.

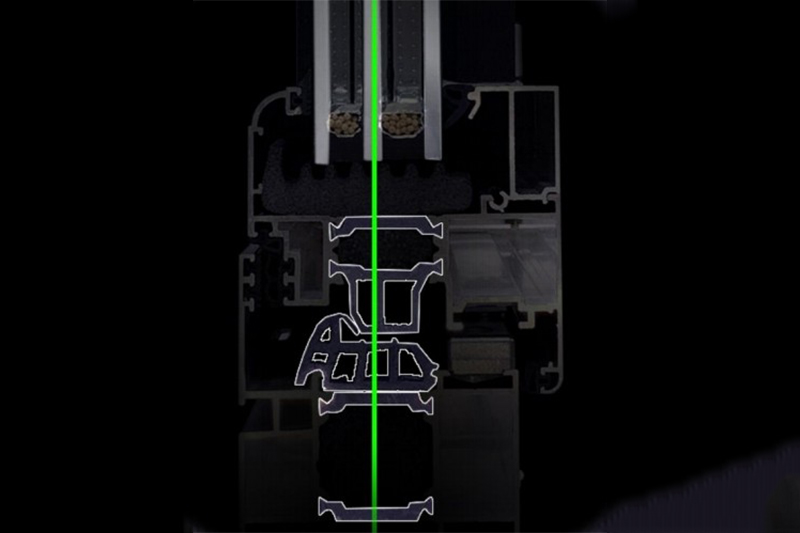

Vertical isotherms design
■ Anti cold air and heat insulation, keep the temperature.
■ With PA66 insulation strip and vertical isotherms design, which has effectively block the transfer of cold air and heat.

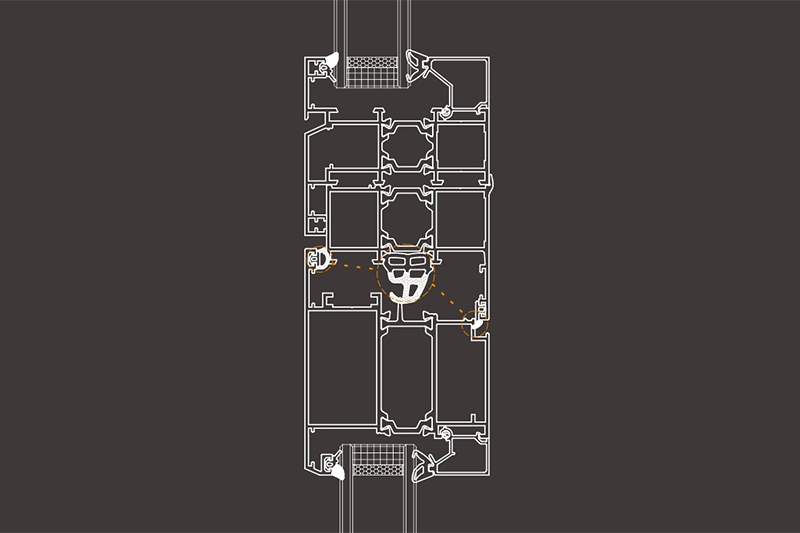

Three sealant strips
■ Surrounded by insulation layers.
■ EPDM sealing strip has excellent aging resistance, abrasion resistant and weather resistance, which has improved the water and air tightness of doors and windows, has a long service life.

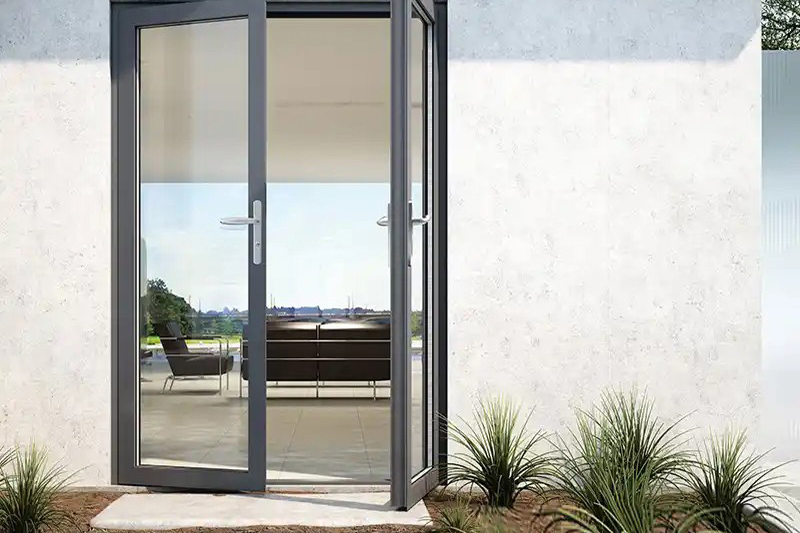

Thermal break double door and casement door with bidirectional selection
■ Ensure home safety with higher standards of strength and thickness, making the load-bearing and compressive performance of doors and windows superior, and meeting the high demand of modern people for home quality.
Product parameters

Thickness |
1.4mm |
Width |
72mm |
Sash |
89mm |
Fly screen |
65mm |
Insulating glass |
5+20A+5 |
The thickness of profile |
1.4mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
with Aksu metal powder coating, the thickness of the painting layer can be 35-40UM |
Standard accessories |
with a complete set of American brand Cmech full system, handle without a base. |
Standard glass |
with Xinyi brand insulating tempered glass 5+20A+5, to fix both the inner and outer side of the glass without glue. |
Sealing strip |
EPDM sealing. |
Production processing |
both the main frame and the sash adopt the glue corner brace processing, flat frame for inner and outer side, hidden drainage. |
Glass crimping |
with the fixed standard square crimping, makes the line more beautiful. |
Insulating strip |
PA66 Nylon insulation, all the thermal insulation strips are designed on the same isotherm. |
Applicable places |
self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies. |

01 metallic platinum gray

02 starry coffee

03 dark grey

04 light grey

05 Champagne grey

06 silky black\matt black

07 silky white
