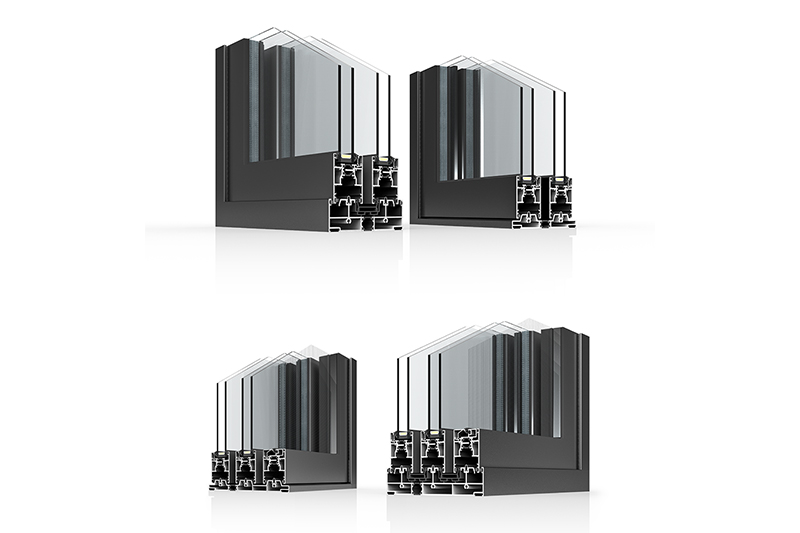

More freedom of customization
■ Multiple options · Choose as you like.
■ The system has two-track and three-track yarn, high-rail and low-rail broken bridge module fixed sashes, corner doors, window doors with guardrails, electric sliding doors, etc.

Better performance
■ Six seals and multiple · isolation.
■ Nylon hook edge profiles and double-layer composite rubber strips are interlocking, and the thermal insulation performance and sealing treatment are more perfect.

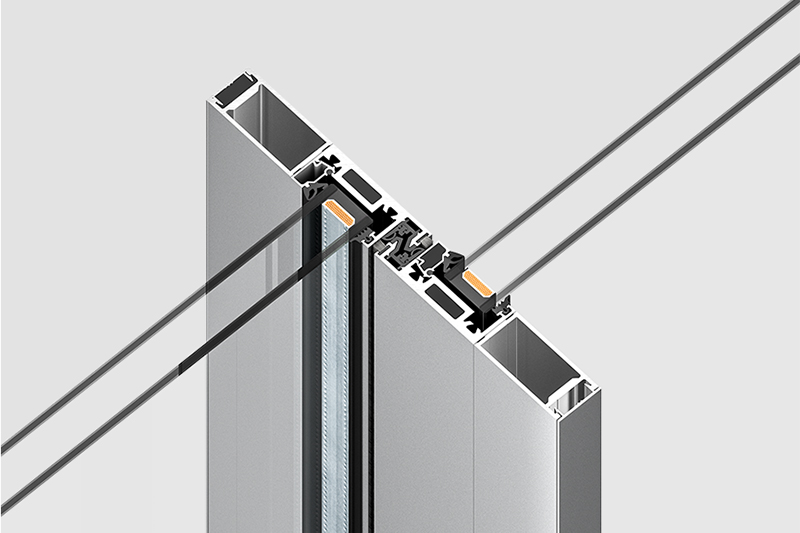

Extremely large field of view
■ The ultra-narrow hook enterprise · beautiful scenery is fully revealed.
■ The 28mm reinforced ultra-narrow hook is set up with four central seals, and the surface is flat without concave and convex, and the lines are more concise and pure.

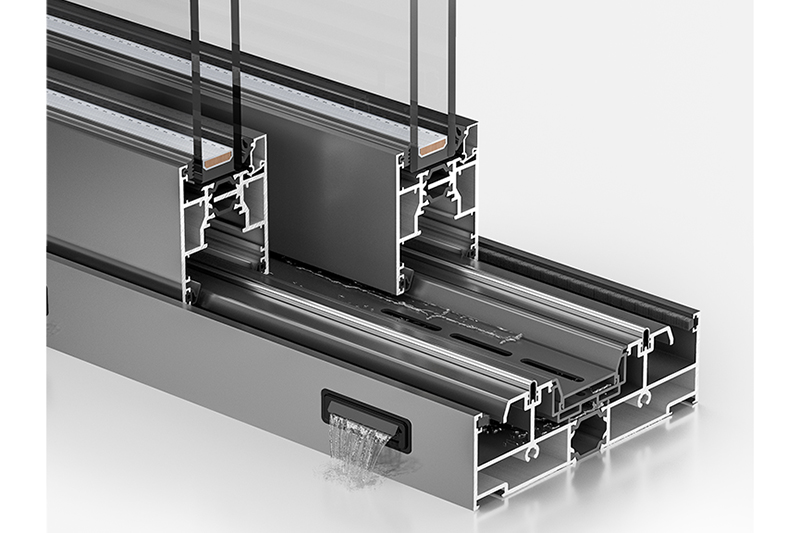

Integrated drainage track
■ Layer by layer filtration and smooth drainage ·
■ The coherent double-layer filter cover effectively prevents backfilling, while the drainage holes along its length enhance watertightness.

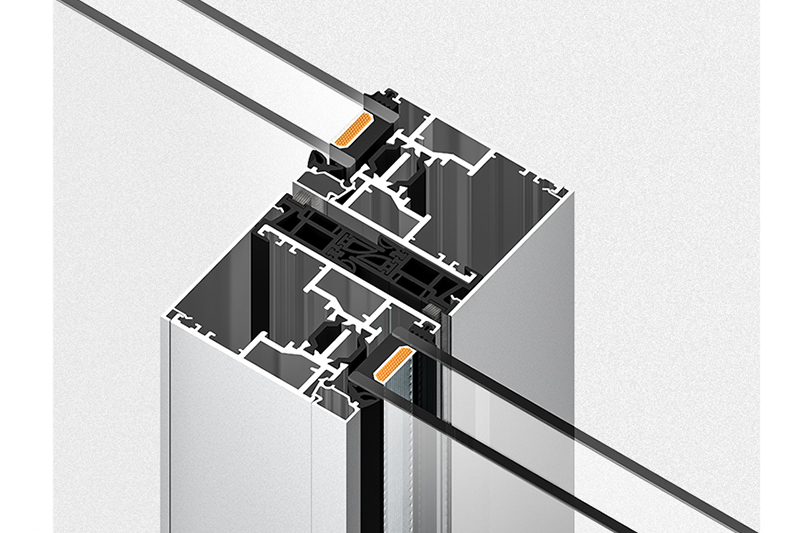

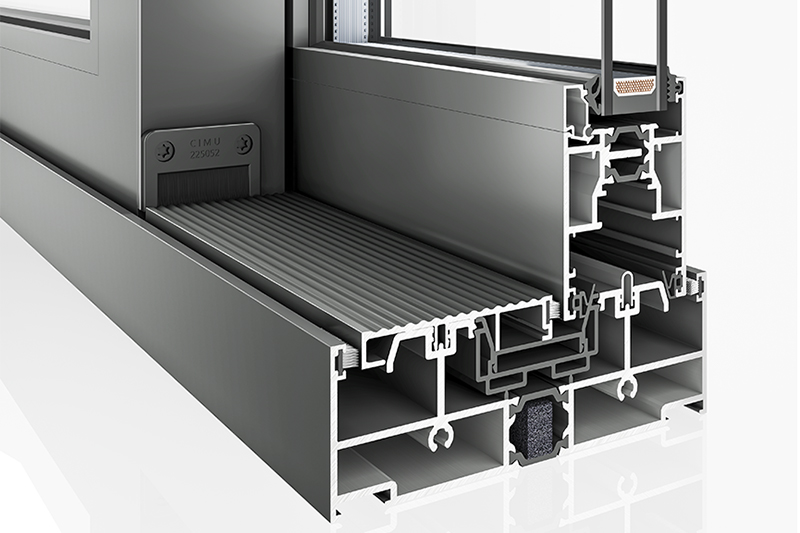

Multiple sealing frames
■ Reliable and · safe and beautiful.
■ The frame wraps the fan structure, and the multiple adhesive strips are tightly attached to the fan framefixed fan design, which is suitable for the non-slip threshold buckle cover to be smoother and more beautiful.

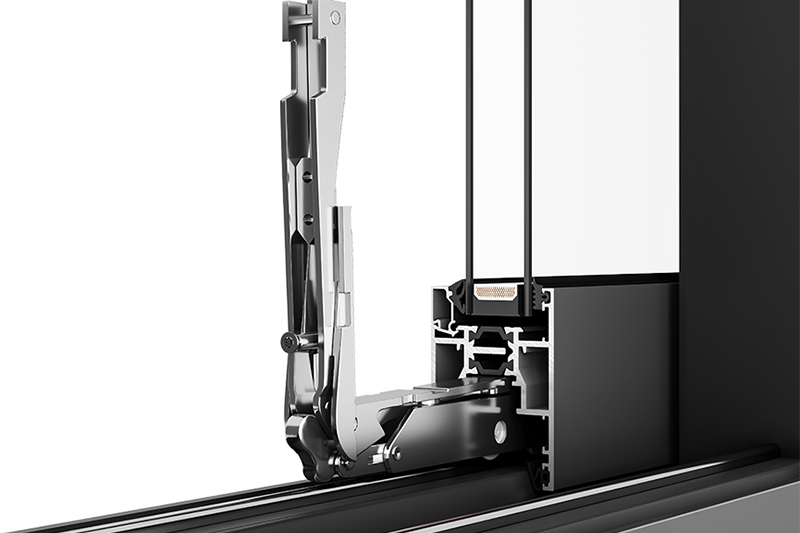

High load-bearing design
■ Sporty and · durable and comfortable.
■ The high-load pulley module allows a single leaf to weigh up to 500KG, a single leaf size up to 3.5mx3.2 m, and a maximum opening width, so you can enjoy unlimited comfort.

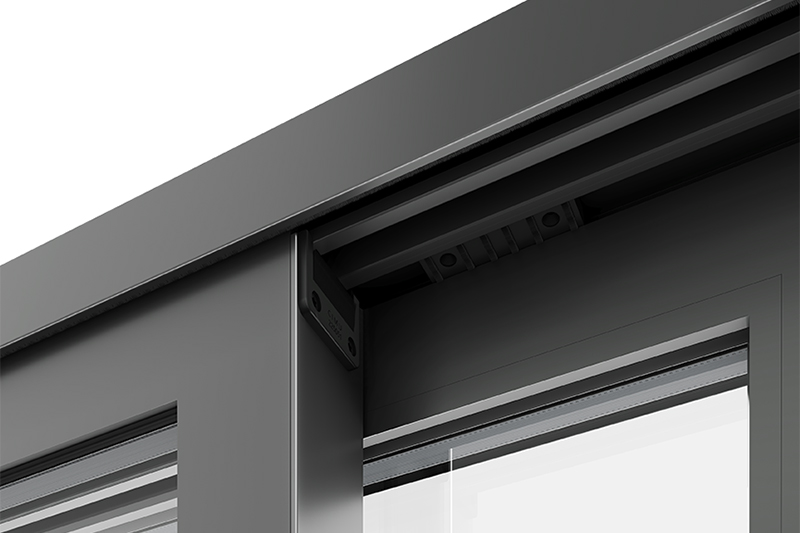

High sealing design
■ The special device is · airtight
■ The upper and lower tracks are respectively provided with corresponding sealing devices to improve the sealing performance of the corners of the door leaf and the hook edge.

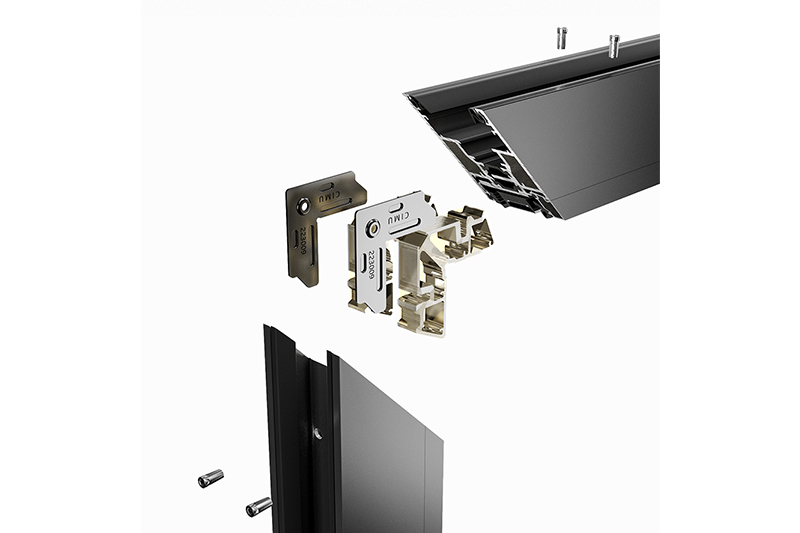

High-strength design
■ Integrated corner code and stable connection ·
■ The angle and T connection are seamlessly bonded using glue-injected angle codes and flat pieces to ensure the strength of the frame and a smooth surface.
Product parameters

Product parameters
Thickness |
2.2mm |
Width |
two rails 150mm / three rails 225mm |
Sash |
76mm+28mm / 88mm+40mm (two for choice) |
fly screen |
76mm / 88mm |
insulating glass |
standard 5+20A+5 or 5+27A+5 for choice |
The thickness of profile |
2.2mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
imported ceramic electrophoretic technology (13194974) to reduce indoor light pollution(environmental protection). |
Hardware accessories |
with a complete set of American brand Cmech full system, |
Standard glass |
standard with Xinyi brand insulating tempered glass 5+20A+5, or have 5+27A+5 for choice. |
Sealing strip |
EPDM sealing. |
Production processing |
all sash group use the corner brace joint processing, equipped with reinforced mullions, have a stable structure. |
Glass crimping |
All glasses in sash use inner and outer glue strip, looks more beautiful. |
Insulating strip |
PA66 Nylon insulation |
Rail customization |
have two rails, three rails with mesh, high and low rail, low rail for choice. |

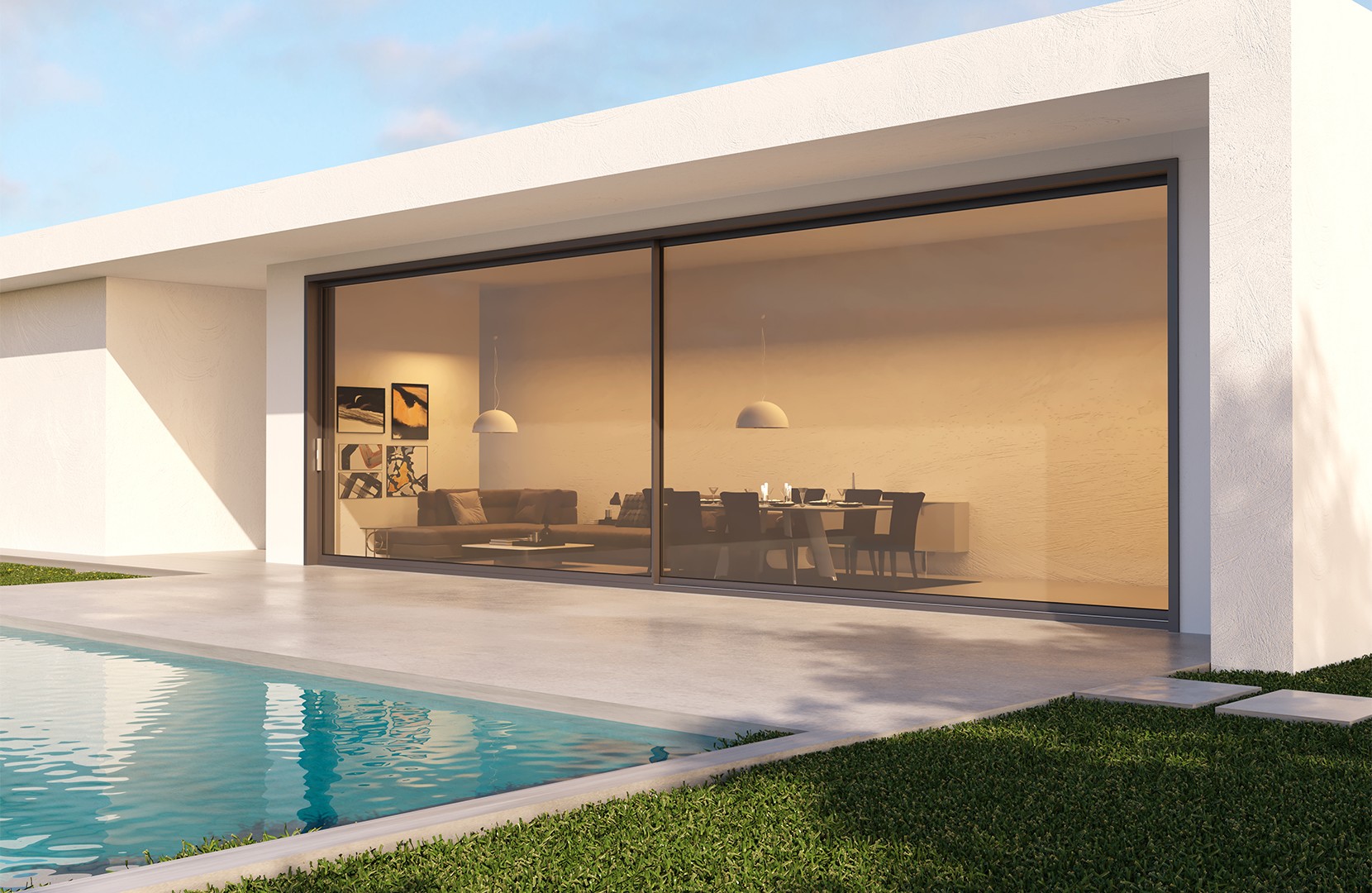

Applicable places |
self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies. |

01 metallic platinum gray

02 black gold

03 Porcelain Swimming Gray

04 dark grey

05 light grey

06 Champagne grey

07 silky black\matt black

08 silky white
