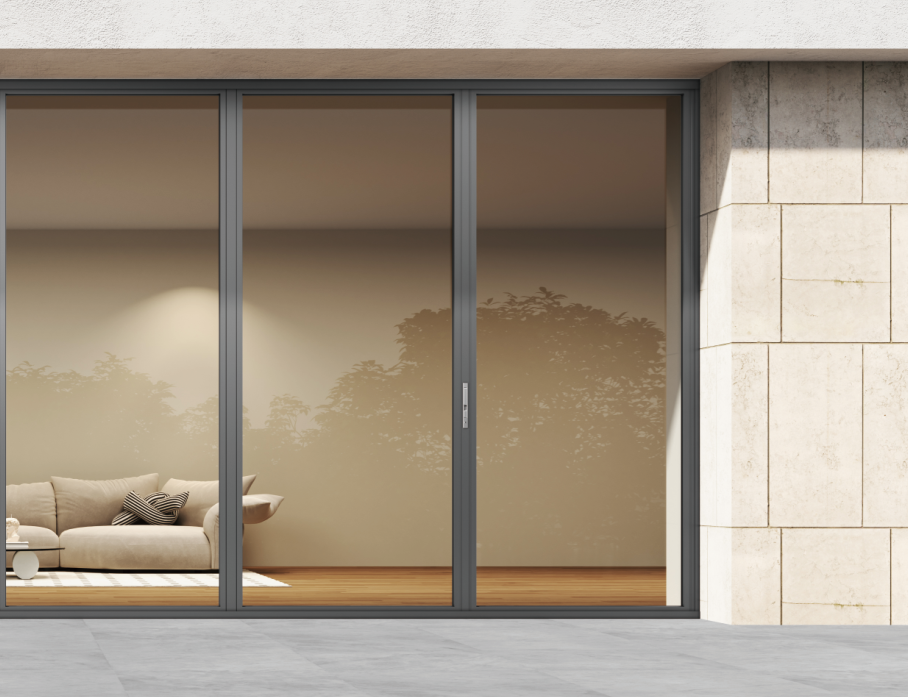

ES 82 Aluminium folding sliding system

Product structure analysis

Two Appearance Design Versions

■ Exposed Hinge - Standard Design Version
■ Concealed Hinge - Special Design Version

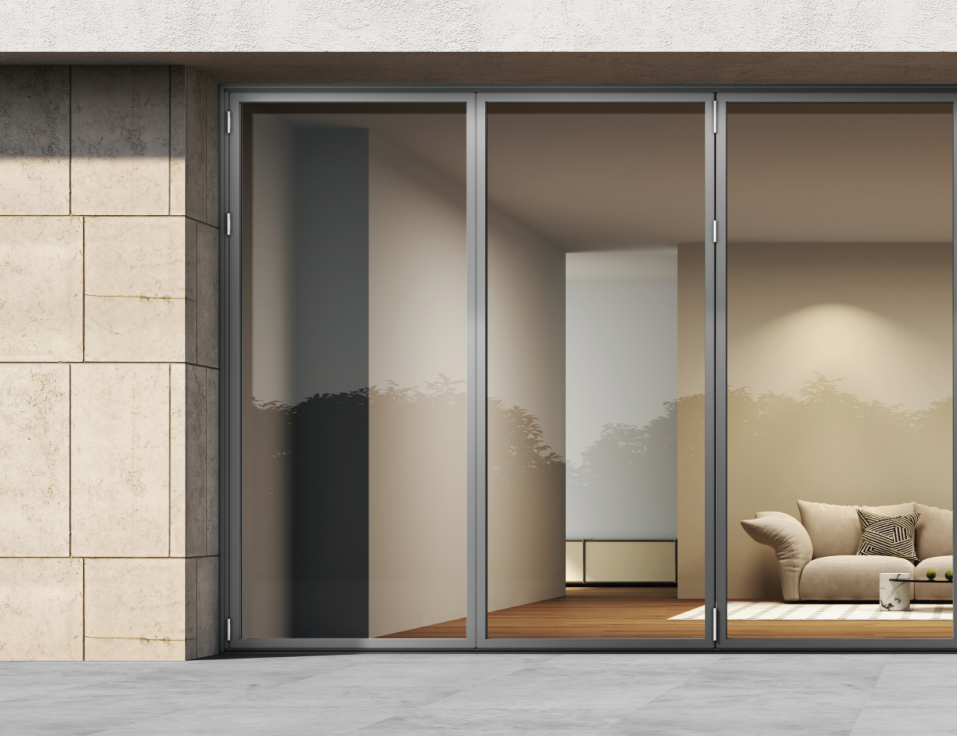

Exposed Hinge

■ It has a flat fan frame structure to reduce exposed contacts. What is special is that the top and bottom of the door are the same profile, no additional overlapping compensation material.

Concealed Hinge

■ All hardware components are fully concealed for a cleaner appearance.

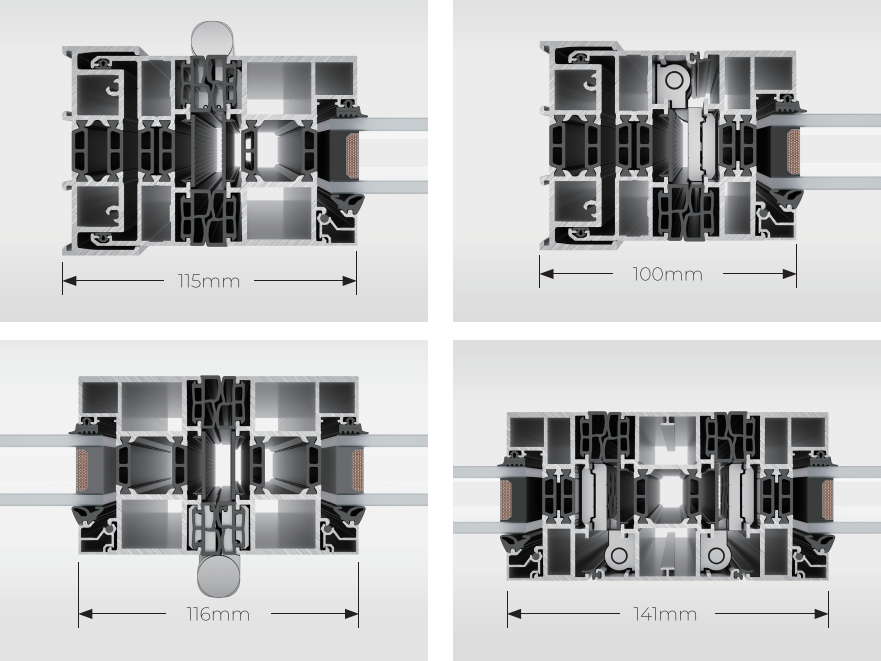

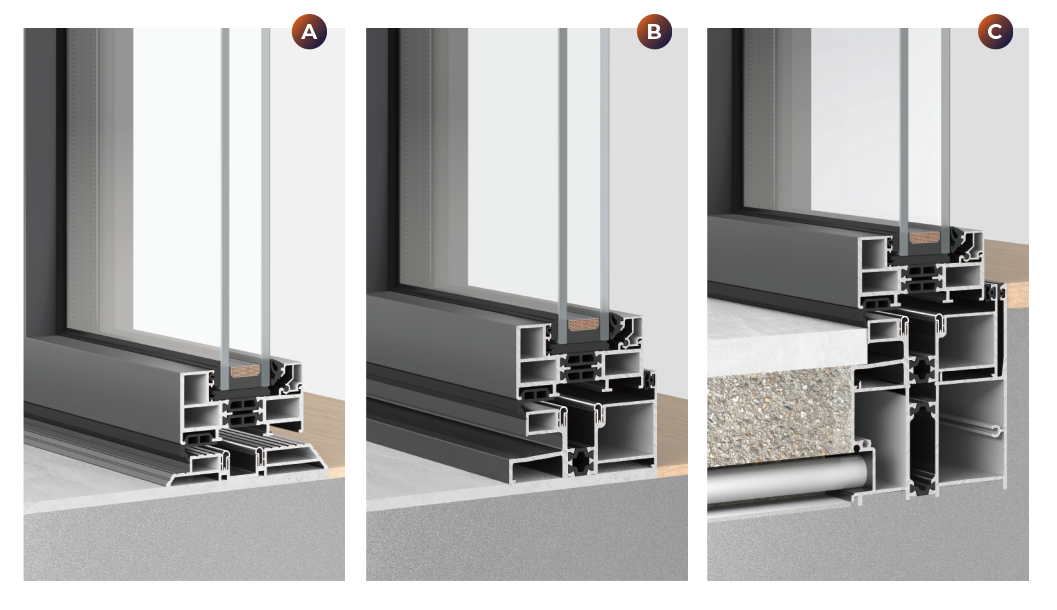

Three Types of Tracks Available

■ Option A: Low bottom track
■ Option B: Standard bottom track
■ Option C: Embedded high watertight bottom track

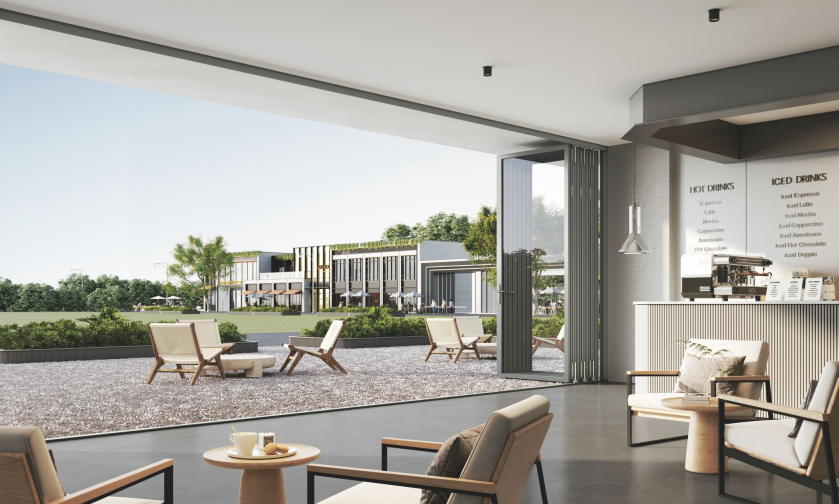

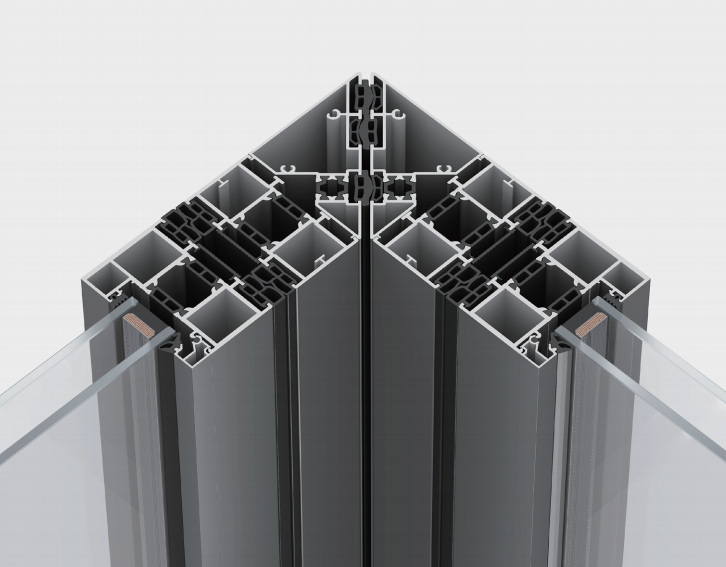

Special open extension

■ The opening function is almost unrestricted,with odd-numbered corners or even-numbered corners. The unique corner opening solution provides the maximum opening width, making more spacious building space and more avant- garde style.

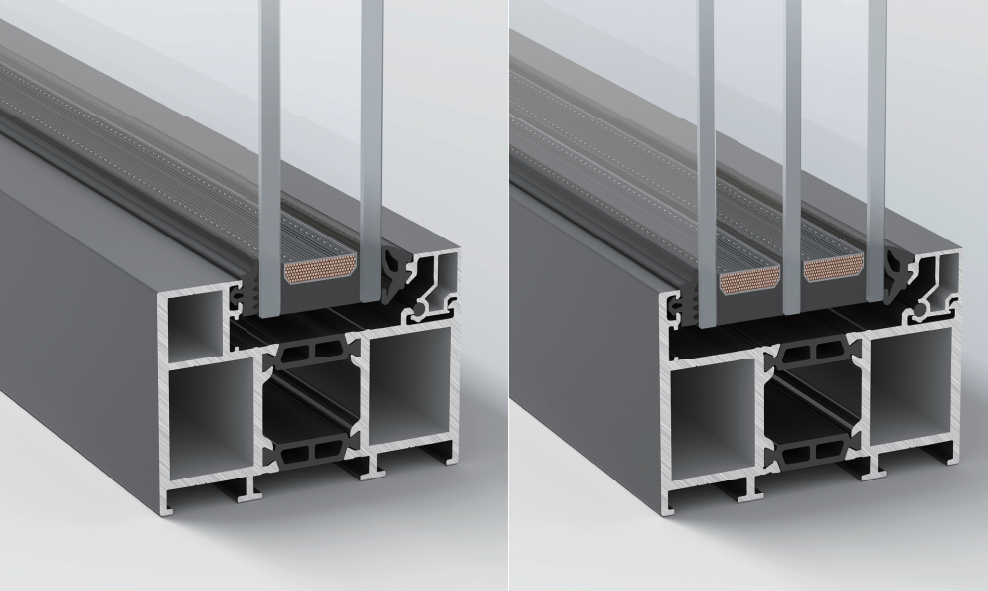

Flexible glass configuration

■The ES 82 FD is a highly flexible system with a variety of door leaf and glass pressure line for option, providing flexible glass design for projects with different climates and requirements, such as thermal insulation, sound insulation, security, etc.

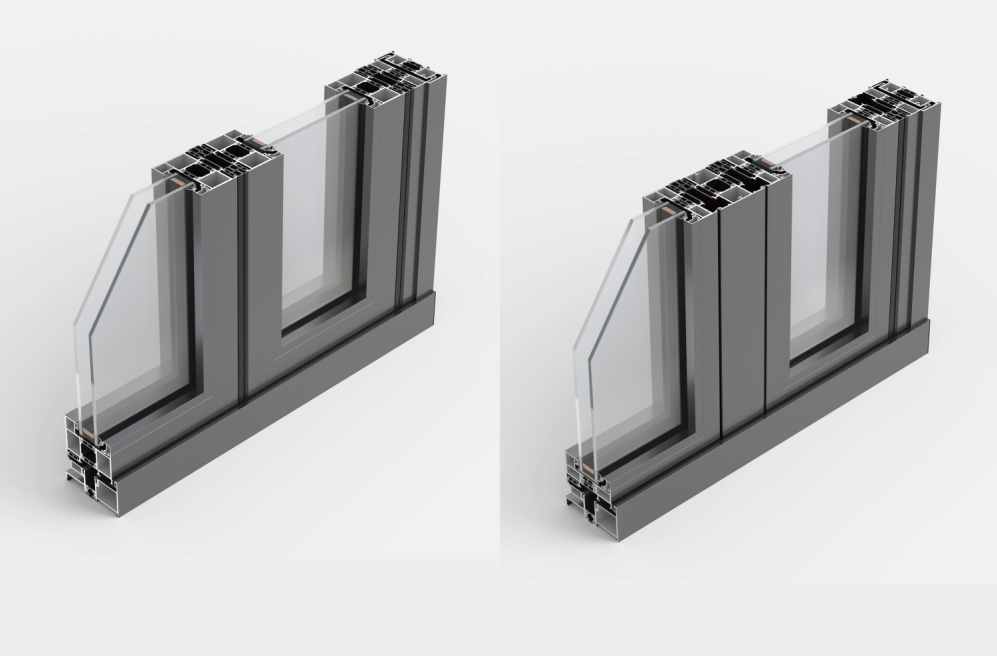

Unified frame structure Slim fan-frame viewing surface

The ES82FD features two styles of sash profiles within a unified frame structure, delivering a minimalist modern look while ensuring an unobstructed wide view.

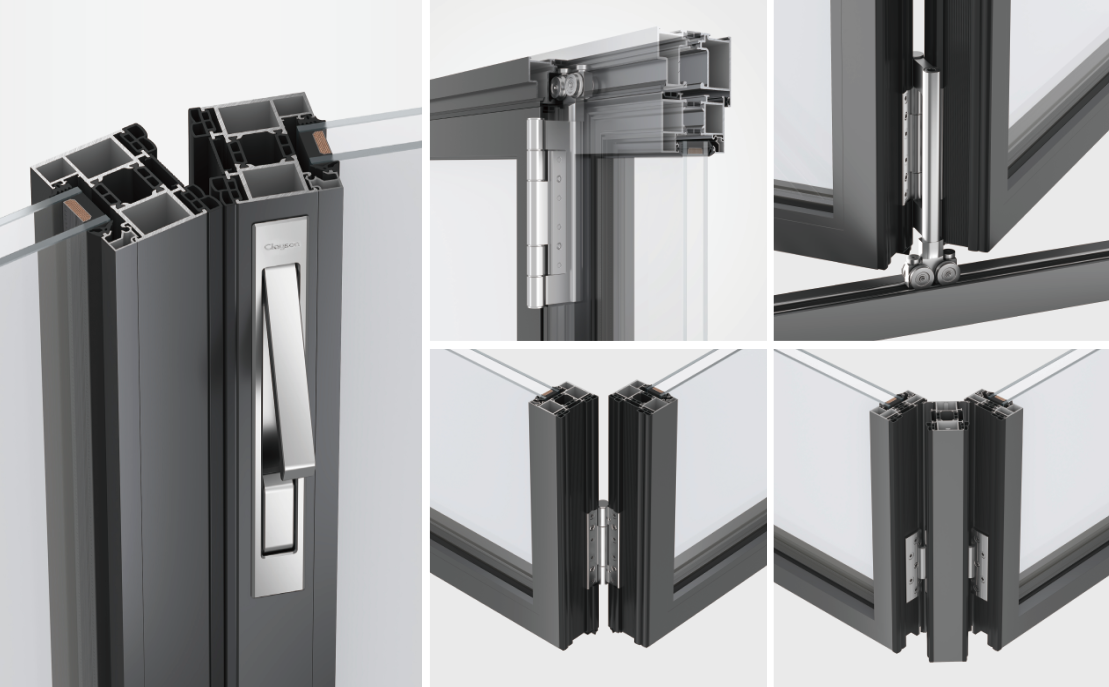

Premium Hardware Components

■ Hardware is an important part of the new system tailored for Company ES82 FD. Maximum hidden components. meet the extremely high requirements of function and design.

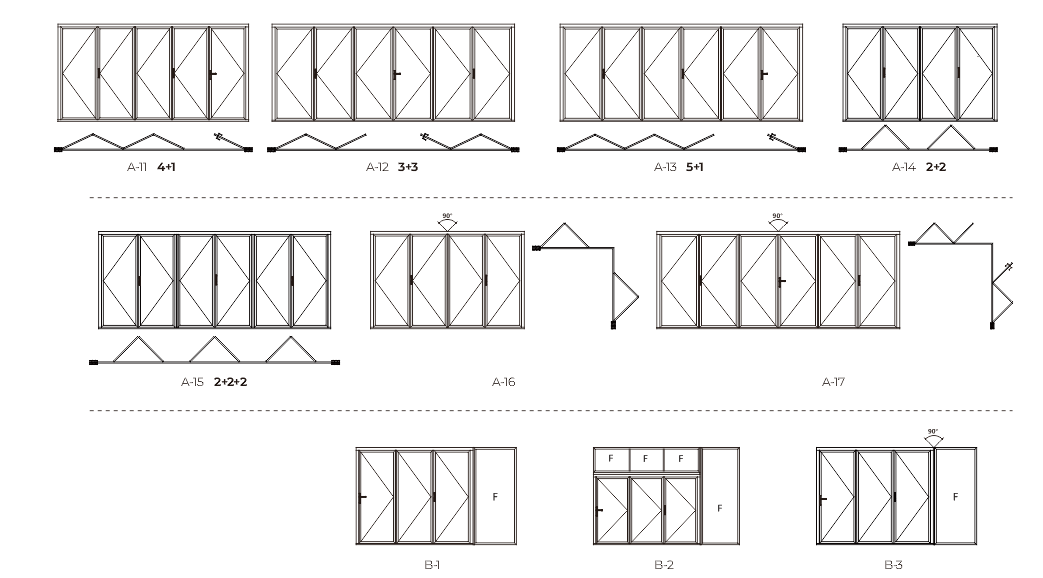

Multiple Opening Options

■ Corner, singular number, evennumber, odd-even mixed,with fixed window, innerfolding, outer folding andother types can be realized,free combination of openingmethods, almost unlimiteddesign types.

Product parameters

Product parameters

Leaf frame depth	74mm
Frame depth	82mm
Leaf frame front view width	51mm/36mm (INVISO)

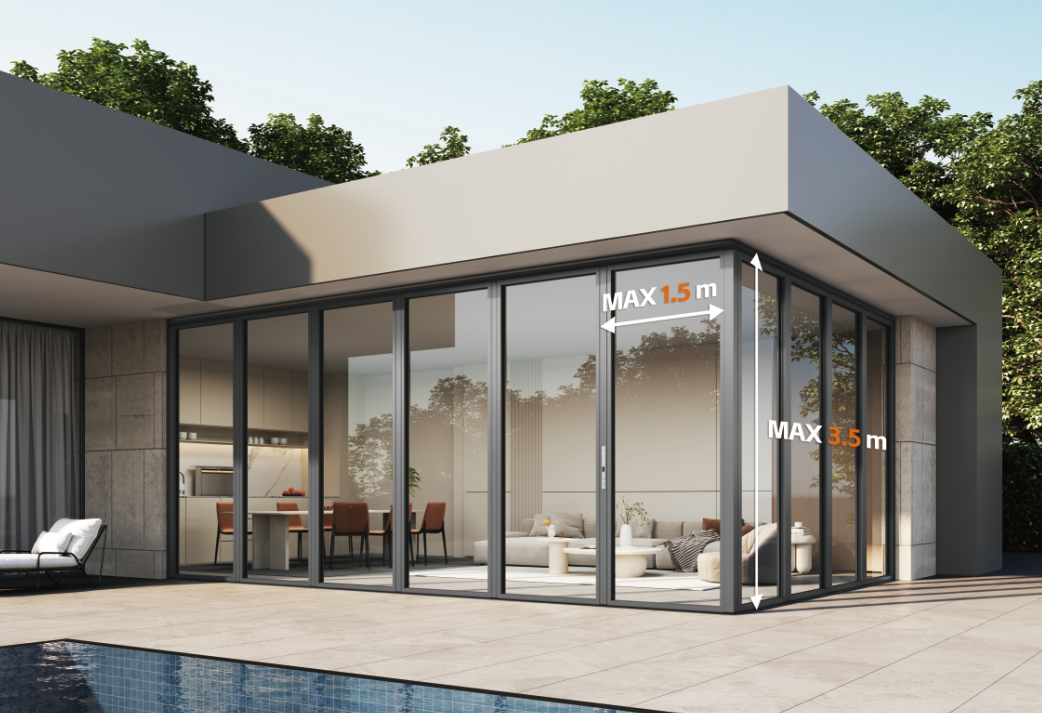

Maximum width of leaf panel	1500mm
Maximum height of leaf panel	3500mm
Maximum leaf panel weight	150kg
Hollow glass thickness	30~59mm
Watertight performance	700Pa
Air tightness	0.21m³/ (m.h)
Wind pressure resistance	≤5.0KPa
Insulation performance	K≥2.2
Sound insulation performance	Rw<40dB
