Performance slider 128 lifting and sliding systems

Product structure analysis

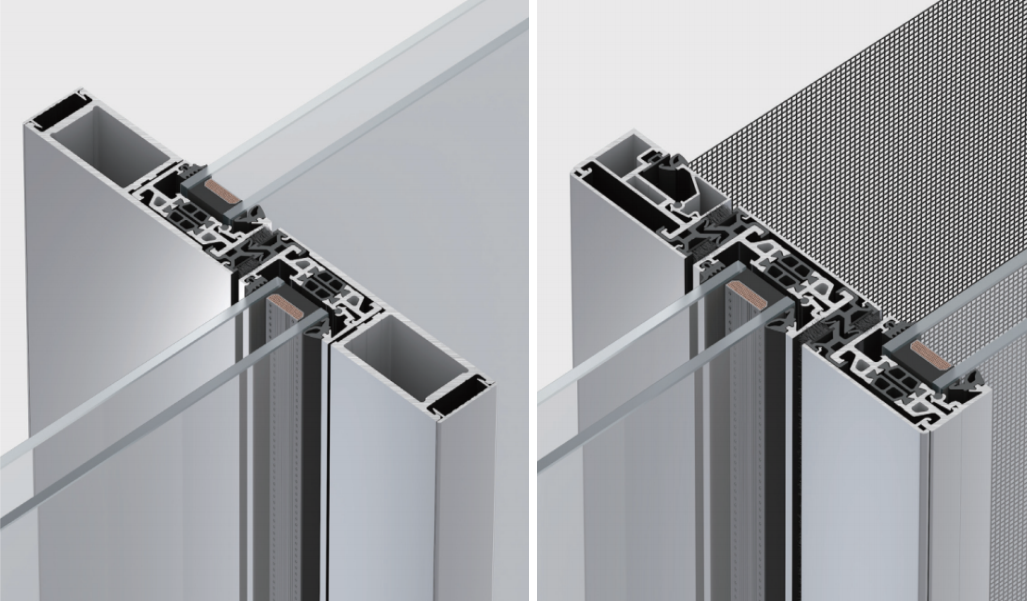

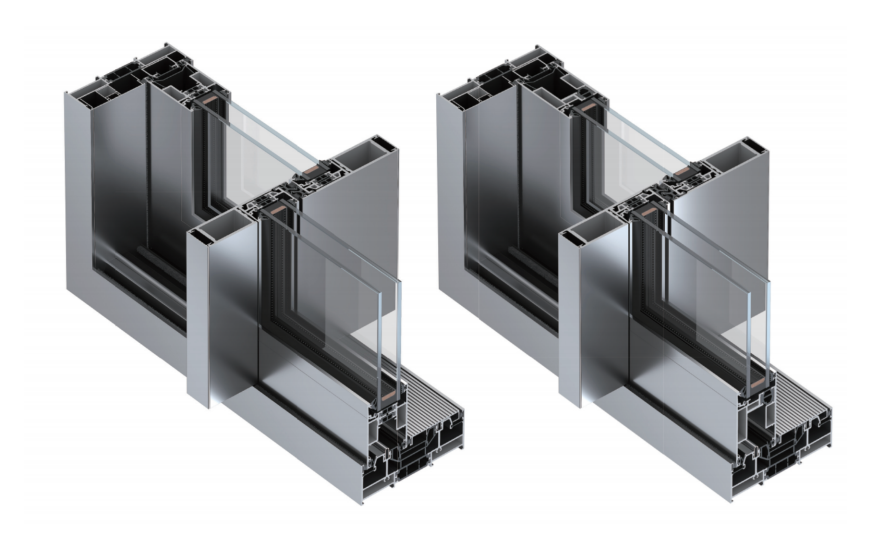

Two different frame and sash combinations

■ Regular 72mm panel
■ Special 84mm panel

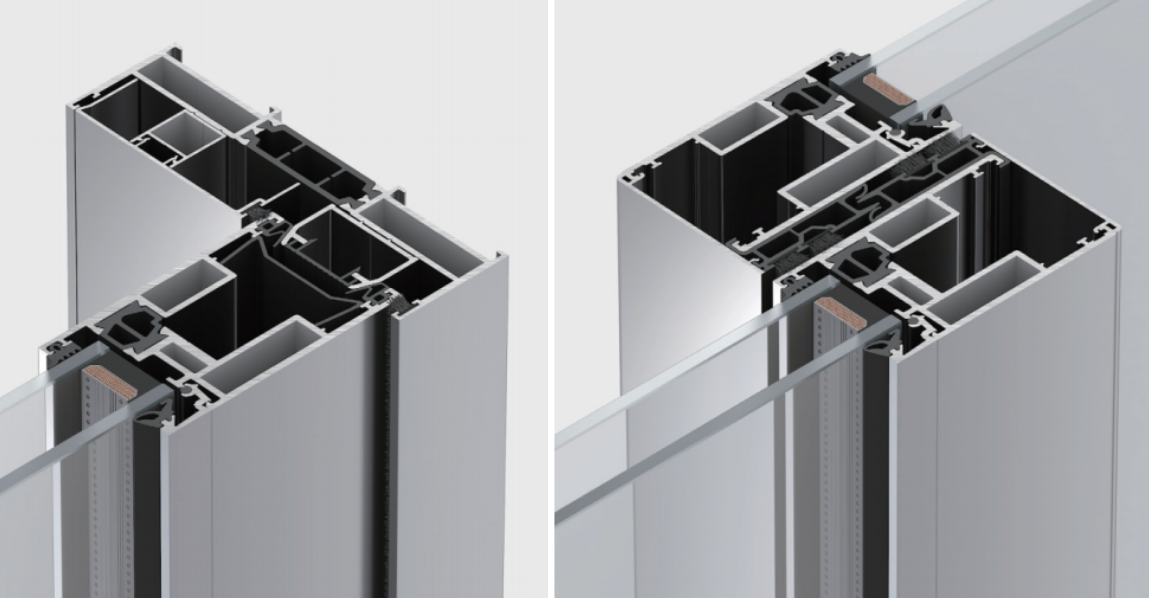

72mm panel frame+32mm hooking frame (90°T connection corner)

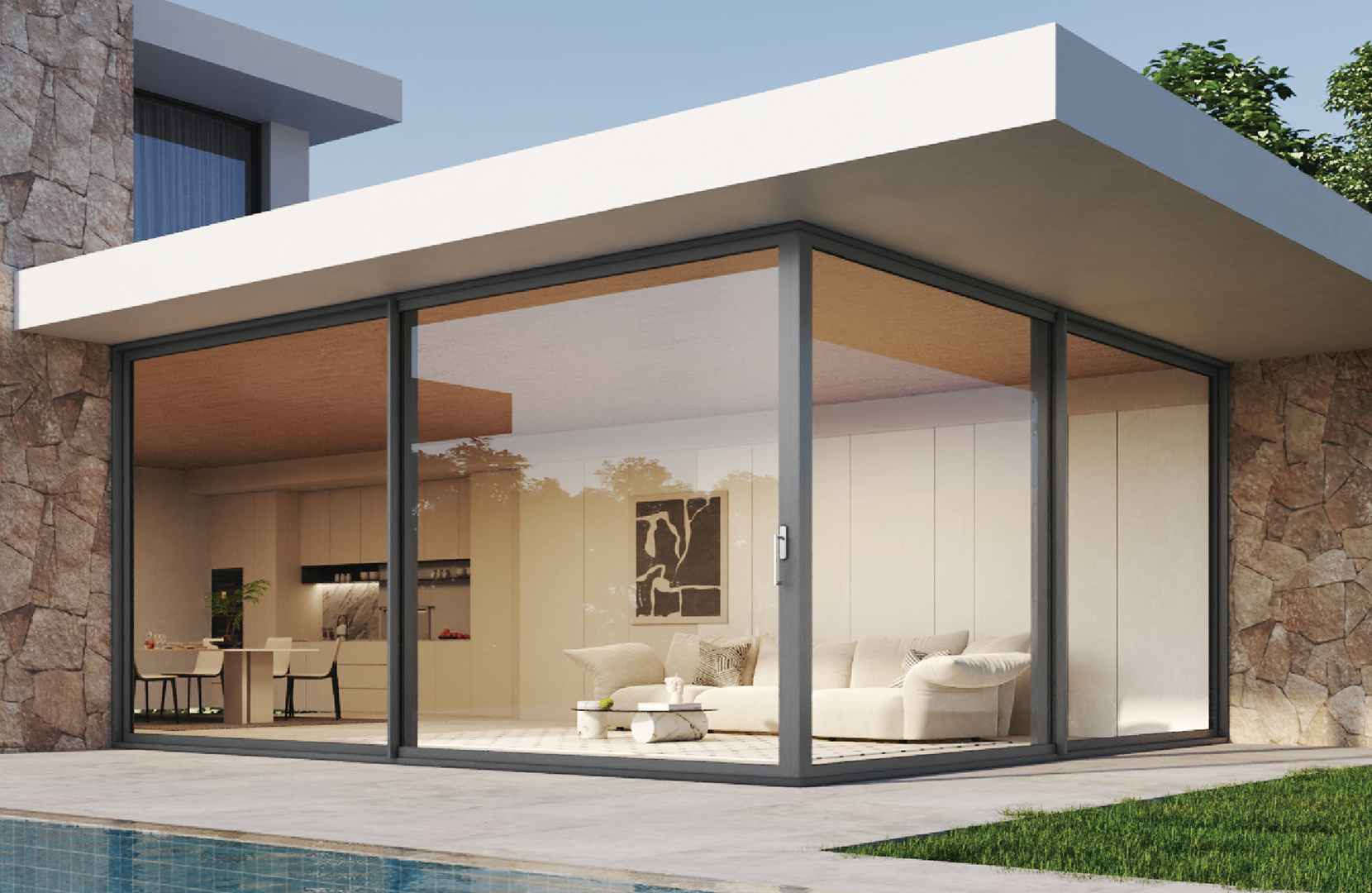

■ Large areas of glass and slim profiles form the visual core of the panoramic sliding door. The PS128 lifting slding system continues this aesthetic language, offering two design forms of slim profiles. With a minimalist structure, it achieves a wide field of vision and integrates beauty, functionality and performance.

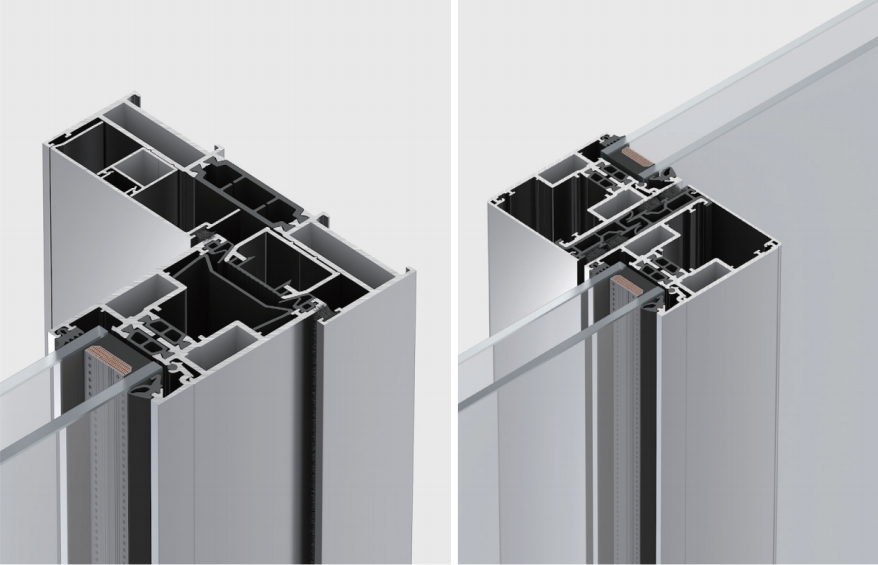

72mm panel frame+72mm hooking frame (45° connection corner)

■ Meanwhile, the single door of this system can bear a load of up to 600kg, and it has the capacity to support super-large door panels, meeting the dual demands of modern buildings for transparency and structural reliability.

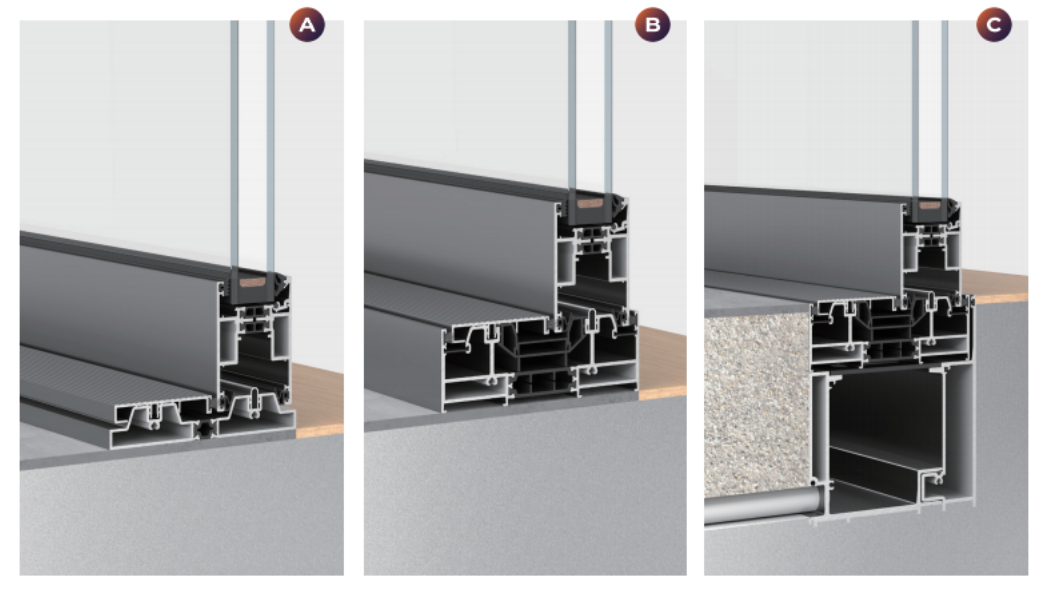

Three types of tracksFlexible application

■ Option A: Low bottom track
■ Option B: Regular high bottom track
■ Option C: Embedded high bottom track

Regular 72mm panel

■ The visible width of the panel is only 72mm, and the profile structure is further simplified. The equal-width hooking interlocking area integrates sealing rubber strips and wool strips. The central heat insulation hooking edge profile and the sealing rubber strip are precisely compounded into one, ensuring the continuity of sealing and heat insulation performance.

Special 84mm panel

■Designed specifically for extra-large door panels, with a visible width of 84mm, the profile structureis reinforced, significantly enhancing load-bearing capacity and stability. The load-bearing capacity of a single panel can reach 600kg. It is equipped with equal-width heat insulation hooks to ensure sealing and heat insulation performance.

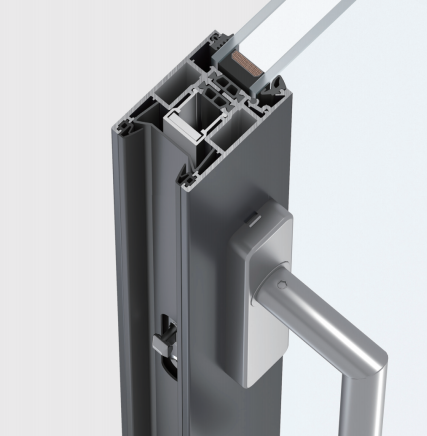

32mm narrow edge hook enterprise

Compatible with two option door panels, maximizing the transparency of the field of vision. Support flexible addition of mullions to meet the requirements of large-sized openings.This design integrates sealing, heat insulation and structural enhancement within an extremely small space of 32mm, achieving a unified benefit of the three. Non-thermal break and the heat insulation strip is invisible.

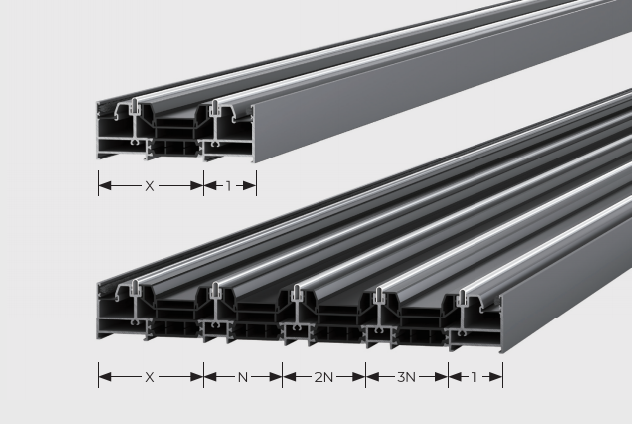

Modular DesignInfinite Expansion

■ Regular tracks unit: X+1 ·
■ Extension tracks unit: X+N+2N+3N+......+1

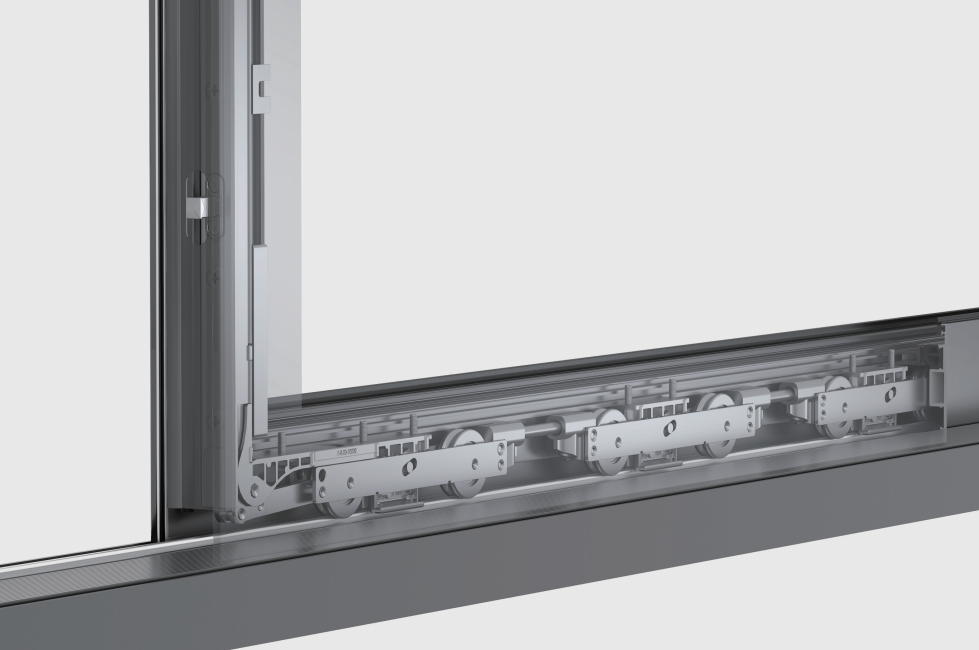

Concealed Hardware Design

■ The new PS128 lifting sliding system completely conceals the hardware accessory components. Even when the movable panel is in the open state, the fully covered design of its accessory slots makes the technical details unobtrusive, ensuring a more simple and unified visual presentation throughout the entire height view.

With new hardware system planning

■ Users can freely choose between sliding or lifting sliding opening way according to their needs. Only a few system components are required to switch between the two operation methods. The standard hardware slot design, applying the world's advanced hardware components, has achieved improvements in operational efficiency, safety guarantee and user comfort

World-Class Hardware Manufacturing

■ Applying world-class advanced hardware ensures doors and windows are more stable and of more reliable quality.

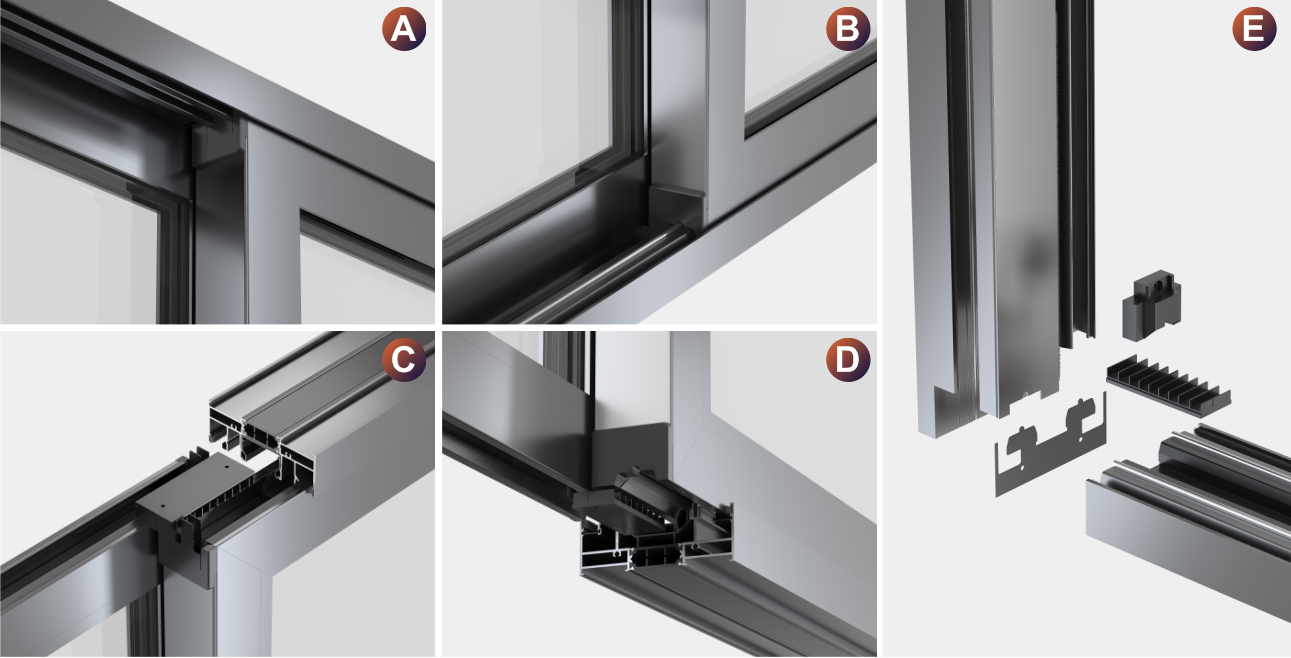

Rigid-flexible coupling Rigorous design

■ A: Top hooking plug
■ B: Bottom hooking plug
■ C: Top track middle plug
■ D: Bottom track middle plug
■ E: Border frame corner components

Product parameters

Product parameters

Mainly profile thickness	2.2mm
Thickness of the glass plate	≤37mm
Visible surface width of panel	72mm/84mm
Visible surface width of frame	40mm
Depth of trackframe	128mm
Maximum panel weight	600kg
Heat insulation performance	K≥2.0*
Thermal insulation performance	0.2<SHGC≤0.3*
Sound insulation performance	Rw<36dB*
Air tightness performance	0.75m³/ (m.h)
Water tightness performance	350Pa
Wind resisitance performance	<5.0KPa
