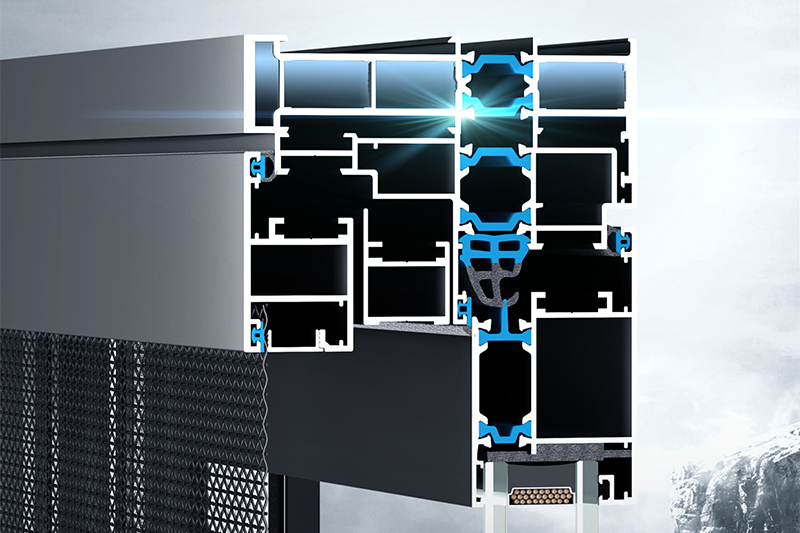

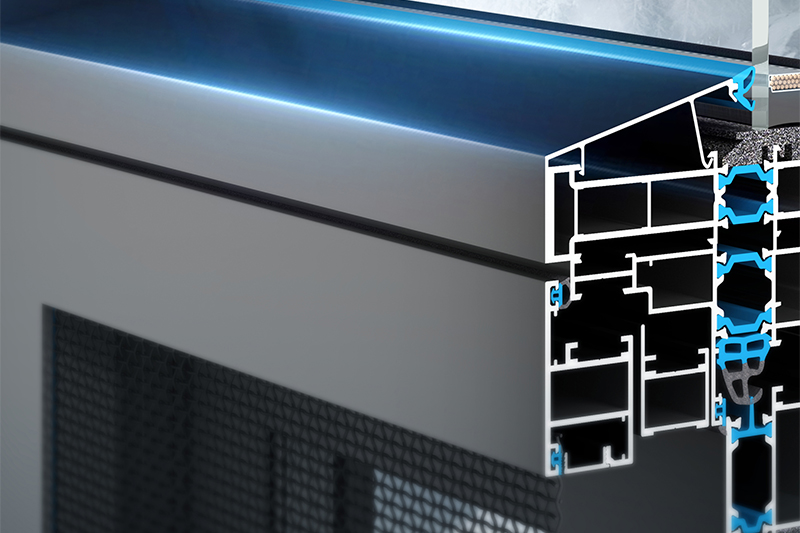

Cavities heat insulation profile
■ Superior energy-saving and heat insulation performance.
■ The window frame adopts a five-cavity structure, which greatly improves the sound insulation, heat insulation and load-bearing performance! Build a beautiful and comfortable life.

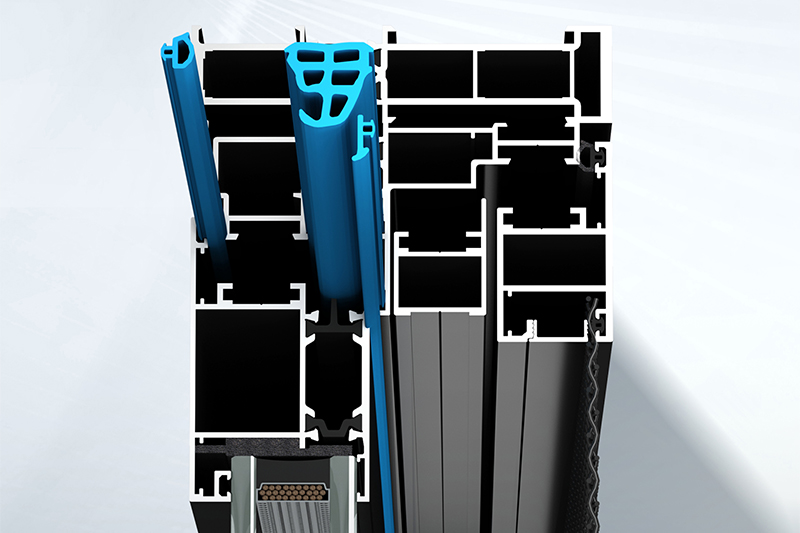

Three sealant strips
■ Surrounded by insulation layers.
■ EPDM sealing strip has excellent aging resistance, abrasion resistant and weather resistance, which has improved the water and air tightness of doors and windows, has a long service life, and effectively suppresses wind noise.
Crimping design
■ Visual feast, safe and compression resistance.
■ The oblique edge crimping design, improves the wind resistance performance of the window frame, making the doors and windows safer, while also achieving a visually narrow edge effect.

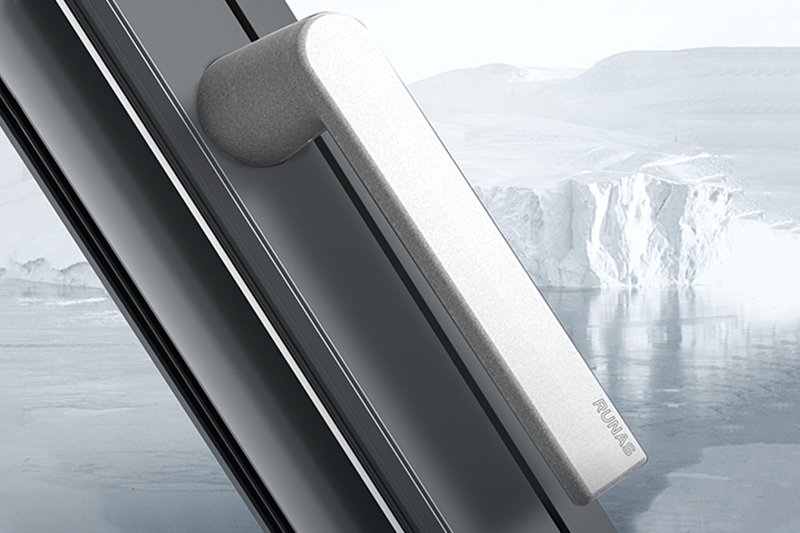

High quality metal handle
■ Simple, unique, fashionable and generous.
■ Exquisite craftsmanship, stylish and atmospheric, high anti-corrosion performance. The surface is anodized or sprayed with technology, and it is smooth and delicate when you touch it. The antibacterial rate is greater than 99.9%, leaving no trace when opened, simple and beautiful, and inhibiting bacterial growth.

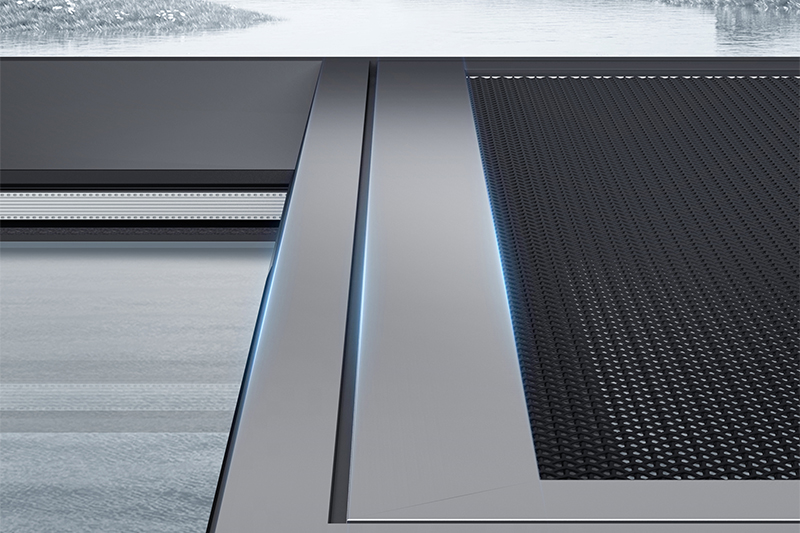

Internally and externally flush design
■ Surrounded by insulation layers.
■ Adopting and inner and outer flat frame design, the appearance is simple and flat, the craftsmanship is exquisite, shows a modern design sense.

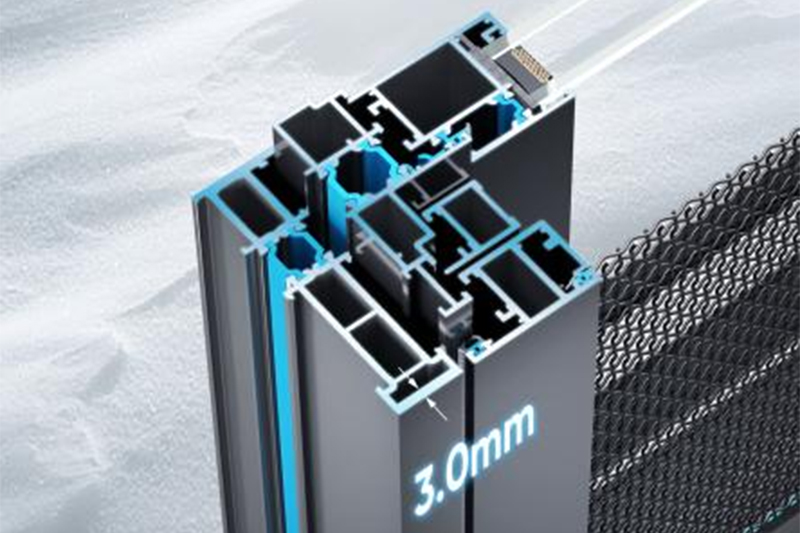

6063-T5 raw aluminium profile
■ Main load-bearing profile 3.0mm+ strom resistant (with a wall thickness of 3.0mm for higher strength).
■ Ensuring home safety with higher standards of strength and thickness, making the load-bearing and compressive performance of doors and windows, meeting the high demand of modern people for home quality, and conforming to the new trend of modern development.

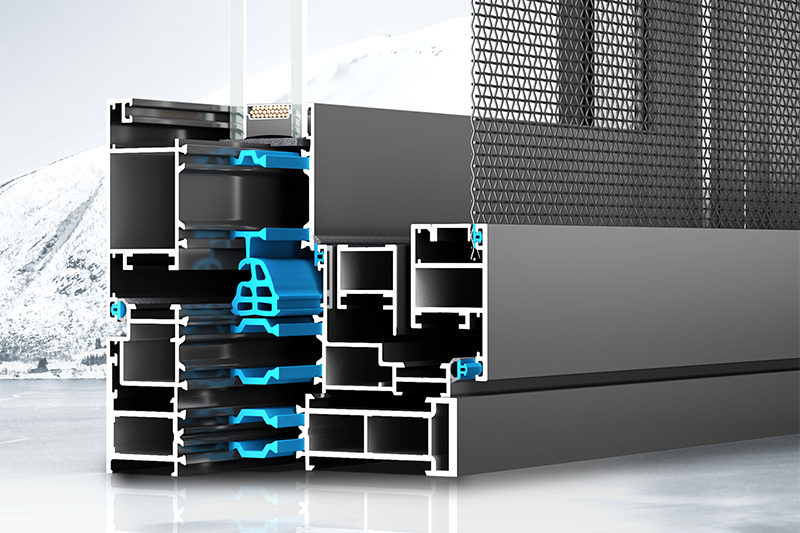

Vertical isotherms design
■ Anti cold air and heat insulation, keep the temperature.
■ With PA66 insulation strip and vertical isotherms design, which has effectively block the transfer of cold air and heat.

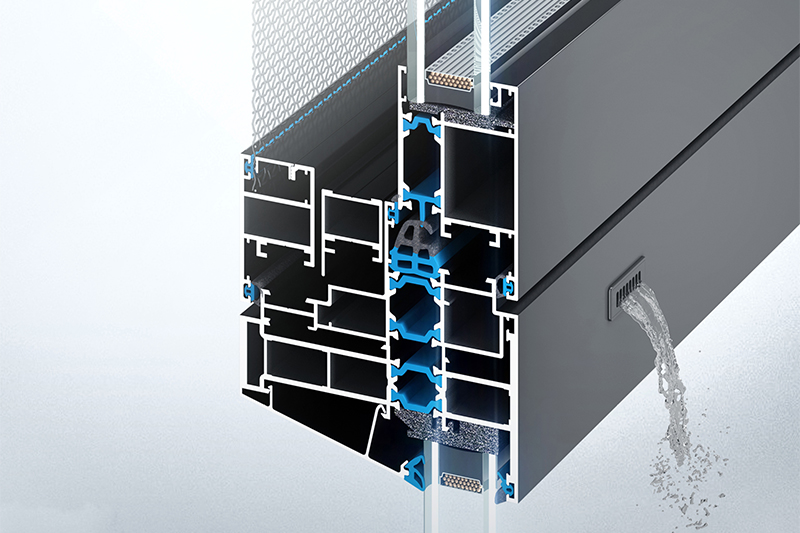

Floor drain drainage design
■ Drainage quickly, comfortable and reassuring.
■ The floor drain drainage structure design is adopted, and the self weight principle of water is effectively used to make the drainage more smooth and prevent rainwater from flowing back. The rainwater can be quickly discharged out of the room without fearing of the storm.
Product parameters
Thickness |
3.0mm |
Width of frame |
110mm |
Sash |
75mm |
Fly screen |
34mm |
Insulating glass |
5+20A+5 |
The thickness of profile |
3.0mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
with Aksu metal powder coating, the thickness of the painting layer can be 35-40UM |
Standard accessories |
with a complete set of American brand Himek full system, handle without a base |
Standard glass |
with Xinyi brand insulating tempered glass 5+20A+5, to fix both the inner and outer side of the glass without glue |
Sealing strip |
EPDM sealing. |
Production process |
both the main frame and the sash adopt the glue corner brace processing, flat frame for inner and outer side, obvious drainage. |
Glass crimping |
have bevel edge crimping and square crimping for choice, in order to fix the customer’s requirement. |
Insulating strip |
PA66 Nylon insulation, all the thermal insulation strips are designed on the same isotherm. |
Applicable places |
self-built houses, clubs, hotels, office buildings, mid to high residential community, villas, and balconies. |
01 metallic platinum gray
02 starry coffee
03 dark grey
04 light grey
05 Champagne grey
06 silky black\matt black
07 silky white
08 Coffee brown
Product performance
sound insulation and noise reduction: level 4
thermal insulation: level 5
seal and water proof: level 6
air tightness performance: level 8
