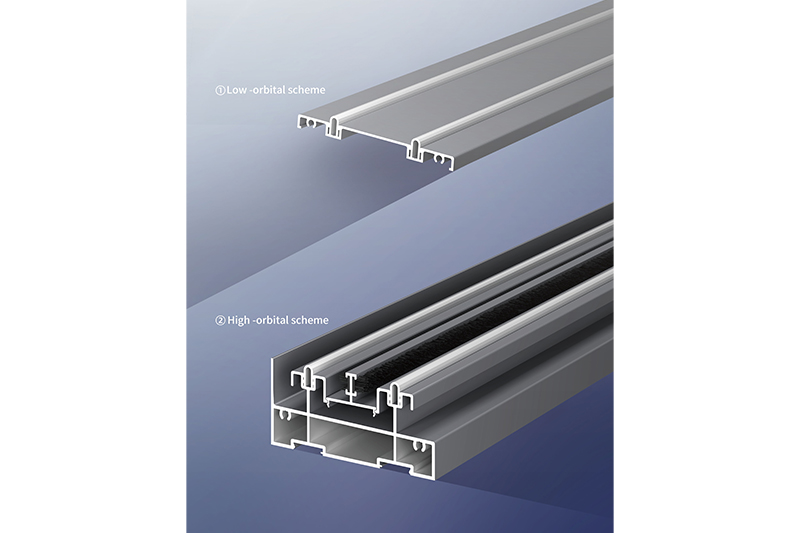

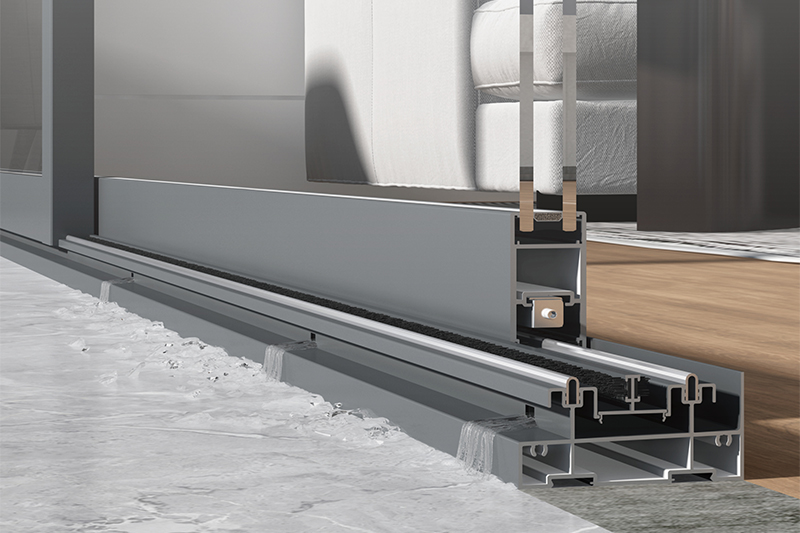

High and low rail drop type drainage
■ Drains quickly · doesn't leave a drop of water.
■ The unique high and low track design prevents rainwater from backing up, drains more smoothly, and keeps the indoor environment comfortable and clean.

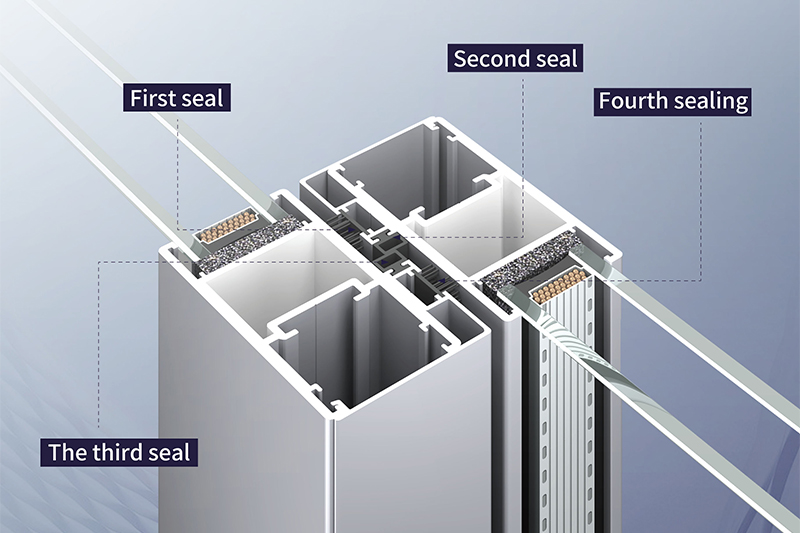

Hook enterprise four-way sealing structure
■ Improve sound insulation and airtightness ·
■ The installation of sealing strips between hooks and enterprises can effectively improve the sealing and sound insulation ability, and can reduce the noise caused by collisions and damage to the door leaf when closing.

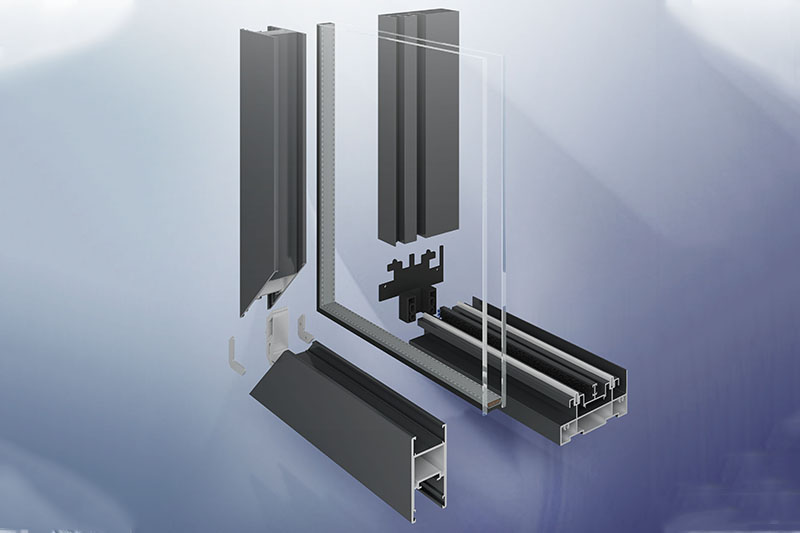

Stable frame connection process
■ Super wind resistance and stable · structure.
■ The frame is blocked by a special waterproof paste + special process, and the 45-degree high-strength corner code connection of the door leaf comprehensively improves the frame strength and sealing performance of the whole door.

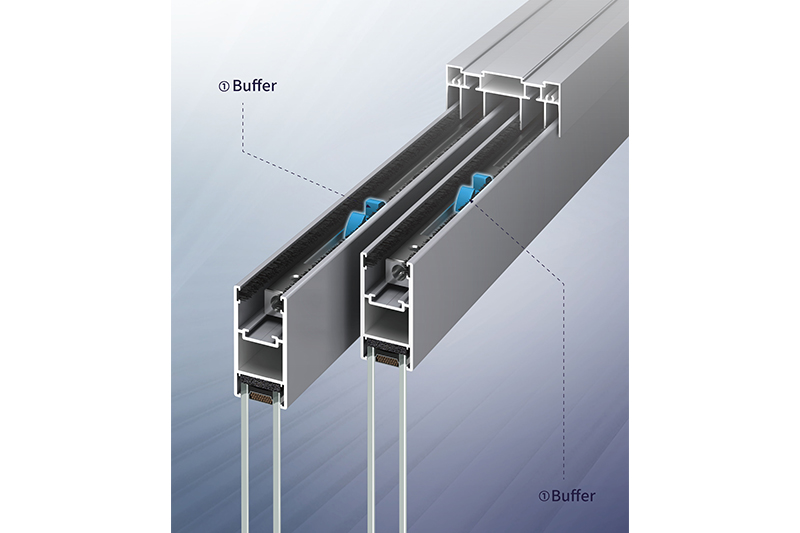

Design of buffer damping system
■ Humanized design and · home safety.
■ Cushioning the impact of the door leaf can reduce the noise caused by the door closing, and when the door leaf is about to reach the side panel, it will automatically slow down and close without the door rebounding, so as to avoid hand pinching.
Compatible with inner and outer doors
■ Variety of Choices· smooth pushing and pulling.
■ With a variety of track designs and high-precision 304 stainless steel guide rails, the sliding is smooth and noiseless, which can meet the barrier-free passage needs of indoor doors and waterproof sealing needs of outdoor doors at the same time.

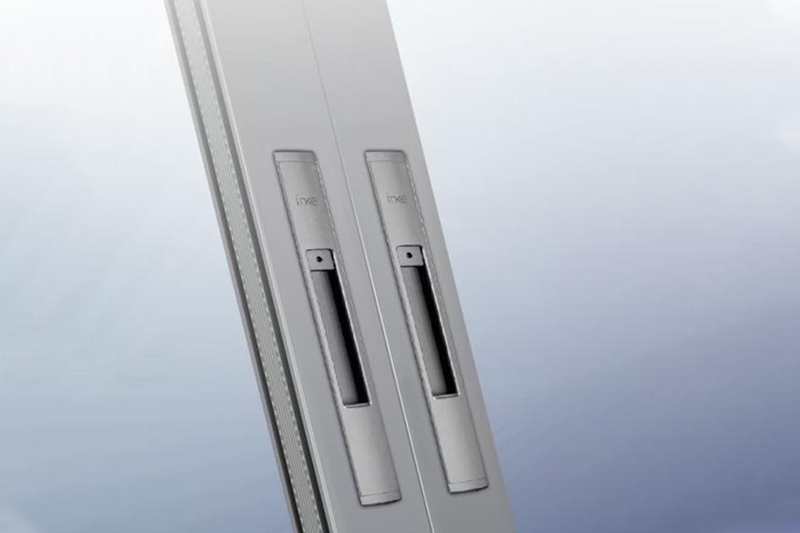

High quality hardware system accessories
■ Simple and unique, · stylish and generou.
■ The process is exquisite, fashionable and atmospheric, with high anti-corrosion performance, and the surface is anodized or sprayed, and the feel is smooth and delicate.
Product parameters
Thickness of the connecting part: 2.0mm |
Insulating glass: 4+15A+4 |
Thickness of frame: 2.0mm |
Visual surface of the connecting part: 35*65mm |
Depth of frame: two rails 88mm / three rails 135mm |
Color: metallic platinum gray, starry coffee, black, moonlight gray |
Product parameters
The thickness of profile |
2.0mm, the XS original ecological aluminium T5-6063A |
Surface treatment |
metal powder coating, the thickness of the painting layer can be 35-40UM |
Hardware accessories |
with CIVO own design hardware handle |
Standard glass |
standard with Xinyi brand insulating tempered glass 4+15A+4 |
Sealing strip |
EPDM sealing. |
Production process |
with embedded overall frame, the door sash adopts a 45-degree angle, a stable structure. |
Standard mesh |
comes with standard 07#304 stainless steel diamond mesh, which has a 90 degree bending and tightening process. |
Rail customization |
have two rails, three rails with mesh, high and low rails, low rails, and copper strips for choice. |
Style

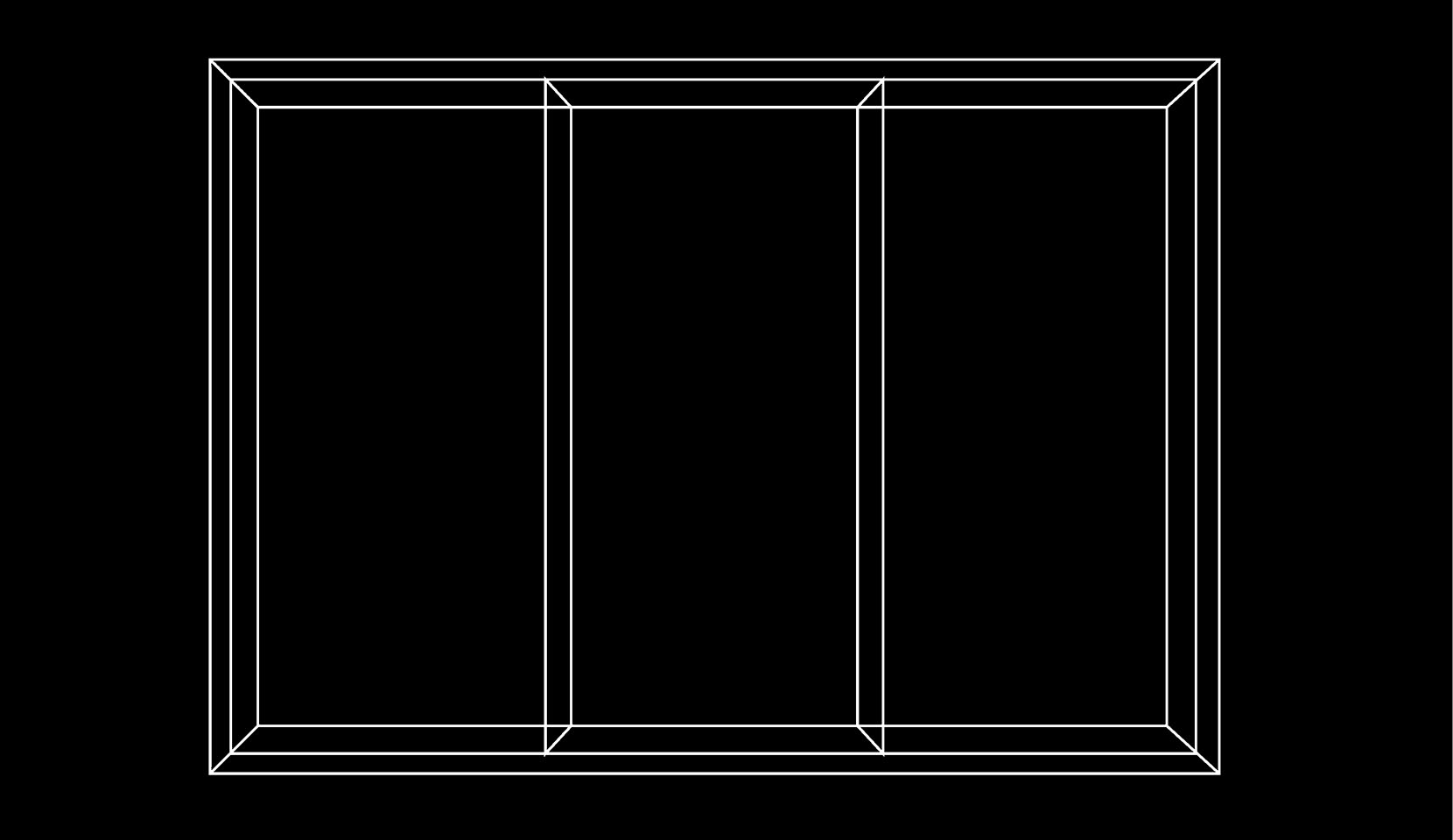

Three rails

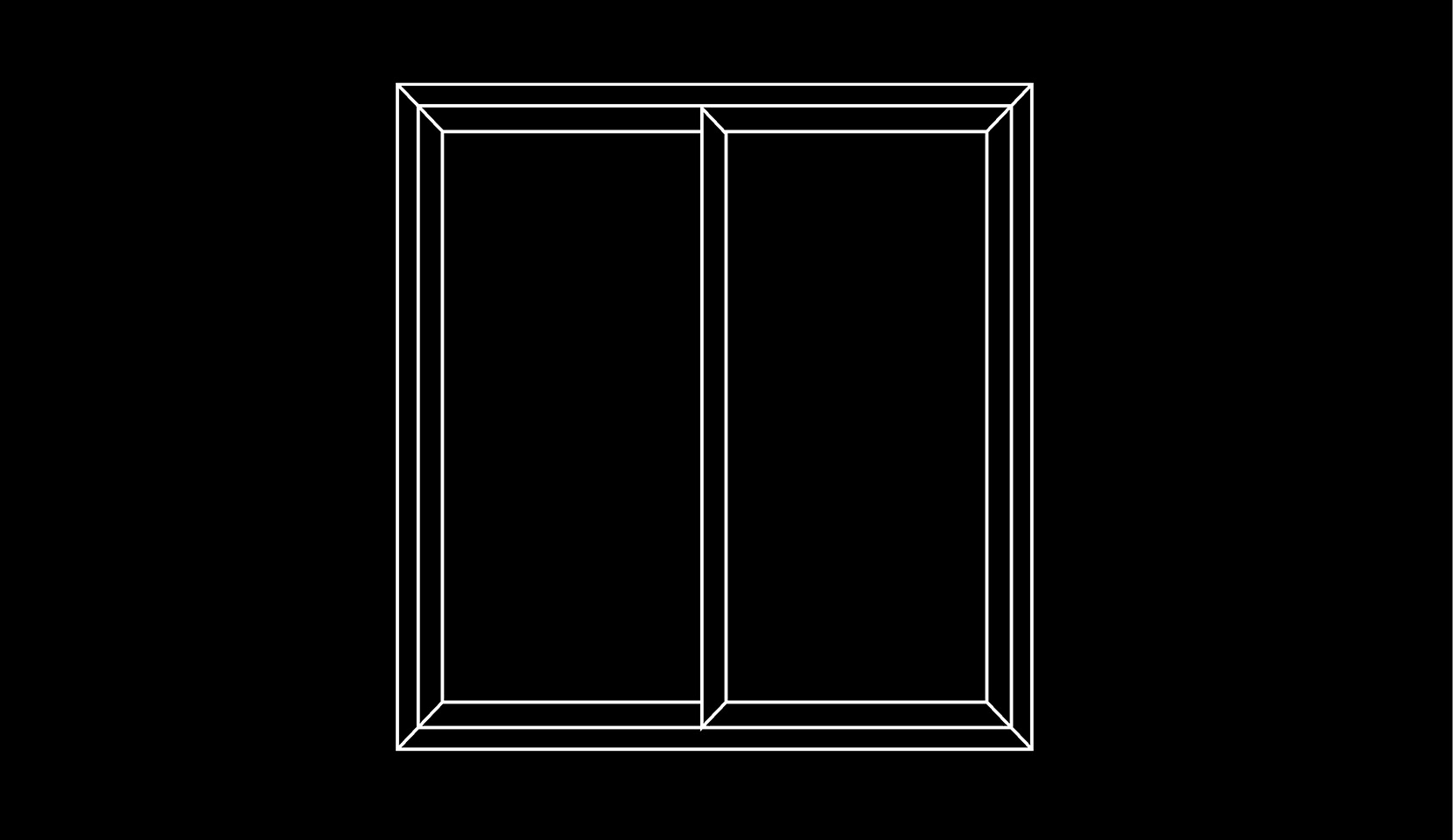

Two rails sliding door
01 Porcelain Swimming Gray
02 black
03 ivory white
04 metallic platinum gray
05 dark grey
06 light grey
07 Champagne grey
08 silky black\matt black
09 silky white
